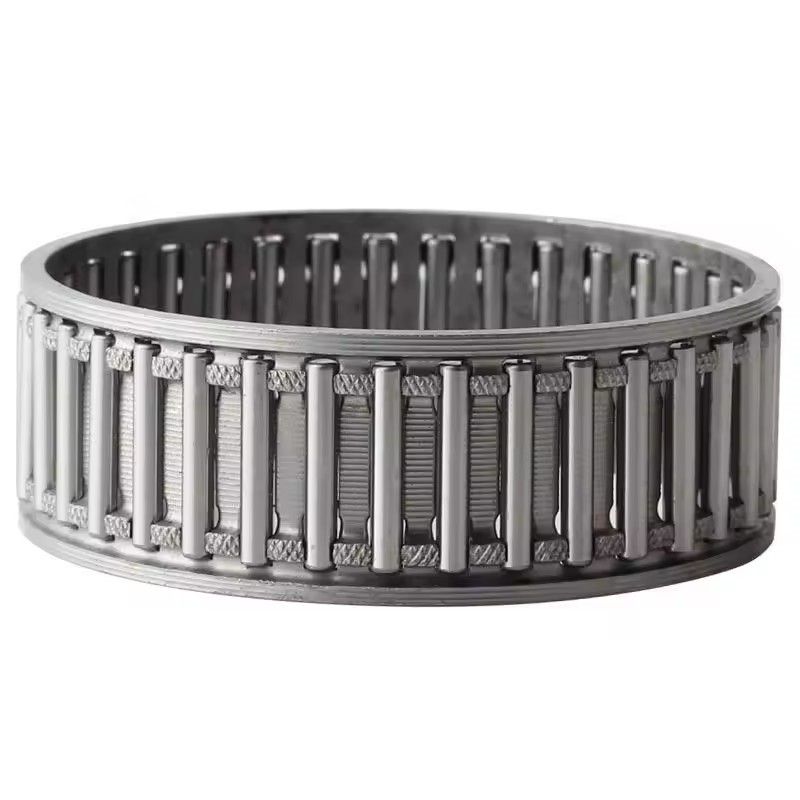

K10x14x10TN Cage Needle Bearing Cage Assembly Single Row High Speed Low Noise

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: K10x14x10TN

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Single Row Cage Needle Bearing

,

High Speed Cage Needle Bearing

,

Low Noise Cage Needle Bearing

Number Of Row:
Single Row
Type:
Needle
Feature:
High Speed Low Noise
Precision Rating:
P0,P4,P6
Seals Type:
Open
Number Of Row:
Single Row
Type:
Needle
Feature:
High Speed Low Noise
Precision Rating:
P0,P4,P6
Seals Type:
Open
K10x14x10TN Cage Needle Bearing Cage Assembly Single Row High Speed Low Noise

Needle Roller Bearing K10x14x10TN Cage needle bearing K10x14x10TN



Needle roller bearings with cylindrical roller bearings,relative to its diameter, roller is fine and long. This is called needle roller. Although it has a small section, the load bearing capacity of bearing still had high, with thin and long needle bearing roller, so the radial structure is compact, compered with the other bearings,the size of the inner diameter and load capacity is the same.and its has the minimum size of outside diameter, especially for supporting structure of radial installation size restricted.



SPECIAL NOTES

• HFL series has two integral radial bearings arranged on both sides of needle roller clutch. They can therefore support radial forces in particularly space-saving bearing arrangements.
• Plastic springs (HFL...KF) are available for some sizes.
• Partially knurled outer ring (HFL...R) is available upon request.
• A special tool is suggested when assembling the clutch and bearing assembly. For details please contact our engineers.
• Only after the clutch and bearing assembly has been pressed into the hole of the housing, the drawn thin-walled outer ring could then obtain its final dimension and geometric accuracy.
• The transmissible torque and the stresses which can be taken by the housing are subject to the material and the wall thickness of the housing, and such data is needed upon enquiry.
• The clutch and bearing assembly can be normally used in temperature range from -30°C to 120°C. For the working environment above 70°C, oil lubrication is recommended.







Bearing Designation Main Dimensions Basic Rated Load Limited speed
Fw Ew Bc Co Min-1
K3x5x7TN 3 5 7   1540 1290 50000
K4x7x7TN 4 7 7   1740 1270 43000
K4x7x10TN 4   10   2330 1840 43000
K5x8x8TN 5 8 8   2350 1920 39000
K6x9x10TN 6 9 10   3350 3150 37000
K6x10x13TN 6 10 13   3800 3100 35000
K7x10x8TN 7 10 8   2850 2650 34000
K8x11x10TN 8 11 10   3950 4100 32000
K8x12x10TN 8 12 10   5000 4700 32000
K9x12x10TN 9 12 10   4500 5000 31000
K10x13x10TN 10 13 10   4750 5500 29000
K10x14x10TN 10 14 10   5800 6000 29000
K10x16x12TN 10 16 12   8100 7200 28000
K12x15x10TN 12 15 10   4900 6100 27000
K12x16x13TN 12 16 13   8000 9400 27000
K12x18x12TN 12 18 12   10000 9900 26000
K14x18x15 14 18 15   10400 13900 25000
K14x20x13 14 20 12   10300 10600 24000
K15x19x10 15 19 10   7500 9200 24000
K15x21x15 15 21 15   14300 16400 24000
K16x20x10 16 20 10   7800 9900 24000
K16x22x12 16 22 12   11500 12500 23000
K17x21x10 17 21 10   8100 10600 23000
K18x22x10 18 22 10   8400 11300 24000
K18x24x12 18 24 12   11700 13300 22000
K19x23x17 19 23 17   12500 19200 22000
K20x26x12 20 26 12   13400 16200 21000
K20x28x20 20 28 20   23900 28500 20000
K21x25x13 21 25 13   10100 15100 21000
K22x26x10 22 26 10   9100 13400 20000
K24x28x13 24 28 13   11000 17600 19000
K25x29x13 25 29 13   11300 18400 18000





have many designs and sizes to match their widely uses: NA series / K series / RNA series / RNAOL series / NUTR series / RNAO series / NAOL series / NAL series / NAVP series / KBK series / STO series / F series / HK series / KNL series.
