Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 7338BDB
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Color: |
Black |
Structure: |
Angular Contact |
Type: |
Ball |
Sample: |
Avaliable, Offered, Free |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |
Color: |
Black |
Structure: |
Angular Contact |
Type: |
Ball |
Sample: |
Avaliable, Offered, Free |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |

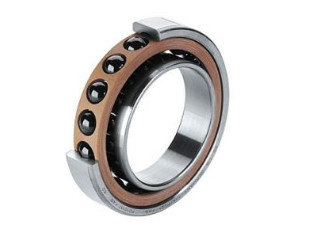

Angular contact ball Bearing 7338BDB
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis.This means that they are designed to accommodate combined loads,i.e.simultaneously acting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane,along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Feature of Angular contact ball bearing:
Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preloads and coatings for additional corrosion resistance.
Applications of Angular contact ball bearing:
electric motors, automotive applications, home appliances, industrial equipment.
Types of Angular contact ball bearing:
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:

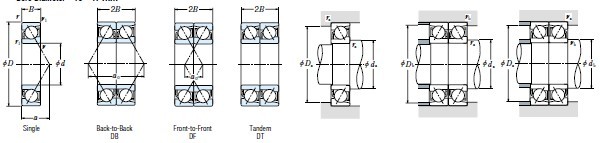

1. Single-row angular contact ball bearings
Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.
2. Double-row angular contact ball bearings
This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.
3. Four-point angular contact ball bearings
The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.
