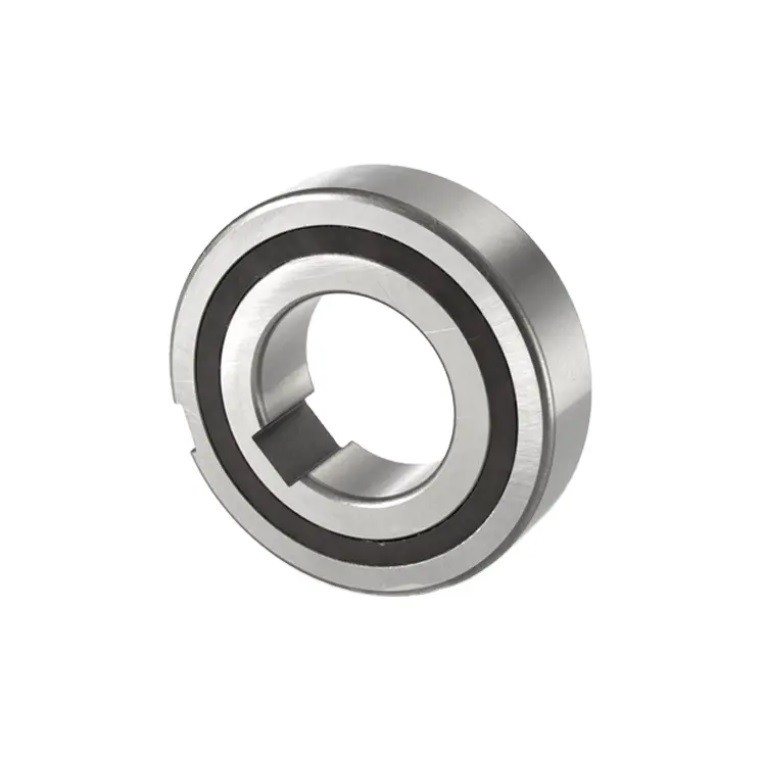

CSK15PP Chrome Steel Conveyors One Way Bearings For Textile Machinery

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: CSK15PP

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 30-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Chrome Steel One Way Bearings

,

Textile Machinery One Way Bearings

,

Csk15pp One Way Bearings

Material:
Chrome Steel
Color:
Black
Samples:
Available
Product Name:
One Way Clutch
Bore Size:
19-30mm
Number Of Row:
Single Row
Material:
Chrome Steel
Color:
Black
Samples:
Available
Product Name:
One Way Clutch
Bore Size:
19-30mm
Number Of Row:
Single Row
CSK15PP Chrome Steel Conveyors One Way Bearings For Textile Machinery



CSK 15 One Way Clutch Bearing for Textile machinery



Description of CSK One Way Clutch Bearing:

The CSK One Way Bearing Series is a sprag type freewheel integrated into the 6200 radial bearing series. The internal part of the bearing is protected by a seal but additional seals are recommended especially when the working temperature exceeds 50ºC. All CSK One Way Bearings are equipped with chrome formed sprags that increases the over-run life several times. Torque transmission is ensured by a press fit assembly into a rigid outer housing and onto a shaft with an N6 tolerance. Initial bearing radial clearance is set at C5 and is reduced if using the press fit as specified.



The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. In addition to the basic CSK model, type CSK..P features a keyway on the inner race and CSK..PP features a keyway on both the inner and outer race. For this reason it can be keyed to a shaft.

Dimension of CSK One Way Clutch Bearing:

Model number Dimension (mm) W.G(Kg) dimension (mm)
ID OD T H h d1 D1
CSK8 8 22 9 0.015 3 3 8.5 21.5
CSK12 12 32 10 0.04 2 4 13.2 31.4
CSK15 15 35 11 0.05 2 5 16.2 34.4
CSK17 17 40 12 0.07 2 5 18.2 39
CSK20 20 47 14 0.11 3 6 21.6 45.5
CSK25 25 52 15 0.14 6 8 27 50
CSK30 30 62 16 0.21 6 8 32 60
CSK35 35 72 17 0.3 8 10 37.4 69.5
CSK40 40 80 22 0.5 10 12 43.2 77
CSK305 25 62 17 0.25 6 8 27 60
CSK306 30 72 19 0.38 6 8 32 69.5
CSK12-2RS 12 32 14 0.05 2 4 13.2 31.4
CSK15-2RS 15 35 16 0.07 2 5 16.2 34.4
CSK17-2RS 17 40 17 0.09 2 5 18.2 39
CSK20-2RS 20 47 19 0.145 3 6 21.6 45.5
CSK25-2RS 25 52 20 0.175 6 8 27 50
CSK30-2RS 30 62 21 0.27 6 8 32 60
CSK35-2RS 35 72 22 0.4 8 10 37.4 69.5
CSK40-2RS 40 80 27 0.6 10 12 43.2 77

CSK15PP Chrome Steel Conveyors One Way Bearings For Textile Machinery 0

CSK15PP Chrome Steel Conveyors One Way Bearings For Textile Machinery 1

CSK15PP Chrome Steel Conveyors One Way Bearings For Textile Machinery 2

Application of CSK One Way Clutch Bearing:



CSK series one way (direction) bearing consists of a standard ball bearing, in-built special snap block and cage, widely used in mining machinery, washing machine, hydraulic machinery, printing machines, textile machinery, conveyor systems.
Freewheel-Clutches - Examples
Important applications
conveyers (back stopping)
conveyers (speed compensation)
copiers (paper feeding)
furniture production (glue roller drive)
high voltage switches
mixers (safety clutch)
