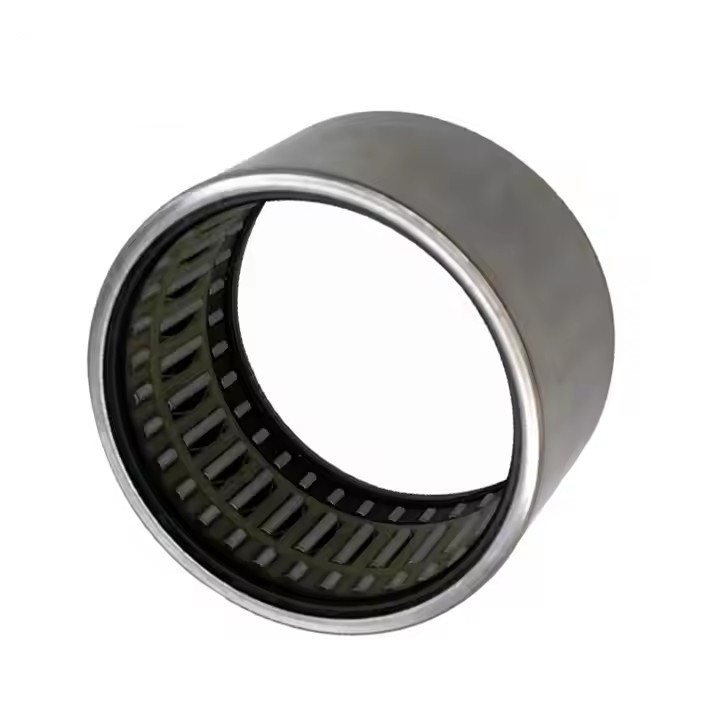

Name: HFL1022 HFL 1022 KFR Drawn Cup Three Row Needle Roller Clutch Bearing
Brand: Shaanxi Fortune Industries Co.ltd
SKU: HFL1022
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SFT

Model Number: HFL1022

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: 1-50USD/PC

Packaging Details: neutral

Delivery Time: 45 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                HFL1022 Needle Roller Clutch Bearing, Three Row Needle Roller Clutch Bearing, KFR Needle Roller Clutch Bearing


Shaft Dia.:	10mm	Bore Size:	10 - 10.001 Mm
Driving Torgue:	4.83Nm	Type:	Needle
Weight:	8g	Number Of Row:	Double Row

Shaft Dia.:	10mm
Bore Size:	10 - 10.001 Mm
Driving Torgue:	4.83Nm
Type:	Needle
Weight:	8g
Number Of Row:	Double Row

HFL1022 HFL 1022 KFR Drawn Cup Three Row Needle Roller Clutch Bearing

HFL1022KFR Drawn Cup Three Row Needle Roller Clutch Bearing

Product Description

HFL1022 HFL 1022 KFR Drawn Cup Three Row Needle Roller Clutch Bearing

Structure of one-way needle roller Clutch bearing :

Metric size	Inch size	Marks
HFL	FCB	steel spring
HFL..KF	RCB	plastic spring
HFL..R		steel spring and knurls on outer ring
HFL..KFR		plastic spring and knurls on outer ring

Speciification of one way needle roller bearing

Product name	bearing needle roller
Model	HFL1022KFR
Material	ST14
Torque capacity	1.5Nm
Inner diameter	10mm
Outer diameter	14mm
Height	22mm
Weight	8g
Structure	Needle roller bearing
Application	Light industry, truckle, printing, textile, packing machinery
Package	Wooden box, tube, pulley, etc
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Catalogue of one-way clutch bearing for your choice

Shaft Dia.	Clutch Designation		Mass	Borndary Dimensions			Torque	Limiting Speed		Basic Load Ratings


				Fw	D	C		Shaft Rotating	Rotatng Outer Ring	C	Co
								Shaft Rotating	Rotatng Outer Ring	C	Co
								Min-1	Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
3	HFL0308KF	--	3	3	3.6	8	1	--	--	--	--
4	HFL0408KF	--	3.5	4	8	8	1.5	--	--	--	--
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	--	--
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	--	--
	--	HFL061012K	5	6	10	12	--	21000	12000	--	--
8	--	HFL081212K	6	8	12	12	--	20000	12000	--	--
	--	HFL081412K	7	8	14	12	--	19000	12000	--	--
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	--	--
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	--	--
12	--	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	--	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	--	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	--	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	--	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	--	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1
36		HFL283625			36
30	--	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
35	--	HFL3530	58	35	42	30	121	3900	3900	13	19.3
