Name: 1WC1216 One Way Needle Clutch Bearings for Fishing Reels
Brand: Shaanxi Fortune Industries Co.ltd
SKU: 1WC1216
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SFT

Model Number: 1WC1216

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: 1-50USD/PC

Packaging Details: neutral

Delivery Time: 45 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                One Way Needle Clutch Bearings, Fishing Reels Needle Clutch Bearings, 1WC1216 Needle Clutch Bearings


Inner Dia.:	20mm	Outer Dia.:	26mm
Shaft Diameter:	12mm	Type:	Needle
Height:	16mm	Seals Type:	Non Sealed

Inner Dia.:	20mm
Outer Dia.:	26mm
Shaft Diameter:	12mm
Type:	Needle
Height:	16mm
Seals Type:	Non Sealed

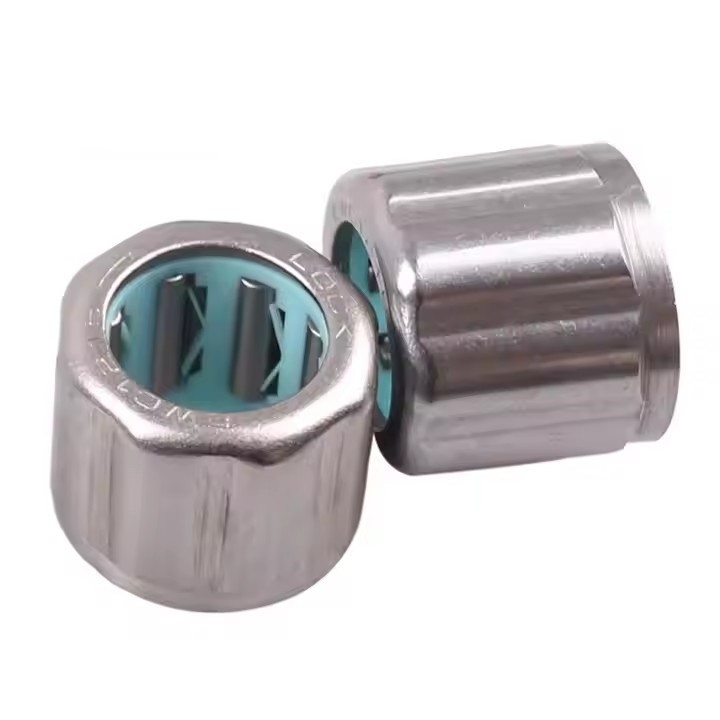

1WC1216 One Way Needle Clutch Bearings for Fishing Reels

1WC1216 One Way Needle Clutch Bearings for Fishing Reels

Product Description

Features of 1WC1216 one way bearings

EWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and

make the structure more compact as well as higher performance.

Product name	EWC One way bearings
Model	1WC1216
Material	Outer ring: ST14, Shelf strength: nylon
Shaft diameter	12mm
Outer diameter	19mm
Thickness	16mm
Torque capacity	7.3Nm
Weight	13g
Package	Plastic Bags + Carton Box

Catalogue of ewc One way bearings for your choice

1WC1216 One Way Needle Clutch Bearings for Fishing Reels

Shaft Dia.	Model	Weight	DIMENSION			Torque Capacity
MM		g	Inner Dia. FW	Outer Dia.	Height	(N.m)	(kgf.cm)
		g	Inner Dia. FW	D1-D2	B	(N.m)	(kgf.cm)
4	EWC0406	1.2	4	8-8.4	6	0.08	0.8
4	1WC0406	1.5	4	8-8.4	6	0.15	1.5
6	EWC0606	2	6	8-8.4	6	0.19	1.9
	1WC0606	2.2	6	8-8.4	6	0.33	3.5
	EWC0608	2.2	6	10-10.4	8	0.25	2.5
	1WC0608	2.5	6	10-10.4	8	0.45	4.5
	1WC0612	3	6	10-10.4	12	0.9	9.5
8	EWC088.5	2.5	8	12-12.4	8.5	0.5	5.5
	EWC0809	2.5	8	12-12.4	9	0.88	9
	EWC0812	5.5	8	14.2-15	12	1.18	12
	1WC0812	6	8	14.2-15	12	1.96	20
	1WC0815	8	8	14.2-15	15	2.65	27
10	EWC1007	7	10	16-17	7	1.2	10
	EWC1008	8	10	16-17	8	1.85	19
	1WC1009	8.5	10	14-14.4	9	2.25	23
	EWC1010	8	10	16-17	10	1.18	12
	1WC1010	9	10	16-17	10	1.98	20
	EWC1012	10	10	16-17	12	1.37	14
	1WC1012	11	10	16-17	12	2.35	24
12	EWC1209	10	12	18-19	9	3.04	31
	EWC1216	12	12	18-19	16	6.29	64
	1WC1216	13	12	18-19	16	7.3	75
