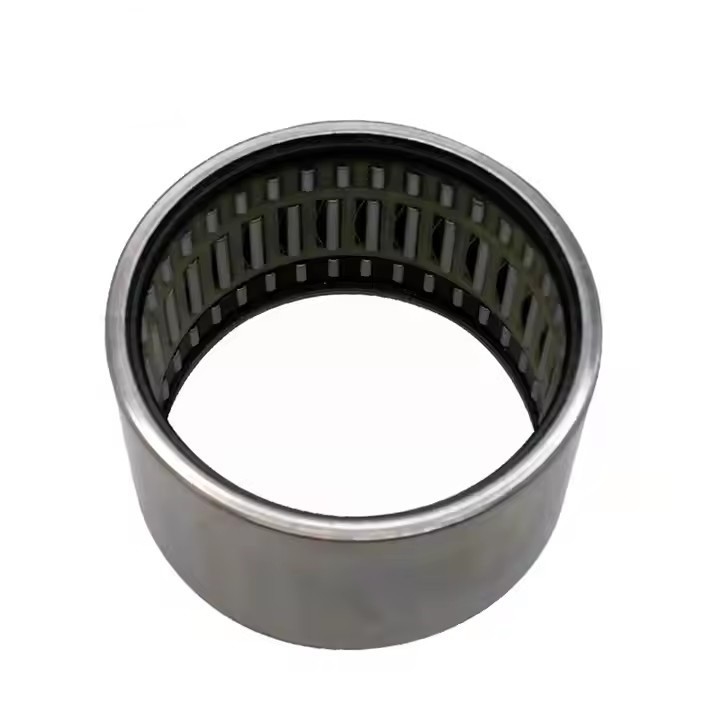

Name: HFL3530 One Way Drawn Cup Clutch Needle Roller Bearing HFL 3530
Brand: Shaanxi Fortune Industries Co.ltd
SKU: HFL 3530
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SFT

Model Number: HFL 3530

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: 1-50USD/PC

Packaging Details: neutral

Delivery Time: 45 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                HFL3530 Needle Roller Bearing, HFL3530 Drawn Cup Needle Roller Bearing


Inner Dia.:	40 Mm	Outer Dia.:	47 Mm
Shaft Diameter:	30mm	Type:	Needle
Weight:	51g	Seals Type:	Non Sealed

Inner Dia.:	40 Mm
Outer Dia.:	47 Mm
Shaft Diameter:	30mm
Type:	Needle
Weight:	51g
Seals Type:	Non Sealed

HFL3530 One Way Drawn Cup Clutch Needle Roller Bearing HFL 3530

HFL3530 Printing Machinery Bearing Needle Roller Bearing HFL 3530

Product Description

HFL3530 One Way Drawn Cup Clutch Needle Roller Bearing HFL 3530

Structure of needle clutch bearing :

Product name	Bearing needle roller
Model	HFL3530
Material	ST14
Torque capacity	121Nm
Inner diameter	35mm
Outer diameter	42mm
Height	30mm
Weight	58g
Application	Light industry, truckle, printing, textile, packing machinery
Package	Roll + Carton Box + Wooden Pallet
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Parameter of needle clutch bearing for your choice

Shaft Dia.	Clutch Designation		Mass	Borndary Dimensions			Torque	Limiting Speed		Basic Load Ratings


				Fw	D	C		Shaft Rotating	Rotatng Outer Ring	C	Co
								Shaft Rotating	Rotatng Outer Ring	C	Co
								Min-1	Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
3	HFL0308KF	--	3	3	3.6	8	1	--	--	--	--
4	HFL0408KF	--	3.5	4	8	8	1.5	--	--	--	--
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	--	--
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	--	--
	--	HFL061012K	5	6	10	12	--	21000	12000	--	--
8	--	HFL081212K	6	8	12	12	--	20000	12000	--	--
	--	HFL081412K	7	8	14	12	--	19000	12000	--	--
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	--	--
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	--	--
12	--	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	--	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	--	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	--	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	--	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	--	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1
30	--	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
35	--	HFL3530	58	35	42	30	121	3900	3900	13	19.3
