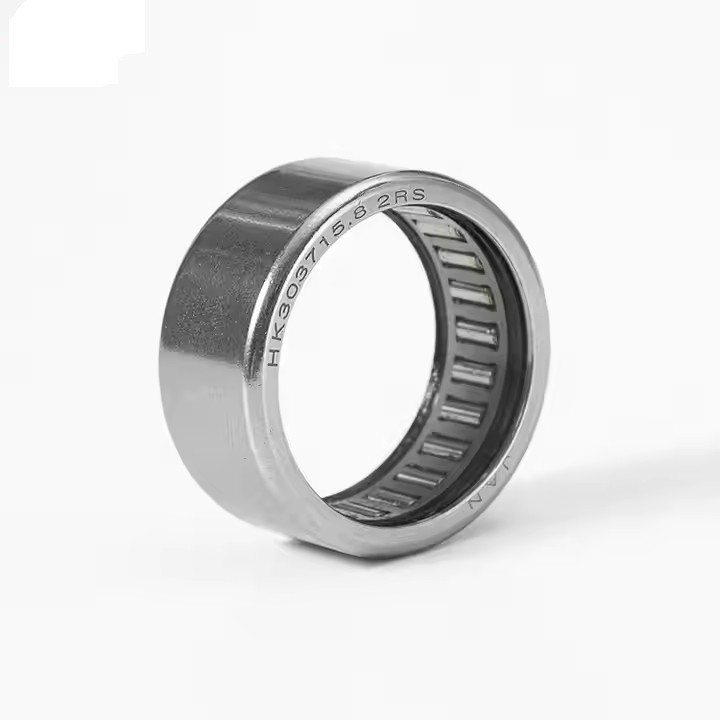

HK Series HK3020 BK3020 Open End / Close End Drawn Cup Needle Roller Bearings

Name: HK Series HK3020 BK3020 Open End / Close End Drawn Cup Needle Roller Bearings
Brand: Shaanxi Fortune Industries Co.ltd
SKU: HK3020 BK3020
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SFT

Model Number: HK3020 BK3020

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: 1-50USD/PC

Packaging Details: neutral

Delivery Time: 45 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Close End Needle Roller Bearings, Drawn Cup Needle Roller Bearings, HK Series HK3020 Needle Roller Bearings


Shaft Dia:	30mm	Thickness:	20mm
Number Of Row:	Single Row	Driving Torgue:	54Nm
Weight:	58g	Seal Type:	Non-sealed

Shaft Dia:	30mm
Thickness:	20mm
Number Of Row:	Single Row
Driving Torgue:	54Nm
Weight:	58g
Seal Type:	Non-sealed

HK Series HK3020 BK3020 Open End / Close End Drawn Cup Needle Roller Bearings

Product Description

Features of hk one way needle bearing

HK is a one way needle clutch which applied flexibly of the technology of small bearings ,and

make the structure more compact as well as higher performance.

Material of hk one way needle bearing

Outer ring: is made by sintered metal

Spring: is made by stainless steel

Catalogue of hk one way needle bearing for your choice

Drawn cup needle roller Bearings
Bearing Designation		Boundary Dimensions			Basic Load Ratings		Limiting Speed
HK	BK	Fw	D	C	Cr Dynamic	Cor Static	Oil
HK	BK	mm	mm	mm	Nm	Nm	Oil
HK0306TN	BK0306TN	3	6.5	6	1320	950	60000
HK0408TN	BK0408TN	4	8	8	1540	1070	40000
HK0509	BK0509	5	9	9	2200	1790	36000
HK0608	-	6	10	8	1830	1550	32000
HK0609	BK0609	6	10	9	2650	2400	3000
HK0708	-	7	11	8	2800	2150	27000
HK0709	BK0709	7	11	9	2800	2150	27000
HK0808	BK0808	8	12	8	2550	2400	21000
HK0810	BK0810	8	12	10	3700	3450	21000
HK08×14×10	-	8	14	10	3800	3950	25000
HK08×14×12	-	8	14	12	4100	4320	25000
HK0910	BK0910	9	13	10	4050	4250	25000
HK0912	-	9	13	12	5000	6000	25000
HK1010	BK1010	10	14	10	3900	4800	19000
HK1012	BK1012	10	14	10	5000	6300	19000
HK1015	-	10	14	15	6700	7800	19000
HK10×16×10	-	10	16	10	6800	8800	18000
HK10×16×12	-	10	16	12	6800	8800	18000
HK10×16×15	-	10	16	15	6800	8800	19000
HK1210	BK1210	12	16	10	4150	5800	19000
HK1212	BK1212	12	18	12	3800	5100	15000
HK12×17×12	-	12	17	12	5100	7000	15000
HK12×17×15	-	12	17	15	5100	7000	15000
HK12×17×18	-	12	17	18	5100	7000	15000
HK12×18×12	BK12×18×12	12	18	12	550	6300	17000
HK1312	BK1312	13	19	12	6200	7100	17000
HK13.5×20×12	-	13.5	20	12	6250	7590	16000
HK1412	-	14	20	12	6800	7500	14000
HK1416	-	14	20	16	7300	9000	14000
HK15×20×12	-	15	20	12	5800	6000	14000
HK15×20×16	-	15	20	16	6000	6200	14000
HK15×20×20	-	15	20	20	6100	6400	14000
HK1512	BK1512	15	21	12	7000	8400	14000
HK1514	-	15	21	14	8500	10400	13000
HK1515	-	15	21	15	9100	11400	13000
HK1516	BK1516	15	21	16	9800	11400	14000
HK1522	-	15	21	22	10400	16500	14000
HK15×22×12	-	15	22	12	14300	18400	13000
HK1612	BK1612	16	22	12	7100	9200	14000
HK1614	-	16	22	14	8800	9900	12000
HK1616	BK1616	16	22	16	10100	14300	14000
HK1622	-	16	22	22	11100	17400	14000
HK1712	-	17	23	12	6900	9300	13000
HK1714	-	17	23	14	6800	10200	10000
HK1716	-	17	23	16	8500	12500	10000
HK1718	-	17	23	18	9500	10600	10000
HK17×25×14	-	17	25	14	13100	147000	10000
HK17×25×18	-	17	25	18	9500	10600	11000
HK1812	-	18	24	12	7100	9900	12000
HK1816	BK1816	18	24	16	10600	15300	12000
HK2010	-	20	26	10	5900	7200	10000
HK2014	-	20	26	14	9700	18100	9000
HK2016	BK2016	20	26	16	11700	29100	10000
HK2018	-	20	26	18	7900	12800	9000
HK2020	-	20	26	20	13700	24000	10000
HK2030	-	20	26	30	21800	40000	10100
HK20×27×20	-	20	27	20	26300	47800	9900
HK2210	-	22	28	10	7200	9500	10010
HK2212	BK2212	22	28	12	8100	10400	10010
HK22×29×30	-	22	29	30	19400	33100	9000
HK2512	BK2512	25	32	12	10000	14200	9000
HK2525	BK2525	25	32	25	22200	36700	9000
HK2816	BK2816	28	35	16	15400	22500	8700
HK2820	BK2820	28	35	20	18900	32000	8700
HK3012	BK3012	30	37	12	10100	16200	8100
HK3020	BK3020	30	37	20	19700	33500	8100
HK3224	-	32	39	24	25500	5200	7300
HK3516	BK3516	35	42	16	15700	27500	7100
HK4012	BK4012	40	47	12	14000	24300	6300
HK4512	BK4512	45	52	12	12900	22500	5800
HK5020	BK5020	50	58	20	28000	60000	5300
HK6012	BK6012	60	68	12	12400	29000	4100
