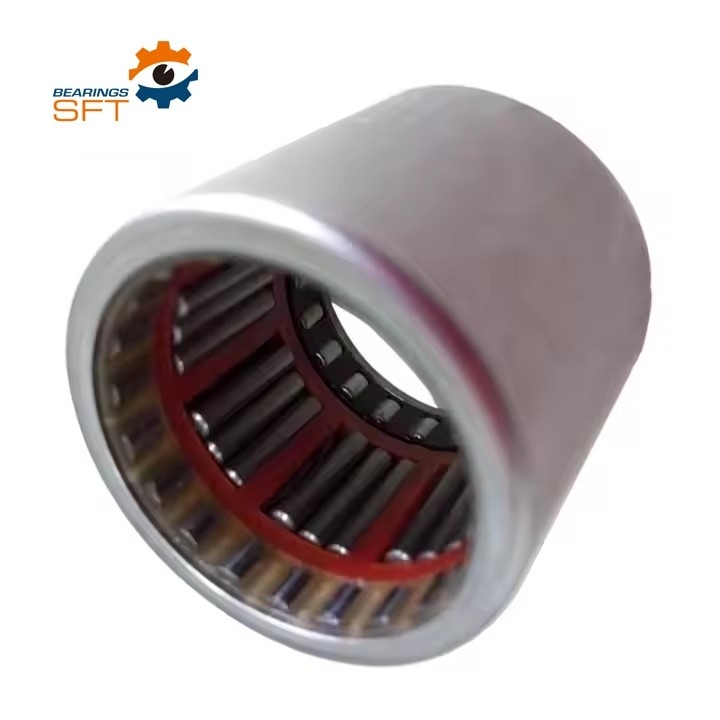

Name: RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
Brand: Shaanxi Fortune Industries Co.ltd
SKU: RCB 061014
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SFT

Model Number: RCB 061014

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: 1-50USD/PC

Packaging Details: neutral

Delivery Time: 45 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                RCB061014 Drawn Cup Needle Bearing, RCB061014 Single Direction Clutch Needle Bearing


Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining	Product Name:	RC One Way Needle Bearing
Inner Diameter:	9.525mm	Outer Diameter:	15.875mm
Thickness:	22.22mm	Torque Capacity:	4.83Nm
Material:	ST14	Weight:	12g

Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining
Product Name:	RC One Way Needle Bearing
Inner Diameter:	9.525mm
Outer Diameter:	15.875mm
Thickness:	22.22mm
Torque Capacity:	4.83Nm
Material:	ST14
Weight:	12g

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Product Description

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 0

Features of RC Needle roller bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

Catalogue of RC needle roller bearing for your choice

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 1

Bearing Designation	Mass Approx	Designation
	Mass Approx	Fw	D	C	Torque
	g	mm			Nm
RC02	2	3.175	7.15	6.35	0.32
RC040708	3.5	6.35	11.112	12.7	2.03
RC040708-FS	3.5	6.35	11.112	12.7	2.03
RC061008	4.7	9.525	15.875	12.7	5.45
RC061008-FC	4.7	9.525	15.875	12.7	5.45
RC081208	9.2	12.7	19.05	12.7	8.84
RC081208-FS	9.2	12.7	19.05	12.7	8.84
RC101410	14.5	15.875	22.225	15.88	16.9
RC101410-FC	14.5	15.875	22.225	15.88	16.9
RC121610	16.2	19.05	25.4	15.88	23.3
RC121610-FS	16.2	19.05	25.4	15.88	23.3
RC162110	17	25.4	33.338	15.88	49.6
RC162110-FC	17	25.4	33.338	15.88	49.6
RCB061014	12	9.525	15.875	22.22	4.83
RCB061014-FS	12	9.525	15.875	22.22	4.83
RCB081214	16	12.7	19.05	22.22	7.9
RCB081214-FC	16	12.7	19.05	22.22	7.9
RCB101416	21.3	15.875	22.225	25.4	15.4
RCB101416-FS	21.3	15.875	22.225	25.4	15.4
RCB121616	26.5	19.05	25.4	25.4	20.9
RCB121616-FC	26.5	19.05	25.4	25.4	20.9
RCB162117	44.8	25.4	33.338	26.99	45
RCB162117-FS	44.8	25.4	33.338	26.99	45

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 2

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 3

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 4

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing 5
