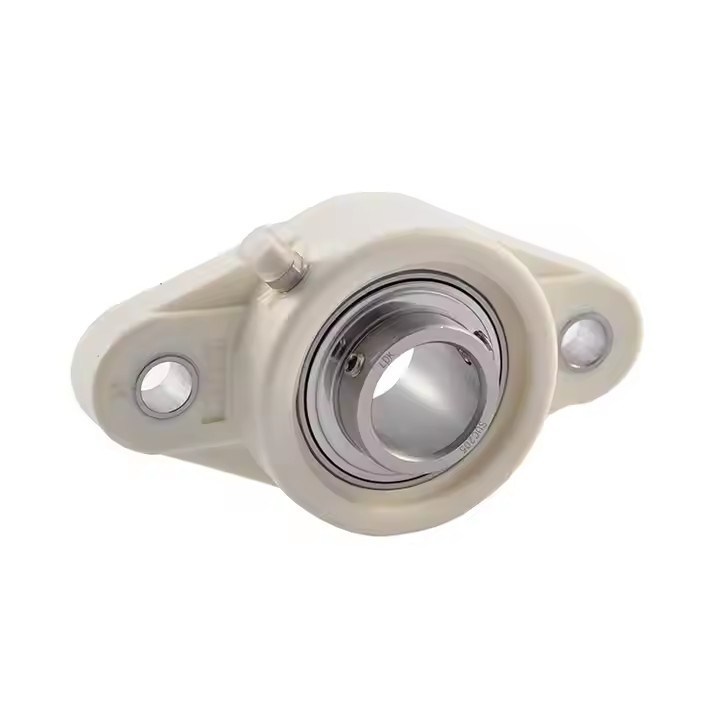

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing

Name: High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing
Brand: Shaanxi Fortune Industries Co.ltd
SKU: FL206
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: FL206

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                TP-FL206 Pillow Block Bearing, 2 Bolt Pillow Block Bearing, Thermoplastic Pillow Block Bearing


Precision Rating:	High Precision	Color:	White,black,green Are Optional
Type:	Plastic Housing	Operating Temperature:	-35°C~100°C
Insert Bearing:	UC/NA/SA/SB/SUC/SSB/SSA	Weight:	0.50KGS

Precision Rating:	High Precision
Color:	White,black,green Are Optional
Type:	Plastic Housing
Operating Temperature:	-35°C~100°C
Insert Bearing:	UC/NA/SA/SB/SUC/SSB/SSA
Weight:	0.50KGS

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing

Product Description

Bearing Description:

Pillow block bearing is a bearing unit that combine the rolling bearing and bearing seating together. Most insert bearings make the outer diameter a sphere. The structure varies in form and easy in installation. Also this kind of bearing has good versatility and interchangeability. It can easily work in severe environment.

Pillow block bearing simplifies outside structure of the machinery, making it more reasonable in assembling and maintenance, plus, it is with aligning property so that to protect torque load induced by assembling mistakes. In addition, as it is easier to be assembled on machine and lateral wall, it could be used on frame or anywhere of the machine Due to features mentioned above, the insert bearings with housings are used extensively as well as different types of the bearings themselves.

Feature:

1) Compact and light weight: The feature permits high performance and space-saving machine and equipment

2) Easy and quick to mount: Eccentric locking collar and setscrew ensure fast and positive locking of bearings to the shaft

3) High sealing efficiency: Bearings are effectively sealed with end caps for added protection of dust and humid.

Application:

Widely used in Paper machines, conveyor equipment, rotary kilns, drums, tube mills, converters, large electrical machines, rail vehicles, the mining, metallurgical, chemical industry, agriculture, transportation and other machinery.

Plummer block housing units:Cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals.

The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing 0

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B	S	Z
	(in)	(mm)	H	J	A2	A1	A	N	L	B	S	Z
TP-SUCFL201		12	113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL201-8	1/2		113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL202		15	113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL202-9	9/16		113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL202-10	5/8		113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL203		17	113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL203-11	11/16		113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL204		20	113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL204-12	3/4		113	90	15.4	14	26.5	11	65	31	12.7	33.7	M10	0.25
TP-SUCFL205		25	131	99	17	14	29	11	69	34.1	14.3	36.7	M10	0.32
TP-SUCFL205-14	7/8		131	99	17	14	29	11	69	34.1	14.3	36.7	M10	0.32
TP-SUCFL205-15	15/16		131	99	17	14	29	11	69	34.1	14.3	36.7	M10	0.32
TP-SUCFL205-16	1		131	99	17	14	29	11	69	34.1	14.3	36.7	M10	0.32
TP-SUCFL206		30	148	117	19	14	31	11	80	38.1	15.9	41.2	M10	0.5
TP-SUCFL206-17	1-1/16		148	117	19	14	31	11	80	38.1	15.9	41.2	M10	0.5
TP-SUCFL206-18	1-1/8		148	117	19	14	31	11	80	38.1	15.9	41.2	M10	0.5
TP-SUCFL206-19	1-3/16		148	117	19	14	31	11	80	38.1	15.9	41.2	M10	0.5
TP-SUCFL206-20	1-1/4		148	117	19	14	31	11	80	38.1	15.9	41.2	M10	0.5
TP-SUCFL207		35	166	130	18	16	32	13	92	42.9	17.5	43.4	M12	0.7
TP-SUCFL207-20	1-1/4		166	130	18	16	32	13	92	42.9	17.5	43.4	M12	0.7
TP-SUCFL207-21	1-5/16		166	130	18	16	32	13	92	42.9	17.5	43.4	M12	0.7
TP-SUCFL207-22	1-3/8		166	130	18	16	32	13	92	42.9	17.5	43.4	M12	0.7
TP-SUCFL207-23	1-7/16		166	130	18	16	32	13	92	42.9	17.5	43.4	M12	0.7
TP-SUCFL208		40	176	144	21.5	20	37.5	14	101	49.2	19	51.7	M12	0.89
TP-SUCFL208-24	1-1/2		176	144	21.5	20	37.5	14	101	49.2	19	51.7	M12	0.89
TP-SUCFL208-25	1-9/16		176	144	21.5	20	37.5	14	101	49.2	19	51.7	M12	0.89
TP-SUCFL209		45	189	148.5	24	21	41	17	108	49.2	19	54.2	M16	1.01
TP-SUCFL209-26	1-5/8		189	148.5	24	21	41	17	108	49.2	19	54.2	M16	1.01
TP-SUCFL209-27	1-11/16		189	148.5	24	21	41	17	108	49.2	19	54.2	M16	1.01
TP-SUCFL209-28	1-3/4		189	148.5	24	21	41	17	108	49.2	19	54.2	M16	1.01
TP-SUCFL210		50	197	157	25	21	43	17	116	51.6	19	57.6	M16	1.13
TP-SUCFL210-30	1-7/8		197	157	25	21	43	17	116	51.6	19	57.6	M16	1.13
TP-SUCFL210-31	1-15/16		197	157	25	21	43	17	116	51.6	19	57.6	M16	1.13
TP-SUCFL210-32	2		197	157	25	21	43	17	116	51.6	19	57.6	M16	1.13
TP-SUCFL211		55	224	184	25	20	43	17	130	55.6	22.2	58.1	M16	1.5
TP-SUCFL211-32	2		224	184	25	20	43	17	130	55.6	22.2	58.1	M16	1.5
TP-SUCFL211-34	2-1/8		224	184	25	20	43	17	130	55.6	22.2	58.1	M16	1.5
TP-SUCFL211-35	2-3/16		224	184	25	20	43	17	130	55.6	22.2	58.1	M16	1.5
TP-SUCFL212		60	250	202	29	20	48	18	140	65.1	25.4	68.7	M16	2.1
TP-SUCFL212-36	2-1/4		250	202	29	20	48	18	140	65.1	25.4	68.7	M16	2.1
TP-SUCFL212-38	2-3/8		250	202	29	20	48	18	140	65.1	25.4	68.7	M16	2.1
TP-SUCFL212-39	2-7/16		250	202	29	20	48	18	140	65.1	25.4	68.7	M16	2.1

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing 1

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing 2

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing 3

High Quality TP-FL206 2 Bolt Flanged Pillow Block Thermoplastic Bearing Housing 4
