Product Details
Place of Origin: China
Brand Name: SFT
Model Number: DC4127(3C)-N
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Chrome Steel |
Color: |
Black |
Samples: |
Available |
Product Name: |
One Way Clutch |
Application: |
Machinery |
Type: |
Sprag |
Material: |
Chrome Steel |
Color: |
Black |
Samples: |
Available |
Product Name: |
One Way Clutch |
Application: |
Machinery |
Type: |
Sprag |

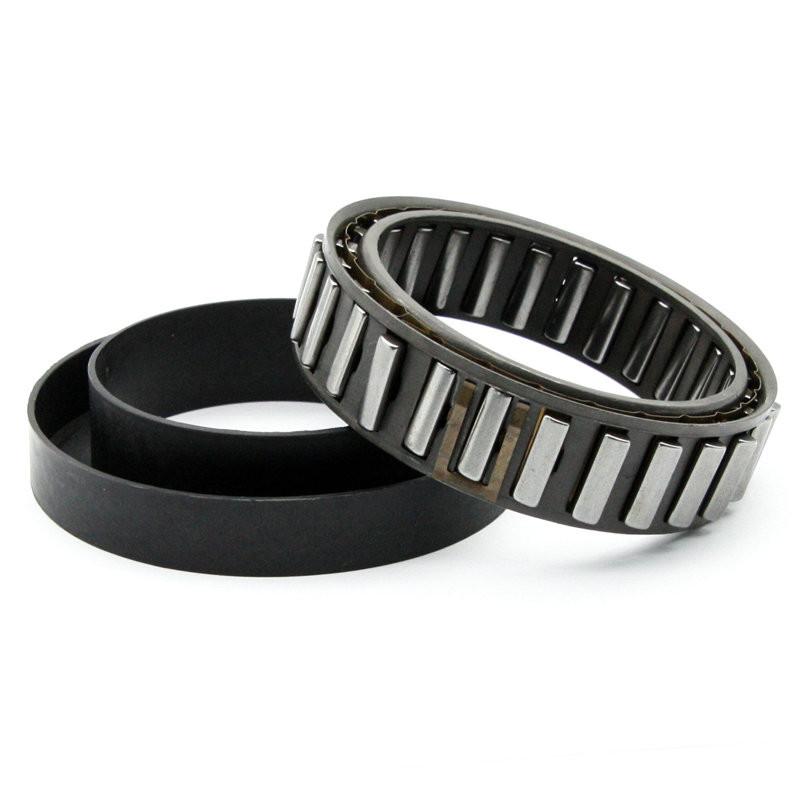

DC4127(3C)-N Sprag Type One Way Freewheel Clutch Bearing
Description of DC4127(3C)-N Sprag Type One Way Freewheel Clutch Bearing
1.Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
2.The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly .
4.Alternatively, races can be made in case hardened steel shafts, or housings,
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
5.Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races:0,007 mm for 25 mm width.
Dimensions and Capacities of one way clutch bearing:
| Product name |
Size
|
Overrunning speeds | Sprag space |
NO. of clips |
No. of sprags |
Weight | |||||||
| TKN1) | nimax2) | namax3) | Øa+0.008 -0.005 |
Øc± 0.013 | emin | Ødmin | Øbmax | ||||||
| [Nm] | [min-1] | [min -1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||||
| One way clutch | DC2222G-N | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33±0.075 | 10 | 50 | 15 | – | 12 | 0.03 |
| One way clutch | DC2776-N | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33±0.075 | 13.5 | 58 | 18 | – | 14 | 0.055 |
| One way clutch | DC3034-N | 124 | 6300 | 3100 | 30.34 | 47 | 8.33±0.075 | 13.5 | 62 | 20 | – | 14 | 0.06 |
| One way clutch | DC3175(3C)-N | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33±0.075 | 13.5 | 63 | 21 | 3 | 16 | 0.06 |
| One way clutch | DC3809A-N | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33±0.075 | 16 | 71 | 25 | – | 18 | 0.085 |
| One way clutch | DC4127(3C)-N | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33±0.075 | 13.5 | 75 | 27 | 3 | 18 | 0.09 |
| One way clutch | DC4445A-N | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33±0.1 | 16 | 79 | 29 | – | 20 | 0.095 |
| One way clutch | DC4972(4C)-N | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33±0.1 | 13.5 | 86 | 33 | 4 | 22 | 0.1 |
| One way clutch | DC5476A-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | – | 24 | 0.11 |
| One way clutch | DC5476A(4C)-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | 4 | 24 | 0.13 |
| One way clutch | DC5476B(4C)-N | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 21 | 92 | 36 | 4 | 24 | 0.18 |
| One way clutch | DC5476C(4C)-N | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 25.4 | 92 | 36 | 4 | 24 | 0.2 |
| One way clutch | DC5776A-N | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33±0.1 | 16 | 98 | 38 | – | 26 | 0.11 |
| One way clutch | DC6334B-N | 806 | 3000 | 1500 | 63.34 | 80 | 8.33±0.1 | 21 | 104 | 42 | – | 26 | 0.175 |
| One way clutch | DC7221(5C)-N | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 13.5 | 115 | 48 | 5 | 30 | 0.14 |
| One way clutch | DC7221B-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | – | 30 | 0.185 |
| One way clutch | DC7221B(5C)-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | 5 | 30 | 0.21 |
| One way clutch | DC7969C(5C)-N | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33±0.1 | 25.4 | 124 | 53 | 5 | 34 | 0.28 |
| One way clutch | DC8334C-N | 2055 | 2300 | 1100 | 83.34 | 100.000 | 8.33±0.1 | 25.4 | 132 | 55 | – | 34 | 0.27 |
| One way clutch | DC8729A-N | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33±0.1 | 16 | 134 | 58 | – | 34 | 0.165 |
| One way clutch | DC10323A(5C)*-N | 1612 | 1800 | 900 | 103.231** | 119.891 | 8.33±0.1 | 16 | 155 | 68 | 5 | 40 | 0.205 |
| One way clutch | DC12334C*-N | 4800 | 1500 | 750 | 123.340** | 140.000 | 8.33±0.1 | 25.4 | 184 | 80 | – | 50 | 0.4 |
| One way clutch | DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.50±0.1 | 25.4 | 186 | 80 | 11 | 44 | 0.4 |
Applications of one way clutch bearing:
One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox
Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.
Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
