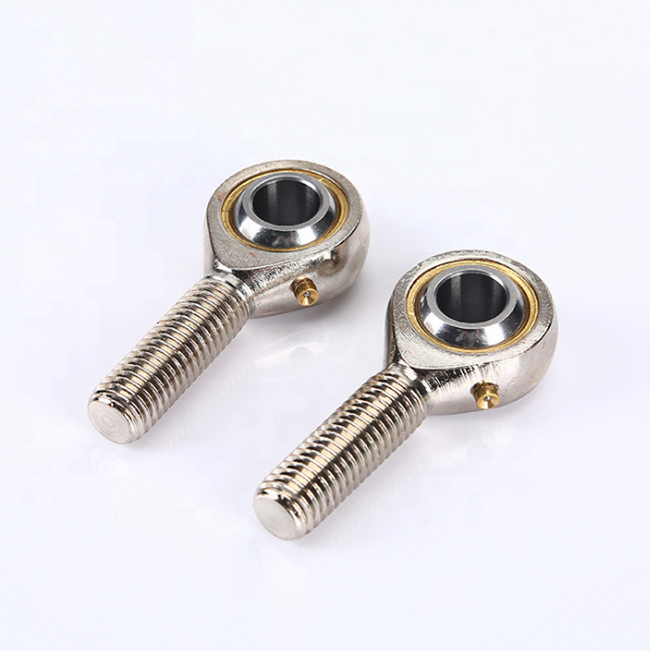

Stainless steel M6*1.0 female thread rod end bearing SSI6T/K
1. Rod end bearing introduction
Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic
2. Rod end bearing application
Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.
Drawing and datasheet
| Requiring maintenance, steel-on-steel, female thread-GIR..DO, GIL..DO (SI..E, SIL..ES) | |||||||||||
| Part No. | Dimension (mm) | Mass | |||||||||
| Right | Left | d | d3 | B | C1 | L3 | S | d2 | (kg) | ||
| GIR5-DO | GIL5-DO | SI 5 E | SIL 5 E | 5 | M5X0.8 | 6 | 4.5 | 10 | 10 | 21 | 16 |
| GIR6-DO | GIL6-DO | SI 6 E | SIL 6 E | 6 | M6 | 6 | 4.4 | 11 | 11 | 21 | 0.021 |
| GIR8-DO | GIL8-DO | SI 8 E | SIL 8 E | 8 | M8 | 8 | 6 | 15 | 14 | 24 | 0.039 |
| GIR10-DO | GIL10-DO | SI 10 E | SIL 10 E | 10 | M10 | 9 | 7 | 20 | 17 | 29 | 0.061 |
| GIR12-DO | GIL12-DO | SI 12 E | SIL 12 E | 12 | M12 | 10 | 8 | 23 | 19 | 34 | 0.096 |
| GIR15-DO | GIL15-DO | SI 15 ES | SIL 15 ES | 15 | M14 | 12 | 10 | 30 | 22 | 40 | 0.18 |
| GIR17-DO | GIL17-DO | SI 17 ES | SIL 17 ES | 17 | M16 | 14 | 11 | 34 | 27 | 46 | 0.22 |
| GIR20-DO | GIL20-DO | SI 20 ES | SIL 20 ES | 20 | M20x1.5 | 16 | 13 | 40 | 32 | 53 | 0.35 |
| GIR25-DO | GIL25-DO | SI 25 ES | SIL 25 ES | 25 | M24x2 | 20 | 17 | 48 | 36 | 64 | 0.64 |
| GIR30-DO | GIL30-DO | SI 30 ES | SIL 30 ES | 30 | M30x2 | 22 | 19 | 56 | 41 | 73 | 0.93 |
| GIR35-DO | GIL35-DO | SI 35 ES | SIL 35 ES | 35 | M36x3 | 25 | 21 | 60 | 50 | 82 | 1.3 |
| GIR40-DO | GIL40-DO | SI 40 ES | SIL 40 ES | 40 | M39x3 | 28 | 23 | 65 | 55 | 92 | 2 |
| GIR45-DO | GIL45-DO | SI 45 ES | SIL 45 ES | 45 | M42x3 | 32 | 27 | 65 | 60 | 102 | 2.5 |
| GIR50-DO | GIL50-DO | SI 50 ES | SIL 50 ES | 50 | M45x3 | 35 | 30 | 68 | 65 | 112 | 3.5 |
| GIR60-DO | GIL60-DO | SI 60 ES | SIL 60 ES | 60 | M52x3 | 44 | 38 | 70 | 75 | 135 | 5.5 |
| GIR70-DO | GIL70-DO | SI 70 ES | SIL 70 ES | 70 | M56x3 | 49 | 42 | 80 | 85 | 160 | 8.6 |
Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.
