Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SA20ES
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Noise Level: |
Z1,Z2,Z3,Z4 |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Free Sample: |
Availabe |
Noise Level: |
Z1,Z2,Z3,Z4 |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Free Sample: |
Availabe |

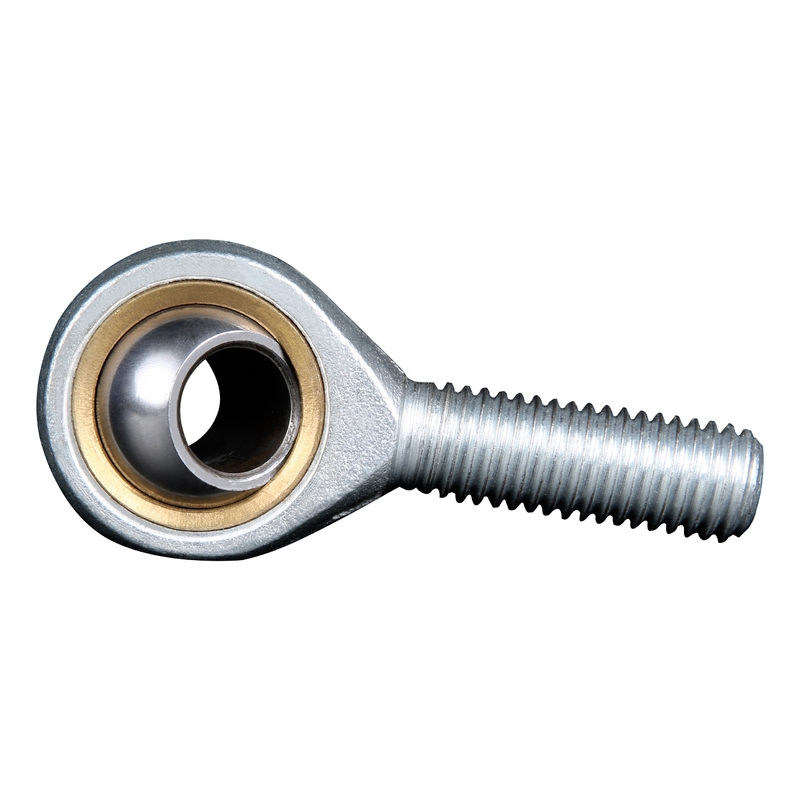

Self-lubricating rod end bearing on free series POSA SA20ES
1.Features of rod end bearing
• Sliding contact surface: steel/PTFE
• Lubricating: Maintenance-free
• Housing: 304 stainless steel
• Inner ring: 420 stainless steel, heat treated HRC54-60
• Outer Ring: 304 stainless steel
• Liner: PTFE
2. Rod end bearing application
Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.
PHS series rod end bearing
| type | Dimensions(mm) | a | weight | |||||||||||
| d | d3 | d2 | d5 | S | B | L5 | C1 | h1 | L3 | d4 | L4 | (g ) | ||
| PHSA5 | 5 | M5x0.8 | 18 | 12.5 | 10 | 8 | 4 | 6 | 27 | 10 | 9 | 36 | 13 | 25 |
| PHSA6 | 6 | M6x1 | 20 | 13 | 11 | 9 | 5 | 6.75 | 30 | 12 | 10 | 45 | 13 | 27 |
| PHSA8 | 8 | M8x1.25 | 24 | 16 | 14 | 12 | 5 | 9 | 36 | 16 | 12.5 | 48 | 13 | 46 |
| PHSA10 | 10 | M10x1.5 | 28 | 19 | 17 | 14 | 6.5 | 10.5 | 43 | 20 | 15 | 57 | 13 | 76 |
| PHSA12 | 12 | M12x1.75 | 32 | 22 | 19 | 16 | 6.5 | 12 | 50 | 22 | 17.5 | 66 | 13 | 115 |
| PHSA14 | 14 | M14x2 | 36 | 25 | 55 | 19 | 8 | 13.5 | 57 | 25 | 20 | 75 | 13 | 170 |
| PHSA16 | 16 | M16x2 | 42 | 27 | 25 | 21 | 8 | 15 | 64 | 28 | 22 | 84 | 13 | 230 |
| PHSA18 | 18 | M18x1.5 | 46 | 31 | 27 | 23 | 10 | 16.5 | 71 | 32 | 25 | 94 | 13 | 320 |
| PHSA20 | 20 | M20x1.5 | 50 | 34 | 30 | 25 | 10 | 18 | 77 | 33 | 27.5 | 102 | 13 | 420 |
| PHSA22 | 22 | M22x1.5 | 54 | 37 | 32 | 28 | 12 | 20 | 84 | 37 | 30 | 111 | 13 | 540 |
| PHSA25 | 25 | M24x2 | 60 | 42 | 30 | 31 | 12 | 22 | 94 | 42 | 33.5 | 124 | 13 | 750 |
| PHSA28 | 28 | M27x2 | 66 | 46 | 41 | 35 | 14 | 24 | 103 | 41 | 37 | 136 | 13 | 820 |
| PHSA30 | 30 | M30x2 | 70 | 50 | 41 | 37 | 15 | 25 | 110 | 51 | 40 | 145 | 13 | 1300 |
