Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SI5T/K SI12T/K SI16T/K
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Bearing Type: |
Rod End Joint Bearing |
Quality: |
High Level |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Free Sample: |
Availabe |
Bearing Type: |
Rod End Joint Bearing |
Quality: |
High Level |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Free Sample: |
Availabe |

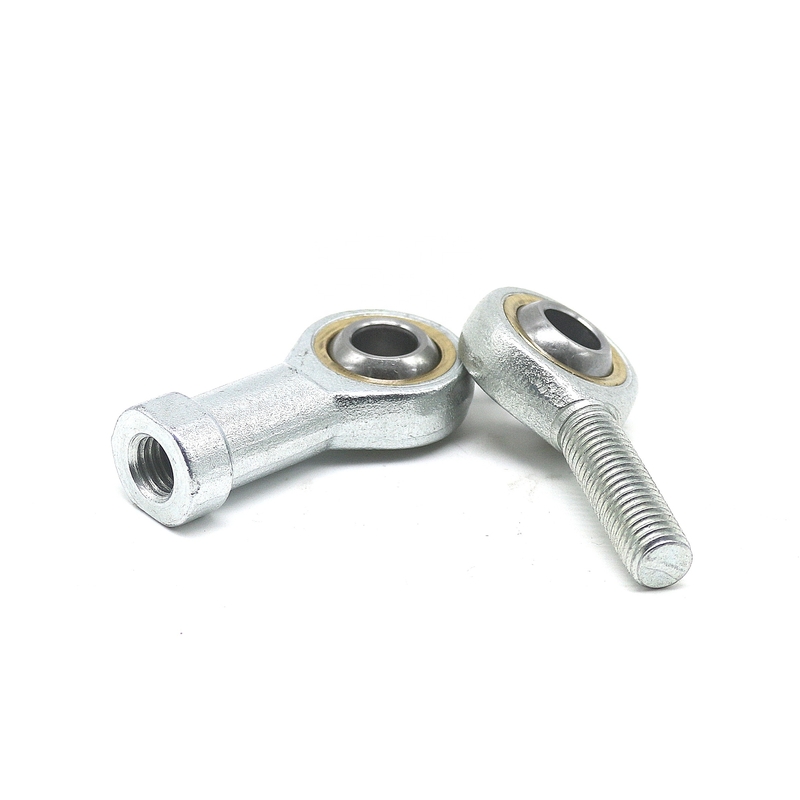

Fast Delivery female and male thread rod end bearing
Product feature:
Large load capacity and impact resistance, and corrosion resistance, wear resistance, self-aligning, good lubrication
Product Application:
Widely used for lower speed swinging motion and Tilting and rotating motion
Rod End Bearing can withstand greater loads. According to their different types and structures that can withstand the radial load, axial load or radial, axial joint load. Since theinner surface of the outer sphere inlaid composite materials, so that the work can be generated in the bearing self-lubricating. Generally used for slower swing movement, and low-speed rotation, but also for the tilt angle within a certain range of motion, when the supporting shaft and shaft misalignment large shell hole, still work. Self-lubricating bearings used in water conservancy, specialized machinery and other industries.
|
type
|
Dimensions(mm) | a | weight(g ) | |||||||
| d | d3 | d2 | B | C1 | h | L1 | L2 | |||
| POSA5 | 5 | M5x0.8 | 18 | 8 | 6 | 33 | 19 | 42 | 13 | 20 |
| POSA6 | 6 | M6x1 | 20 | 9 | 6.75 | 36 | 22 | 46 | 13 | 21 |
| POSA8 | 8 | M8x1.25 | 24 | 12 | 9 | 42 | 25 | 54 | 13 | 34 |
| POSA10 | 10 | M10x1.5 | 28 | 14 | 10.5 | 48 | 29 | 62 | 13 | 58 |
| POSA12 | 12 | M12x1.75 | 32 | 16 | 12 | 54 | 33 | 70 | 13 | 92 |
| POSA14 | 14 | M14x2 | 36 | 19 | 13.5 | 60 | 26 | 77 | 13 | 153 |
| POSA16 | 16 | M16x2 | 42 | 21 | 15 | 66 | 40 | 86 | 13 | 205 |
| POSA18 | 18 | M18x1.5 | 46 | 23 | 16.5 | 72 | 44 | 95 | 13 | 280 |
| POSA20 | 20 | M20x1.5 | 50 | 25 | 18 | 78 | 47 | 103 | 13 | 370 |
| POSA22 | 22 | M22x1.5 | 54 | 28 | 20 | 84 | 51 | 111 | 13 | 475 |
| POSA25 | 25 | M24x2 | 60 | 31 | 22 | 94 | 57 | 124 | 13 | 650 |
| POSA28 | 28 | M27x2 | 66 | 35 | 24 | 103 | 62 | 136 | 13 | 800 |
| POSA30 | 30 | M30x2 | 70 | 37 | 25 | 110 | 66 | 145 | 13 | 1070 |
