Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMFP16
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Cage: |
Nylon Cage Steel Cage |
Advantage: |
Quality. Competitive Price. Large |
Name: |
Flange Linear Bearing |
Type: |
Linear |
Precision Rating: |
P0 P6 P5 P4 P2 |
Quality: |
Certified |
Cage: |
Nylon Cage Steel Cage |
Advantage: |
Quality. Competitive Price. Large |
Name: |
Flange Linear Bearing |
Type: |
Linear |
Precision Rating: |
P0 P6 P5 P4 P2 |
Quality: |
Certified |

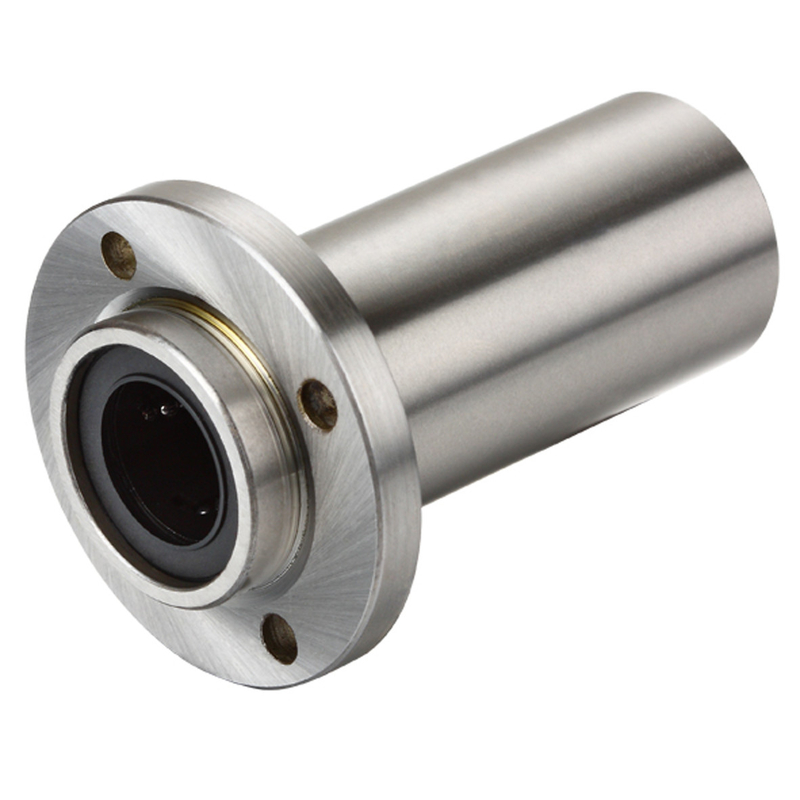

Linear motion slide bearing LMFP/LMKP/LMHPseries LMFP16
Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment,and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,printer, card sorting machine, food packing machines and other industrial machinery sliding components
Features of linear bearing:
1. linear bearing LM, LME, LMB, LMF, LMK, LMH, KH,
"LM" means metric standard type
"LME" means inch standard type
"UU" means rubber seals on the both sides of the long type bearing
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU &
LME...LUU: Long type
*KH: High-precision mini bearing
Our LMFP10UU linear bearing / linear slide ball bearing series dimension:
|
Model No. |
|
Main dimensions |
Basic load rating |
|
|||
|
Seal Type |
Ball Circuit |
Inscaibed |
Outer |
Length |
Dynamic |
Static |
Weight |
|
|
bore diameter |
diameter |
rating |
rating |
|||
|
|
|
dr |
D |
L |
C |
C0 |
|
|
|
|
mm |
mm |
mm |
N |
N |
G |
|
LMFP10UU |
4 |
10 |
19 |
29 |
372 |
549 |
72 |
|
LMFP/LMKP/LMHP Series |
||
|
Seal Type |
||
|
LMFP6UU |
LMKP6UU |
LMHP6UU |
|
LMFP8UU |
LMKP8UU |
LMHP8UU |
|
LMFP10UU |
LMKP10UU |
LMHP10UU |
|
LMFP12UU |
LMKP12UU |
LMHP12UU |
|
LMFP13UU |
LMKP13UU |
LMHP13UU |
|
LMFP16UU |
LMKP16UU |
LMHP16UU |
|
LMFP20UU |
LMKP20UU |
LMHP20UU |
|
LMFP25UU |
LMKP25UU |
LMHP25UU |
|
LMFP30UU |
LMKP30UU |
LMHP30UU |
|
LMFP35UU |
LMKP35UU |
|
|
LMFP40UU |
LMKP40UU |
|
|
LMFP50UU |
LMKP50UU |
|
|
LMFP60UU |
LMKP60UU |
|
Features:
1.High precision and rigidity, low friction, ease of assembly, good interchangeability;
2.Widely used in CNC machines, industrial automation machines, electric tools, textile machines, fitting equipments etc.;
"linear bushing""Linear Bush""Linear Slide""Linear Ball Bearing""Linear Motion Bearing""Linear Motion Ball Bearing""Sliding
Bearing""Linear Shaft Bearing""Linear Ball Bushing".
