Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMHM 16
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Precisiog: |
G6-g5 |
Advantage: |
Quality. Competitive Price. Large |
Roughness: |
Ra0.4-0.8 |
Type: |
Linear |
Precision Rating: |
P0 P6 P5 P4 P2 |
Quality: |
Certified |
Precisiog: |
G6-g5 |
Advantage: |
Quality. Competitive Price. Large |
Roughness: |
Ra0.4-0.8 |
Type: |
Linear |
Precision Rating: |
P0 P6 P5 P4 P2 |
Quality: |
Certified |

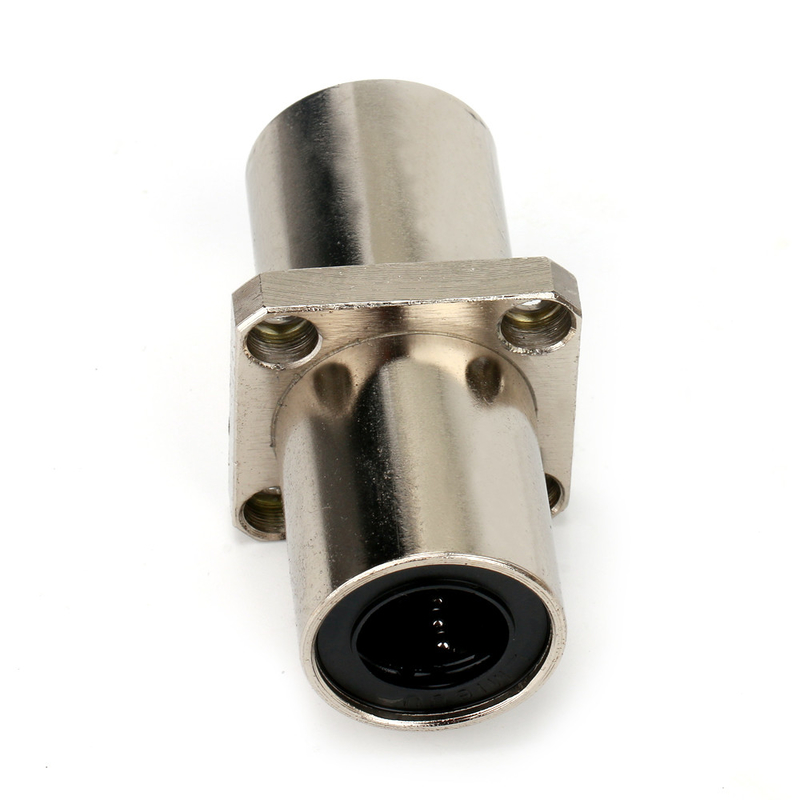

linear motion bearing LMFM LMFP LMKP LMHP nickel plating
Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment,and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,printer, card sorting machine, food packing machines and other industrial machinery sliding components
|
|
MAIN DIMENSIONS |
|||||||||
|
MODEL NO. |
NUMBER |
|||||||||
|
|
OF BALL |
|||||||||
|
|
ROWS |
|||||||||
|
|
|
weight |
|
|
V |
I |
|
|
||
|
|
|
INSCRIBED |
INSCRIBED |
OUTER |
OUTER |
FLRNGE |
HOLE FOR |
|||
|
|
|
CIRCLE |
CIRCLE |
DIAMETER |
DIAMETER |
F |
ATTACHMENT |
|||
|
|
|
DIAMETER |
DIAMETER |
D |
|
|
h |
|||
|
|
|
dr |
TOLERANCE |
|
TOLERANCE |
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
LMHC10LUU-MX |
4 |
94 |
10 |
0 |
19 |
0 |
5 |
24.5 |
|
4.1 |
|
LMHC12LUU-MX |
4 |
106 |
12 |
-0.01 |
21 |
-0.016 |
5.5 |
25.5 |
|
4.1 |
|
LMHC16LUU-MX |
5 |
189 |
16 |
|
28 |
|
6 |
32 |
22 |
4.1 |
|
LMHC20LUU-MX |
5 |
258 |
20 |
0 |
32 |
0 |
7 |
36 |
24 |
5.1 |
|
LMHC25LUU-MX |
6 |
544 |
25 |
-0.012 |
40 |
-0.019 |
9 |
52 |
32 |
5.1 |
|
LMHC30LUU-MX |
6 |
669 |
30 |
|
45 |
|
10 |
56.5 |
35 |
6.1 |
|
LMHC35LUU-MX |
6 |
973 |
35 |
0 |
52 |
0 |
11 |
62.5 |
38 |
6.1 |
|
LMHC40LUU-MX |
6 |
1456 |
40 |
-0.015 |
60 |
-0.022 |
12 |
69 |
45 |
8.1 |
|
LMHC50LUU-MX |
6 |
3500 |
50 |
|
80 |
|
14 |
89.5 |
56 |
8.1 |
Features:
1.High precision and rigidity, low friction, ease of assembly, good interchangeability;
2.Widely used in CNC machines, industrial automation machines, electric tools, textile machines, fitting equipments etc.;
"linear bushing""Linear Bush""Linear Slide""Linear Ball Bearing""Linear Motion Bearing""Linear Motion Ball Bearing""Sliding
Bearing""Linear Shaft Bearing""Linear Ball Bushing".
