Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMH 20UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Noise Level: |
Z1, Z2, Z3, Z4 |
Usage: |
Robotics, 3D Printers, Automation Projects And CNC |
Feature: |
Long Life |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |
Noise Level: |
Z1, Z2, Z3, Z4 |
Usage: |
Robotics, 3D Printers, Automation Projects And CNC |
Feature: |
Long Life |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |

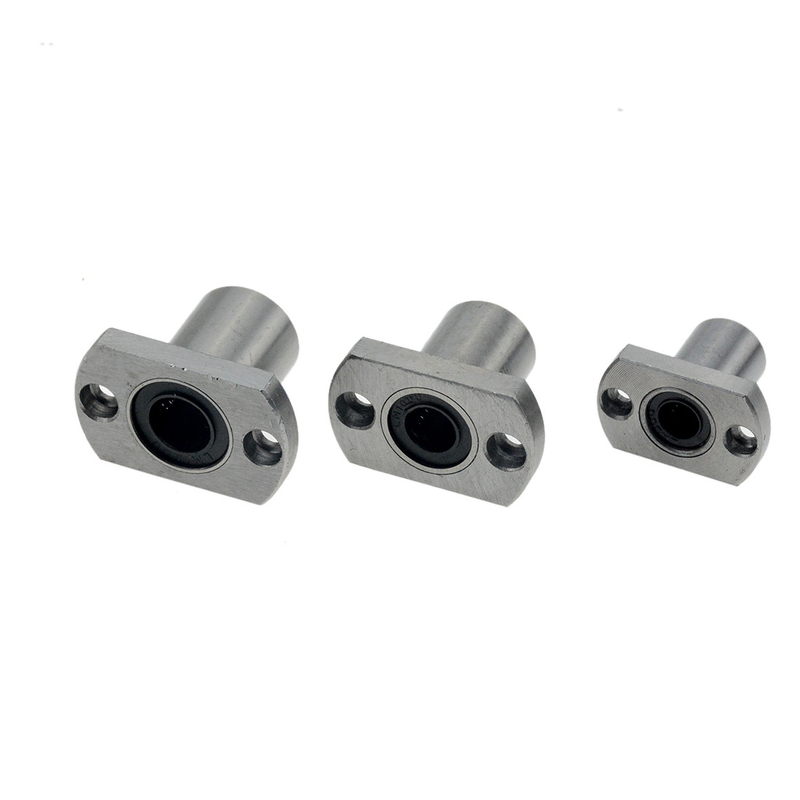

LMH Flange super precision Linear motion Bearings For Rod shaft
Products Description
"UU" means rubber seals on the both sides of the long type bearing "LM" means metric standard type "LME" means inch standard type "OP" means open type "AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable) *LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type *KH: High-precision mini bearing
Application
Linear bearings are widely used in electronic equipment, tensile testing machine And the digital three-dimensional coordinate measuring equipment, precision equipment, And multi axis machine tools, presses, tool grinder, automatic gas cutting machine, Printer, card sorting machine, food packing machines and other industrial machinery sliding components Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment, and multi axis machine tools, presses, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packing machines And other industrial machinery sliding components.
| Flange Type | Ball rows | Weight g | Allow tolerance | Basic Load | ID mm | OD mm | L mm | |||
| Circular | Square | Oval | Dynamic | Static | ||||||
| LMF 6UU | LMK 6UU | LMH 6UU | 4 | 26.5 | -5 | 200 | 260 | 6 | 12 | 19 |
| LMF 8SUU | LMK 8SUU | 4 | 34 | -5 | 170 | 220 | 8 | 15 | 17 | |
| LMF 8UU | LMK 8UU | LMH 8UU | 4 | 40 | -5 | 260 | 400 | 8 | 15 | 24 |
| LMF 10UU | LMK 10UU | LMH 10UU | 4 | 78 | -5 | 370 | 540 | 10 | 19 | 29 |
| LMF 12UU | LMFK12UU | LMFH12UU | 4 | 76 | -5 | 410 | 590 | 12 | 21 | 30 |
| LMF 13UU | LMK 13UU | LMH 13UU | 4 | 94 | -7 | 500 | 770 | 13 | 23 | 32 |
| LMF 16UU | LMK 16UU | LMH 16UU | 5 | 134 | -7 | 770 | 1170 | 16 | 28 | 37 |
| LMF 20UU | LMK 20UU | LMH 20UU | 5 | 180 | -9 | 860 | 1370 | 20 | 32 | 42 |
| LMF 25UU | LMK 25UU | LMH 25UU | 6 | 340 | -9 | 980 | 1560 | 25 | 40 | 59 |
| LMF 30UU | LMK 30UU | LMH 30UU | 6 | 460 | -9 | 1560 | 2740 | 30 | 45 | 64 |
| LMF 35UU | LMK 35UU | 6 | 795 | -13 | 1660 | 3130 | 35 | 52 | 70 | |
| LMF 40UU | LMK 40UU | 6 | 1054 | -13 | 2150 | 4010 | 40 | 60 | 80 | |
| LMF 50UU | LMK 50UU | 6 | 2200 | -13 | 3820 | 7930 | 50 | 80 | 100 | |
| LMF 60UU | LMK 60UU | 6 | 2960 | -16 | 4700 | 9990 | 60 | 90 | 110 | |
| LMF 80UU | LMK 80UU | 6 | 5800 | -20 | 7350 | 16000 | 80 | 120 | 140 | |
| LMF 100UU | LMK 100UU | 6 | 10600 | -30 | 14100 | 34800 | 100 | 150 | 175 | |
