Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 3222
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Precision Rating: |
P0 P6 P5 |
Number Of Row: |
DOUBLE ROW |
Type: |
Ball |
Bore Size: |
40 Mm, 0 - 20 Mm, 5 - 30 Mm, 2 - 560 Mm, 10 - 110 Mm |
Sample: |
Avaliable, Offered, Free |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |
Precision Rating: |
P0 P6 P5 |
Number Of Row: |
DOUBLE ROW |
Type: |
Ball |
Bore Size: |
40 Mm, 0 - 20 Mm, 5 - 30 Mm, 2 - 560 Mm, 10 - 110 Mm |
Sample: |
Avaliable, Offered, Free |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |

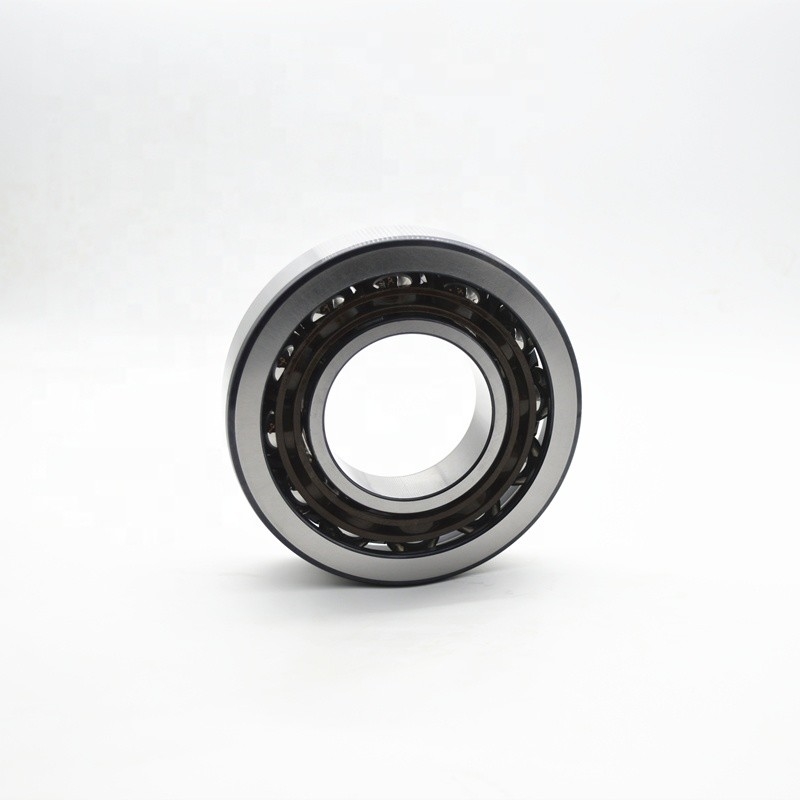

3222 Double Angular contact ball Bearing Chrome steel
Single row angular contact ball bearing: machine spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, welding machine, low noise type cooling tower, mechanical and electrical equipment, painting equipment, machine groove plate, arc welding machine
Double row angular contact ball bearing, oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric, square box, gravity type spray gun, wire stripping machine, axle shaft equipment, chemical machinery, testing analysis.
Feature of Angular contact ball bearing:
Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preloads and coatings for additional corrosion resistance.
Applications of Angular contact ball bearing:
electric motors, automotive applications, home appliances, industrial equipment.
| Model | d mm | D mm | H mm | W kg |
| 3200 | 10 | 30 | 14.3 | 0.055 |
| 3201 | 12 | 35 | 15.9 | 0.058 |
| 3202 | 15 | 35 | 15.9 | 0.066 |
| 3203 | 17 | 40 | 17.5 | 0.1 |
| 3204 | 20 | 47 | 20.6 | 0.16 |
| 3205 | 25 | 52 | 20.6 | 0.185 |
| 3206 | 30 | 62 | 23.8 | 0.29 |
| 3207 | 35 | 72 | 27 | 0.4 |
| 3208 | 40 | 80 | 30.2 | 0.58 |
| 3209 | 45 | 85 | 30.2 | 0.63 |
| 3210 | 50 | 90 | 30.2 | 0.66 |
Types of Angular contact ball bearing:
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1. Single-row angular contact ball bearings
Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.
2. Double-row angular contact ball bearings
This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.
3. Four-point angular contact ball bearings
The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.
