Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 71800
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Number Of Row: |
Single Row |
Feature: |
High Precision, Long Life, Low Noise |
Cage: |
Steel Cage |
Application: |
Machinery |
Lubrication: |
Oil Grease Or Solid Grease |
Vibration: |
V1 V2 V3 |
Number Of Row: |
Single Row |
Feature: |
High Precision, Long Life, Low Noise |
Cage: |
Steel Cage |
Application: |
Machinery |
Lubrication: |
Oil Grease Or Solid Grease |
Vibration: |
V1 V2 V3 |

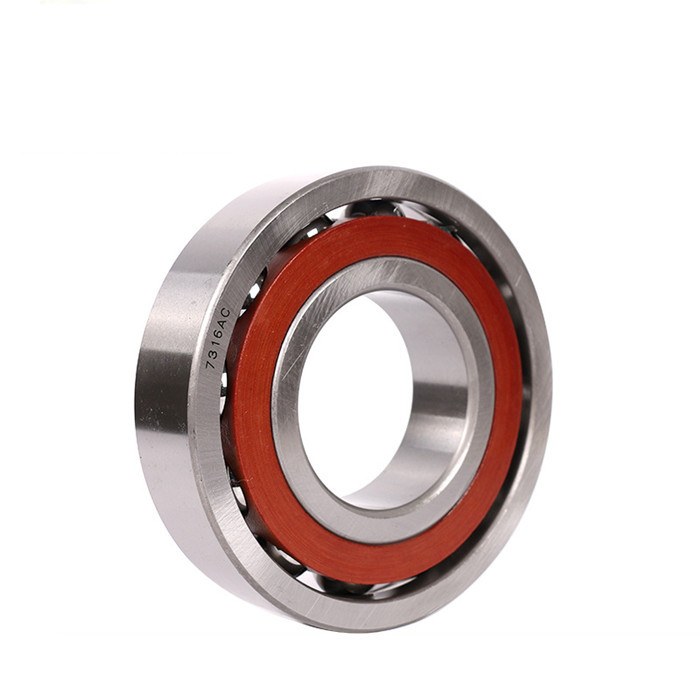

High precision angular contact ball bearing 718 bearing Series 71800
Product Description:
Angular contact bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient. Retainers are made of brass, synthetic resins or others subject according to individual bearing features and application conditions.
a=15 °7000C
a=25 °7000AC
a=40 °7000B
Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing
Precision Matching of The Product:
UTE precision angular contact ball bearings can be supplied by assemble sets with two, three, four or five bearings to form a complete bearing group. The elements of bearing group are produced by matching requirement, so that the bearings can get the predetermined preload and rigidity after installation. The inner and outer diameter and angle of the same bearing group shall be controlled within the allowable tolerance. For bearings with special requirement, the tolerance will be even smaller.
The difficulty of multiple bearing matching is how to control the accumulative tolerances. UTE has solved this problem by using precision matching technology.
| Related Model | |||||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) |
| 7318 | 90*190*43 | 7306 | 30*72*19 | 7312 | 60*130*31 |
| 7319 | 95*200*45 | 7307 | 35*80*21 | 7313 | 65*140*33 |
| 7320 | 100*215*47 | 7308 | 40*90*23 | 7314 | 70*150*35 |
| 7303 | 17*47*14 | 7309 | 45*100*25 | 7315 | 75*160*37 |
| 7304 | 20*52*15 | 7310 | 50*110*27 | 7316 | 80*170*39 |
| 7305 | 25*62*17 | 7311 | 55*120*29 | 7317 | 85*180*41 |
