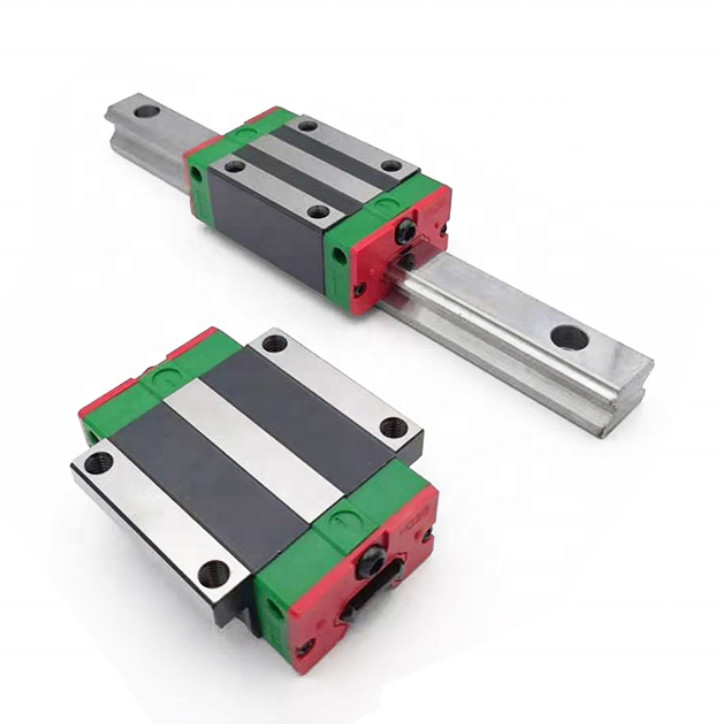

linear guideway HGR20 linear motion guide block carriageHGH20CA
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation..
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Application
1. semiconductor manufacturing equipment
2. printed circuit board IC assembly equipment
3. medical equipment
4. the robotic arm
5. precision measuring instruments
6. office automation equipment
7. other small linear slide device
Linear guideway:
widely used in electronics, laser, engraving, cutting and other industries, with high precision, low noise, corrosion resistance, rust resistance, high speed, low cost, etc., is favored in the field of linear transmission.
|
Model
|
Size(MM)
|
Weight
|
|||||
|
WR
|
HR
|
S
|
h
|
P
|
E
|
(kg/m)
|
|
|
HGR15T
|
15
|
15
|
M5*0.8P
|
8
|
60
|
20
|
1.48
|
|
HGR20T
|
20
|
17.5
|
M6*1P
|
10
|
60
|
20
|
2.29
|
|
HGR25T
|
23
|
22
|
M6*1P
|
12
|
60
|
20
|
3.35
|
|
HGR30T
|
28
|
26
|
M8*1.25P
|
15
|
80
|
20
|
4.67
|
|
HGR35T
|
34
|
29
|
M8*1.25P
|
17
|
80
|
20
|
6.51
|
|
HGR45T
|
45
|
38
|
M12*1.75P
|
24
|
105
|
22.5
|
10.87
|
|
HGR55T
|
53
|
44
|
M14*2P
|
24
|
120
|
30
|
15.67
|
|
HGR65T
|
63
|
53
|
M20*2.5P
|
30
|
150
|
35
|
21.73
|
