Product Details
Place of Origin: China
Brand Name: SFT
Model Number: HGR20R
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Rail Weight: |
2.21kg/m |
Warranty: |
1.5 Years |
Length: |
100/150/200/250/300/350/400/450/500/550/600/650/700 |
Series: |
Linear Guideway |
Material: |
Chrome Steell |
Application: |
Sliding Door, Cnc Machinery, 3d Printer |
Rail Weight: |
2.21kg/m |
Warranty: |
1.5 Years |
Length: |
100/150/200/250/300/350/400/450/500/550/600/650/700 |
Series: |
Linear Guideway |
Material: |
Chrome Steell |
Application: |
Sliding Door, Cnc Machinery, 3d Printer |

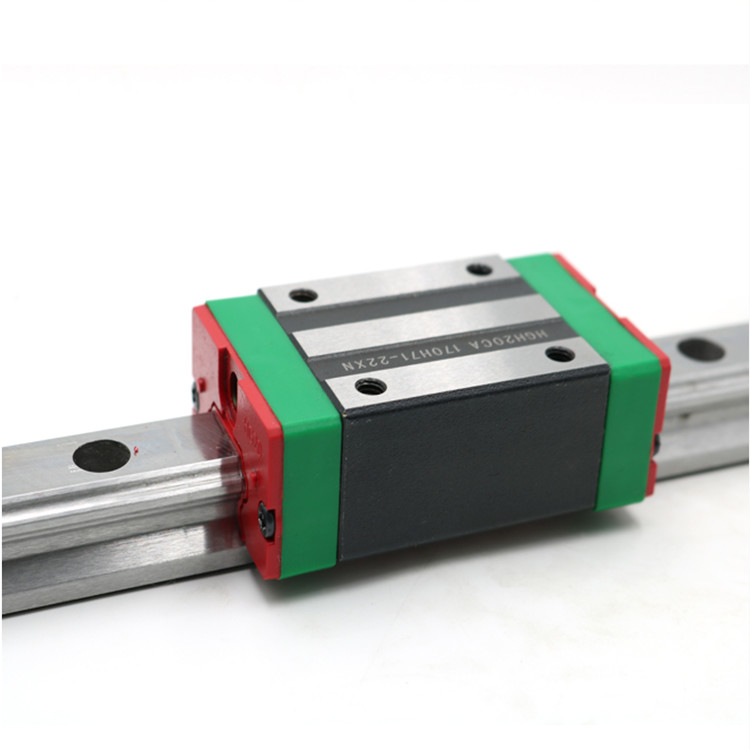

heavy duty 20mm linear guides rail HGR20R1000C
Product Description
High rigidity linear motion rolling guides designed to evenly support high load capacity by incorporating large-diameter balls.
Wide range of variations for your needs,As the lineup of 5 types of slide unit shape including the
flange type, block type with small width and side mounting type, etc., and 3 types with different slide unit length with same section are available, you can select an optimal
product for the specifications of your machine and device.
Products made of stainless steel are highly resistant to corrosion, so that they are suitable for applications where rust prevention oil is not preferred, such as in cleanroom environment.
Products of ultra seal specifications have excellent dust protection performance thanks to the combination of the dedicated track rail finished with total ground and slide unit with end seal and under seal of special shapes. Special specification with inner seal further improves dust
protection property of the ball circulation section against foreign substances from the upper surface of the track rail.
linear slide rail is a kind of rolling guide, it is composed of steel ball between slide block and the slide rail for the infinite scroll circulation, make the load platform can easily along the slide rail with high precision linear motion, the coefficient of friction can be reduced to 1/50 of the traditional sliding guide, make it can easily reach mu m class location accuracy.
Between slide block and the slide rail making yuan at the end of the design, make the linear slide rail can be under the direction of the up and down or so and so on various load at the same time, the recycling of patent system and streamlined structure design makes linear slide rail with more smooth and low noise.
Feature of linear guide rail:
Linear guide and assorted linear guide blocks reference:
| Linear rail size | Assorted Linear guide blocks | |||
| EGR15+(rail length) | EGH15SA | EGH15CA | EGW15SA/SB | EGW15CA/CB |
| EGR20+(rail length) | EGH20SA | EGH20CA | EGW20SA/SB | EGW20CA/CB |
| EGR25+(rail length) | EGH25SA | EGH25CA | EGW25SA/SB | EGW25CA/CB |
| EGR30+(rail length) | EGH30SA | EGH30CA |
EGW30SA /SB
|
EGW30CA/CB |
| Name | Linear guide rail HG20r1000c |
| Material | Chrome Steel Gcr15 |
| Precision | C,H,P |
| Preload | Z0,ZA,ZB |
| Bolt size | M5X16 |
| Rail weight | 2.21kg/m |
| Stock | Large |
