Home > products > Deep Groove Ball Bearing > Carbon Steel Contact Rubber Seal Double Row Deep Groove Bearing 630/8 2RS1

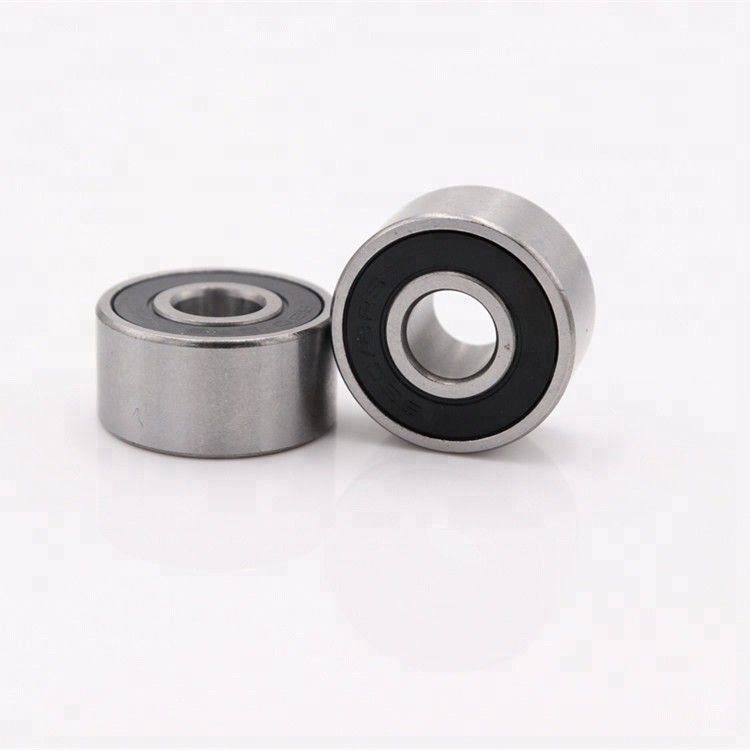

Carbon Steel Contact Rubber Seal Double Row Deep Groove Bearing 630/8 2RS1

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 630/8 2RS

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

630/8 2RS1

,

Carbon Steel 28mm Gearbox bearing

,

railway rolling stock Gearbox bearing

Structure:
Deep Groove
Material:
Stainless Steel.Gcr15.carbon Steel
Application:
Machinery
Tructure:
Deep Groove
Number Of Row:
Single Row
Type:
BALL
Structure:
Deep Groove
Material:
Stainless Steel.Gcr15.carbon Steel
Application:
Machinery
Tructure:
Deep Groove
Number Of Row:
Single Row
Type:
BALL
Carbon Steel Contact Rubber Seal Double Row Deep Groove Bearing 630/8 2RS1

water pump deep groove ball bearing 630/8 2RS1



Gearboxes, instrumentation, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo, etc..

An outer ring, an inner ring and a deep groove in the middle are lined with rolling steel balls, so it is called deep groove ball bearing.

The interface radius of the channel located on the inner and outer rings is slightly larger than the radius of the sphere. Mainly can bear radial load.

Bearings with steel dust cover, bearings with contact rubber seal ring and bearings with non-contact rubber seal ring, or bearings with stop ring on outer diameter of outer ring.


Mainly use to the following field:

Automobile: rear wheel, transmission, electrical components
Electrical: general motors, household appliances
Other: instrument, internal combustion engine, construction machinery, railway rolling stock, loading, unloading and handling machinery, agricultural machinery, all kinds of industrial machinery



Principal dimensions
d/ D/ B1/ r min
Bearing No.
open/shield/sealed
Basic load ratings
Cr/Cor
Speed ratings
grease/oil
Weight
G
8/ 16/ 5/ 0.2
688/ ZZ/ 2RS
1260/ 590
36000/43000
3.25/4
19/ 6/ 0.3
698/ ZZ/ 2RS
2240/ 910
36000/43000
7.23/7.18
22/ 7/ 0.3
608/ ZZ/ 2RS
3300/ 1370
34000/ 40000
12.1/12.2
24/ 8/ 0.3
628/ ZZ/ 2RS
3350/ 1430
28000/ 34000
17.2/17.4
28/ 9/ 0.6
638/ ZZ/ -
4550/ 1970
28000/ 34000
28.3/ 28.6
