Product Details
Place of Origin: China
Brand Name: SFT
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Metal Alloy, Fe, Cu 1.5-3.9%, C 0.3-0.6% |
Weight (KG): |
0.3 KG |
Hardness: |
60-90 |
Application: |
Machinery Parts |
Size: |
According To Your Requirement |
Material Capabilities: |
Precious Metals |
Material: |
Metal Alloy, Fe, Cu 1.5-3.9%, C 0.3-0.6% |
Weight (KG): |
0.3 KG |
Hardness: |
60-90 |
Application: |
Machinery Parts |
Size: |
According To Your Requirement |
Material Capabilities: |
Precious Metals |

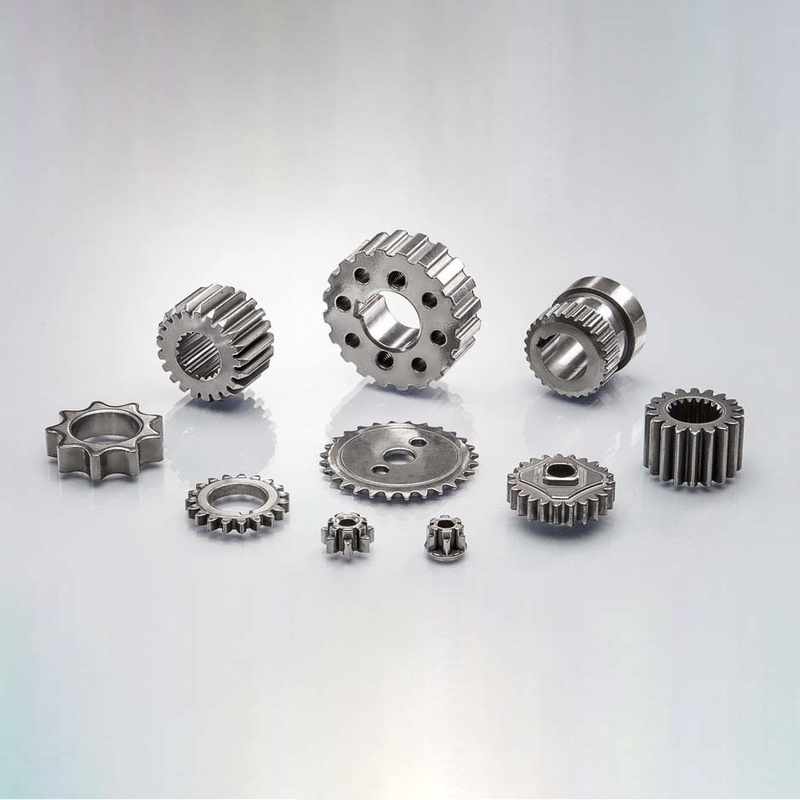

Powder Metallurgy Sintered Iron Flange Powdered Metal Parts
powder metal products for small applications, including small gears and miniature components for planetary drives, automotive sub-assemblies, drills, and electronics, and in particular, small components and assemblies for medical devices.
Specialists in stainless steel and material blending, SFT provides you with technical expertise and the ability to discover a cost effective solution that maintains the integrity of your design.
Main Advantages
1) Powder metallurgy can ensure the accuracy and uniformity of the material composition ratio.
2) Suitable for producing products of the same shape and large quantities, low production cost.
3) The production process is not afraid of oxidation, and no material pollution will occur.
4) No subsequent machining processing is required, saving materials and reducing costs.
5) Most difficult metals and compounds, pseudo alloys, porous materials can only be manufactured by powder metallurgy
Product Description
|
Technology |
Powder Metallurgy |
Metal injection moding |
|
General Material |
Fc0208/Fn0208 |
17-4Ph/4605 |
|
Density |
6.7-6.8 |
7.7-7.8 |
|
Hardness |
Fc0208(20-30HRC) Fn0208(35-40HRC) |
17-4Ph(35-40HRC) 4605(45-50HRC) |
|
Application |
Medical apparatus and instruments Hardware field Automobile industry Home appliances |
|
Performance of Oil Bearing
| Performance of oil bearing (copper based & iron based) | |||||
| No. | Features | ||||
| Illustrate | Unit | Copper based | Copper & iron based | Iron based | |
| 1 | Density | g/cm3 | 6.5-7.2 | 6.0-6.7 | 5.9-6.5 |
| 2 | Surface porosity | / | After heated in lubricating oil from the sliding surface | ||
| 3 | Noise (distance 50 mm) | db | below 20 | ||
| 4 | Abrasion loss | m | below 15 | ||
| 5 | Oil Content Rate | V% | above 18 | ||
| 6 | Pressure stains strength | Mpa | above 150 | above 250 | above 280 |
| 7 | Hardness | MHV | 60-90 | 60-90 | 60-110 |
| 8 | Friction coefficient | / | below 0.15 | below 0.25 | below 0.25 |
| 9 | Life | h | above 2000 | ||
