Product Details
Place of Origin: China
Brand Name: SFT
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Metal Alloy, Fe, Cu 1.5-3.9%, C 0.3-0.6% |
Weight (KG): |
0.3 KG |
Tolerance: |
0.05 - 0.1 Mm |
Color: |
Nature Or Customized |
Density: |
6.5-7.1 G/cm3 |
Type: |
Powder Metallurgy |
Material: |
Metal Alloy, Fe, Cu 1.5-3.9%, C 0.3-0.6% |
Weight (KG): |
0.3 KG |
Tolerance: |
0.05 - 0.1 Mm |
Color: |
Nature Or Customized |
Density: |
6.5-7.1 G/cm3 |
Type: |
Powder Metallurgy |
High-quality Professional Customization Powder Metallurgy Products
Product Description
Products Details Data | |||
| Iron Base | Density: 6.4~7.4 | Hardness: 40~60 HB |
Copper Base | Density: 6.5~7.3 | Hardness: 45~65 HB | |
Stainless Steel | Density: 6.8~7.5 | Hardness: 50~70 HB | |
| Mixed Powder | ||
Molding Processing | |||
Sintering | |||
Surface Treatment | Heat Treatment | ||
Steam Oxidation | |||
Plating | |||
Product Profiles
Powder metallurgy is a mixture of metal powder and non-metal powder as a raw material. The process is completed by molding,sintered, precision shaping, surface treatment.

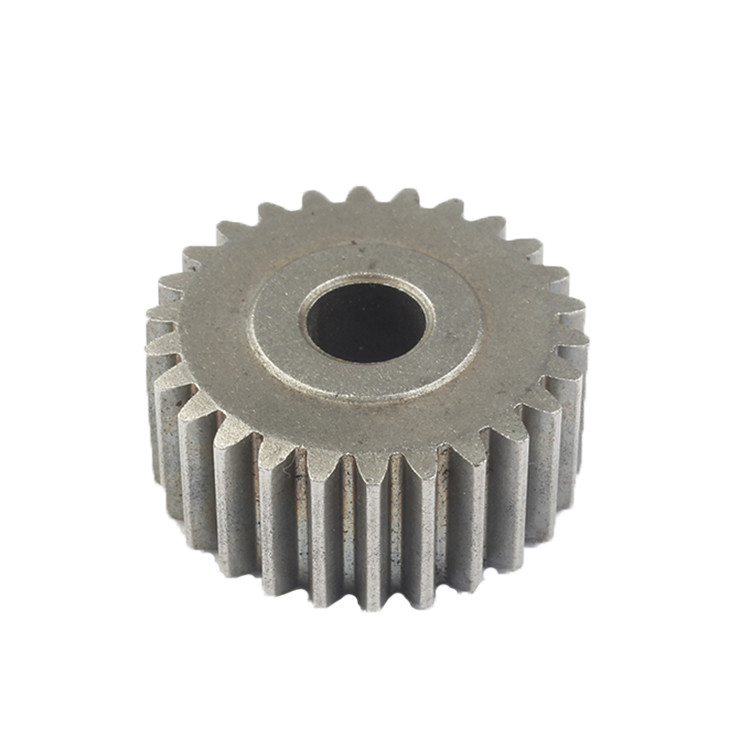

The powder metallurgy process can produce hundreds of parts of various types, and can design and produce structural parts with complex geometric shapes and high mechanical properties and precision requirements. Powder metallurgy material include: stainless steel, copper base, iron base. Products include power tool parts, oil-impregnated bearings, gears, special-shaped parts, electrical components, medical equipment, lock parts, stainless steel parts, garden tool parts, auto parts, mechanical transmission parts, hardware accessories, etc. The products are closely matched with domestic and foreign mechanical parts manufacturers, most of which are exported to developed countries such as Europe and America.
Main Advantages
1) Powder metallurgy can ensure the accuracy and uniformity of the material composition ratio.
2) Suitable for producing products of the same shape and large quantities, low production cost.
3) The production process is not afraid of oxidation, and no material pollution will occur.
4) No subsequent machining processing is required, saving materials and reducing costs.
5) Most difficult metals and compounds, pseudo alloys, porous materials can only be manufactured by powder metallurgy
Product Description
Technology | Powder Metallurgy | Metal injection moding |
General Material | Fc0208/Fn0208 | 17-4Ph/4605 |
Density | 6.7-6.8 | 7.7-7.8 |
Hardness | Fc0208(20-30HRC) | 17-4Ph(35-40HRC) |
Application | Medical apparatus and instruments Home appliances | |
