Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 230SM220MA
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Cage: |
Steel Cage |
Model Numbe: |
230SM220-MA |
Material: |
Chrome Steel GCr15 |
Z1,Z2,Z3,Z4: |
CA/CC/CAK/E/MB/K30 |
Structure: |
Spherical Roller |
Number Of Row: |
Double Row,Single Row |
Cage: |
Steel Cage |
Model Numbe: |
230SM220-MA |
Material: |
Chrome Steel GCr15 |
Z1,Z2,Z3,Z4: |
CA/CC/CAK/E/MB/K30 |
Structure: |
Spherical Roller |
Number Of Row: |
Double Row,Single Row |
Split spherical roller bearing
Product Description of Split spherical roller bearing:

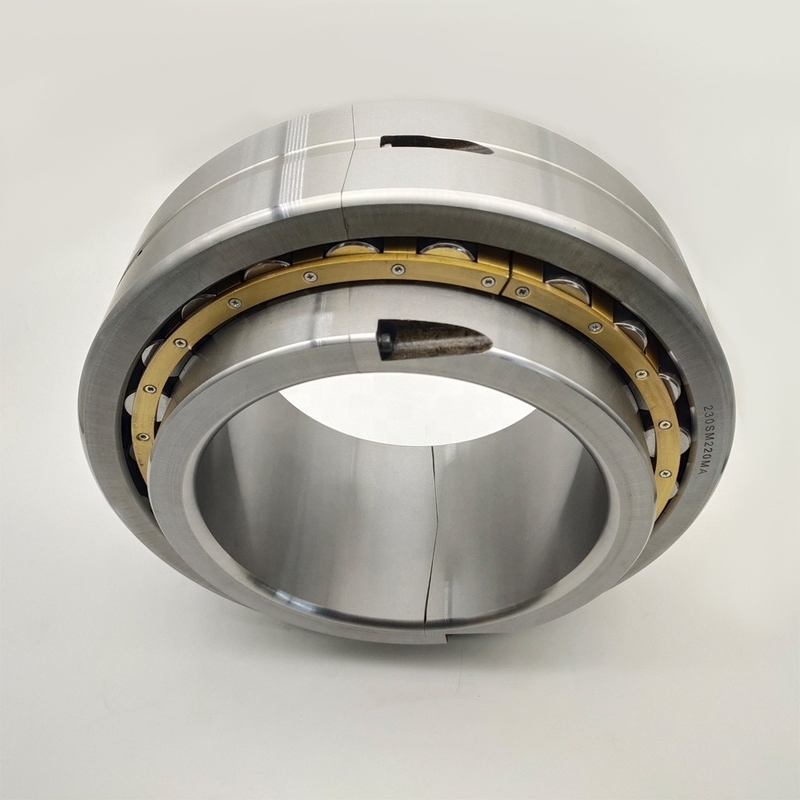

Split Spherical Roller Bearing 230SM220MA provides rapid bearing replacement at difficult to access locations
Split spherical roller bearings 230SM220MA are principally used where the replacement of unsplit Spherical roller bearings would require costly additional work, involving the removal of gears or couplings, the dismounting of drives or the dismantling of shaft power trains. The use of split spherical roller bearings reduces the downtime of machinery and plant.
Split spherical roller bearings 230SM220MA are essentially used on shafts supported at several points and locations that are difficult to access. Typical areas of application include conveying equipment, materials processing plant, ventilation plant, rolling mills, ships and paper machinery
Part No. | Mass(kg) | Dimensions (mm) | ||||
d | D | C | B | r (min.) | ||
230SM150-MA | 17.4 | 150 | 260 | 67 | 112 | 2,1 |
231SM150-MA | 28 | 150 | 280 | 88 | 133 | 2,1 |
222SM150-TVPA | 35.5 | 150 | 310 | 86 | 128 | 4 |
230SM160-MA | 24.4 | 160 | 280 | 74 | 123 | 2,1 |
231SM160-MA | 32.7 | 160 | 300 | 96 | 140 | 2,1 |
222SM160-TVPA | 37.6 | 160 | 320 | 86 | 131 | 4 |
230SM170-MA | 23.6 | 170 | 290 | 75 | 120 | 2,1 |
231SM170-MA | 40.6 | 170 | 320 | 104 | 142 | 2,1 |
222SM170-TVPA | 43.6 | 170 | 340 | 92 | 142 | 4 |
230SM180-MA | 30 | 180 | 310 | 82 | 134 | 2,1 |
231SM180-MA | 56.4 | 180 | 340 | 112 | 160 | 3 |
222SM180-MA | 52.7 | 180 | 360 | 98 | 154 | 4 |
230SM200-MA | 45 | 200 | 340 | 90 | 136 | 3 |
231SM200-MA | 61.8 | 200 | 370 | 120 | 175 | 4 |
222SM200-MA | 69.6 | 200 | 400 | 108 | 162 | 4 |
230SM220-MA | 42.6 | 220 | 360 | 92 | 156 | 3 |
231SM220-MA | 86 | 220 | 400 | 128 | 190 | 4 |
222SM220-MA | 90.9 | 220 | 440 | 120 | 170 | 4 |
230SM240-MA | 57.4 | 240 | 400 | 104 | 160 | 4 |
231SM240-MA | 118 | 240 | 440 | 144 | 210 | 4 |
222SM240-MA | 136 | 240 | 480 | 130 | 200 | 5 |
230SM260-MA | 63.6 | 260 | 420 | 106 | 170 | 4 |
231SM260-MA | 109 | 260 | 460 | 146 | 190 | 5 |
222SM260-MA | 147 | 260 | 500 | 130 | 200 | 5 |
230SM280-MA | 96 | 280 | 460 | 118 | 176 | 4 |
231SM280-MA | 160 | 280 | 500 | 160 | 218 | 5 |
222SM280-MA | 157 | 280 | 540 | 140 | 200 | 5 |
230SM300-MA | 108 | 300 | 480 | 121 | 186 | 4 |
231SM300-MA | 184 | 300 | 540 | 176 | 225 | 5 |
222SM300-MA | 214 | 300 | 580 | 150 | 212 | 5 |
Applications of Split spherical roller bearing:
• Bucket wheel excavators and reclaimers
• Winches and sheaves
• Worm conveyors
• Bucket conveyors and belt conveyors
• Mixing and stirring plant
• Mills and crushers
• Sintering plant, drum type kilns
• Fans and ventilators
• Dust extraction plant
• Drive and transmission shafts
