Product Details
Place of Origin: China
Brand Name: SFT
Model Number: ZKLN0619-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Seals Type: |
Open ,2RS ,2Z |
Hardness: |
HR60-65 |
Cage: |
Steel Cage |
Application: |
Machinery |
Structure: |
Angular Contact |
Bearing Cage: |
Nylon;brass;steel Or Phenolic |
Seals Type: |
Open ,2RS ,2Z |
Hardness: |
HR60-65 |
Cage: |
Steel Cage |
Application: |
Machinery |
Structure: |
Angular Contact |
Bearing Cage: |
Nylon;brass;steel Or Phenolic |

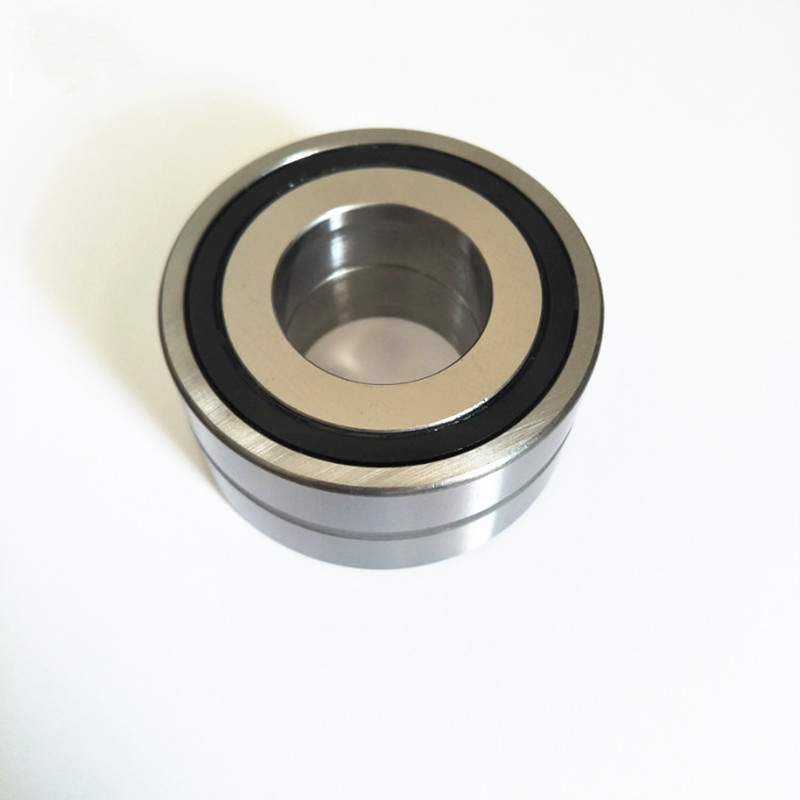

Ball Screw Support Angular Contact Ball bearings
Product Description of Angular Contact Ball Bearings :
Axial angular contact ball bearings are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions. Contact seals protect the rolling element system against contamination and moisture. For higher speeds, non-contact minimal gap seals can be used.
Working principle:
It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
Specifications
| Type | Angular Contact Ball Bearing | Dynamic load capacity: | 127 kN | |
| Model No. | ZKLN0619 2RS PE | Static load capacity: | 98 kN | |
| Bore diameter: | 6 mm | Limiting speed | 5600RPM | |
| Outside diameter: | 19 mm | Reference speed | 5600RPM | |
| Overall width: | 12 mm | Cage material: | Polyamide | |
| Weight: | 0.02 KG | Bearing material: | Chrome Steel | |
| Clearance: | Normal | Price | contact us |
Angular contact ball bearing Feature:
High precision
Low operating friction
high limiting speed
Anti-vibration
Long life
higher Load capacities
Wear-resistant
