Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SBPF208
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Keywords: |
Flanged Ball Bearing Unit SBPF208-25 |
Type: |
Pillow Block |
Housing Material: |
Cast Iron/Pressed Steel |
Application: |
Machinery |
Noise Level: |
Z1 Z2 Z3 Z4 |
Feature: |
High Precision |
Keywords: |
Flanged Ball Bearing Unit SBPF208-25 |
Type: |
Pillow Block |
Housing Material: |
Cast Iron/Pressed Steel |
Application: |
Machinery |
Noise Level: |
Z1 Z2 Z3 Z4 |
Feature: |
High Precision |

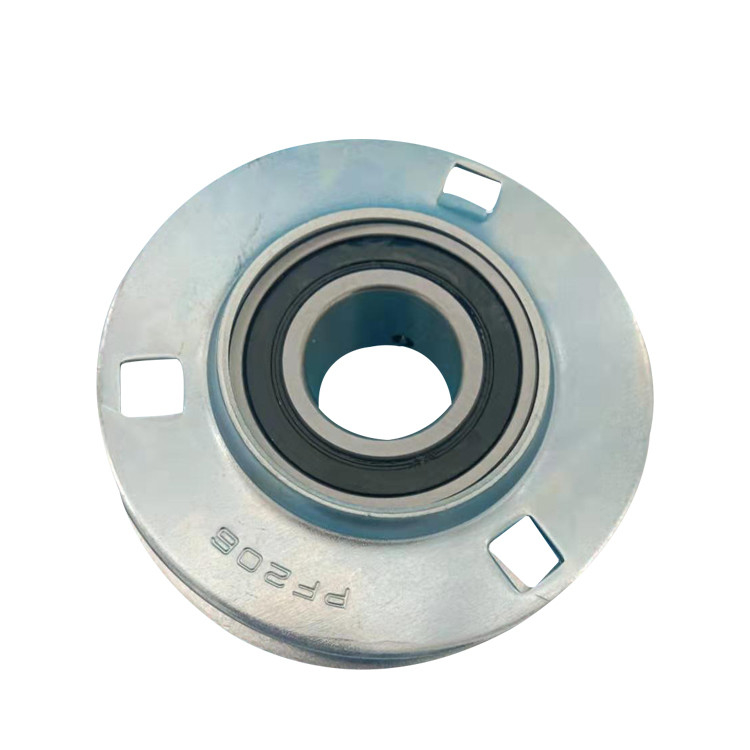

SBPF208 Pillow Block Ball Bearing
Pillow Block Ball Bearing Introduction:
Pillow block bearings SBPF208-25 are designed to fit into bearing housings. They are often sold when assembled
into a suitable bearing housing but may also be bought alone. They have the characteristic of
being self aligning and can be easily mounted in a housing block. The housing is available in various
configurations.Pillow block bearing with housing is a bearing unit which is with the rolling bearing and housing. Most of the insert bearing with housing are made of outer diameter sphere, mounted together with the
bearing housing having a spherical bore. Various forms of structure, good versatility and interchange ability.
The pillow block ball bearing is composed of a single row of deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support, widely used in various of mechanical equipment, esp.agriculture, textile and printing machinery.
Applications of Pillow Block Bearing SBPF208-25
Insert & Pillow Block Bearings and housing unit SBPF208-25 are used in motors, chain belts, automobiles, chain wheels, mining, metallurgy, mechanical transmission dyeing, chemical industry, textile machinery,
agricultural machinery, and machines for food processing and packing.
Stainless Steel Pillow Block Bearings are widely used for electrical equipment,
medical apparatus and instruments,house appliances,food machinery,chemical,light industry and
light textile.
Bearing unit | Dimensions (mm) | screws | SAPFL2 | SBPFL2 | Housing No. | ||||||||||||
d | a | e | m | s | t | f(min) | b1 | n | Bearing No. | Mass (kg) | b | n | Bearing No. | Mass (kg) | |||
SAPF201 | 12 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA201 | 0.3 | 22 | 6 | SB201 | 0.27 | PFL203 |
SBPF201 | 12 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA201 | 0.3 | 22 | 6 | SB201 | 0.27 | PFL203 |
SAPF202 | 15 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA202 | 0.3 | 22 | 6 | SB202 | 0.27 | PFL203 |
SBPF202 | 15 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA202 | 0.3 | 22 | 6 | SB202 | 0.27 | PFL203 |
SAPF203 | 17 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA203 | 0.3 | 22 | 6 | SB203 | 0.27 | PFL203 |
SBPF203 | 17 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | M6 | 28.6 | 6.5 | SA203 | 0.3 | 22 | 6 | SB203 | 0.27 | PFL203 |
SAPF204 | 20 | 90 | 71.5 | 16 | 9 | 4 | 56 | M8 | 31 | 7.5 | SA204 | 0.33 | 25 | 7 | SB204 | 0.33 | PFL204 |
SBPF204 | 20 | 90 | 71.5 | 16 | 9 | 4 | 56 | M8 | 31 | 7.5 | SA204 | 0.33 | 25 | 7 | SB204 | 0.33 | PFL204 |
SAPF205 | 25 | 95 | 76 | 18 | 9 | 4 | 60 | M8 | 31 | 7.5 | SA205 | 0.42 | 27 | 7.5 | SB205 | 0.38 | PFL205 |
SBPF205 | 25 | 95 | 76 | 18 | 9 | 4 | 60 | M8 | 31 | 7.5 | SA205 | 0.42 | 27 | 7.5 | SB205 | 0.38 | PFL205 |
SAPF206 | 30 | 113 | 90.5 | 18 | 11 | 5.2 | 71 | M10 | 35.7 | 9 | SA206 | 0.65 | 30 | 8 | SB206 | 0.62 | PFL206 |
SBPF206 | 30 | 113 | 90.5 | 18 | 11 | 5.2 | 71 | M10 | 35.7 | 9 | SA206 | 0.65 | 30 | 8 | SB206 | 0.62 | PFL206 |
SAPF207 | 35 | 122 | 100 | 20 | 11 | 5.2 | 81 | M10 | 38.9 | 9.5 | SA207 | 0.9 | 32 | 8.5 | SB207 | 0.82 | PFL207 |
SBPF207 | 35 | 122 | 100 | 20 | 11 | 5.2 | 81 | M10 | 38 | 9.5 | SA207 | 0.9 | 32 | 8.5 | SB207 | 0.82 | PFL207 |
SAPF208 | 40 | 148 | 119 | 21 | 13.5 | 6.8 | 91 | M12 | 43.7 | 11 | SA208 | 1.15 | 34 | 9 | SB208 | 1.1 | PFL208 |
SBPF208 | 40 | 148 | 119 | 21 | 13.5 | 6.8 | 91 | M12 | 43.7 | 11 | SA208 | 1.15 | 34 | 9 | SB208 | 1.1 | PFL208 |
