Product Details
Place of Origin: China
Brand Name: SFT
Model Number: uk 209
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Name: |
Zinc Alloy Pillow Block Bearing |
Type: |
Pillow Block |
Housing Material: |
Cast Iron HT200,stainless Steel |
Application: |
Machinery |
Feature: |
High Precision |
Bearing Material: |
Chrome Steel |
Name: |
Zinc Alloy Pillow Block Bearing |
Type: |
Pillow Block |
Housing Material: |
Cast Iron HT200,stainless Steel |
Application: |
Machinery |
Feature: |
High Precision |
Bearing Material: |
Chrome Steel |

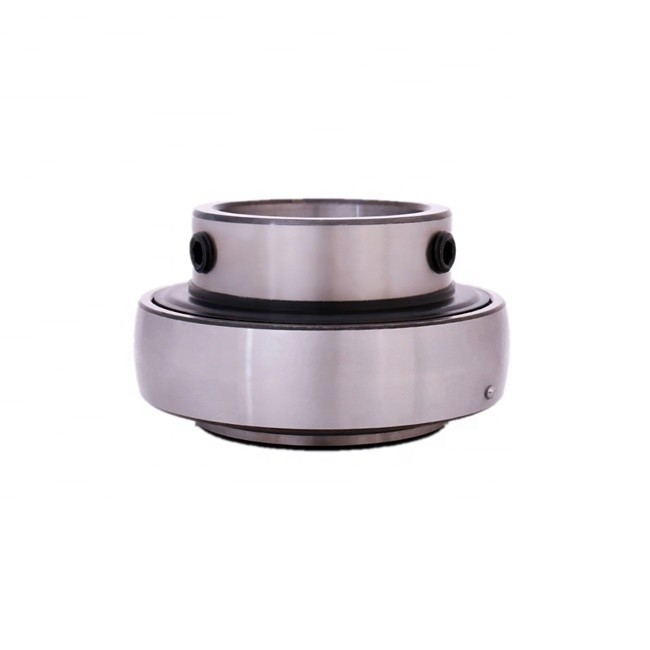

pillow block insert bearings uk209
Insert ball bearing technic:
UC, RB, UCX, NA, HC, UK, ER, SER, SA, SB, NAA, CS
Size from: 201 to 218, 305 to 318
Material: Stainless, Chrome steel, plastic
The inner hole is in metric and inch size according to different markete
Can be with or without grease goove on ourter ring
Can be with or without anti-rotation ball (pin)
Pillow block bearing (puter spherical ball bearing) is actually the deep groove ball bearing a form, characteristic is its outer diameter for spherical surface, can match the bearing of the corresponding concave spherical self-aligning effect within the outer spherical bearing is suitable for the required equipment and parts of simple situation, such as used for agricultural machinery, transportation systems or on construction machinery.
Is mainly used to bear radial direction load primarily radial and axial loads, and should not be commonly alone bear axial load, the bearing can be installed separately inner ring (with full set of roller and retainer) and outer ring. This kind of bearings are not allowed to have inclined shaft relative shell, under radial load appointment will generate additional axial force.
Bearing No. | d | D | Bi | Be | n | m | G | ds | Weight |
mm | (kg) | ||||||||
UC202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5×0.8 | 0.14 |
UC203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5×0.8 | 0.13 |
UC204 | 20 | 47 | 31 | 17 | 12.3 | 18.7 | 5 | M6×1.0 | 0.18 |
UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6×1.0 | 0.22 |
UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6×1.0 | 0.34 |
UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8×1.0 | 0.52 |
UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8×1.0 | 0.68 |
UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8×1.0 | 0.78 |
UC210 | 50 | 90 | 51.6 | 22 | 19 | 32.6 | 10 | M10×1.25 | 0.85 |
UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10×1.25 | 1.22 |
UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10×1.25 | 1.65 |
UC213 | 65 | 120 | 65.1 | 29 | 25.4 | 39.7 | 10 | M10×1.25 | 1.96 |
UC214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12×1.5 | 2.06 |
UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12×1.5 | 2.3 |
UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 12 | M12×1.5 | 2.79 |
UC217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 12 | M12×1.5 | 3.59 |
UC218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 12 | M12×1.5 | 4.45 |
UC220 | 100 | 180 | 108 | 41 | 4.56 | ||||
UK209 Pillow block bearing UK series
Bearing Model | Dimension (mm) | Weight(Kg) |
Dynamic Load Cr(KN) |
Static Load Cor(KN) |
Limit Speed (r/min) |
||||||||
New | Old | d0 | dZ | D | D1 | B3 | B | B2 | C | ||||
UK205+H2305 | 290504 | 20 | 25 | 52 | 38 | 35 | 26 | 8 | 17 | 0.25 | 10.78 | 6.98 | 3400 |
UK206+H2306 | 290505 | 25 | 30 | 62 | 45 | 38 | 28 | 8 | 19 | 0.36 | 14.97 | 10.04 | 2800 |
UK207+H2307 | 290506 | 30 | 35 | 72 | 52 | 43 | 30 | 9 | 20 | 0.57 | 19.75 | 13.67 | 2400 |
UK208+H2308 | 290507 | 35 | 40 | 80 | 58 | 46 | 31 | 10 | 21 | 0.74 | 22.71 | 15.94 | 2200 |
UK209+H2309 | 290508 | 40 | 45 | 85 | 65 | 50 | 33 | 11 | 22 | 0.83 | 24.36 | 17.71 | 1900 |
UK210+H2310 | 290509 | 45 | 50 | 90 | 70 | 55 | 35 | 12 | 24 | 0.97 | 26.98 | 19.84 | 1800 |
UK211+H2311 | 290510 | 50 | 55 | 100 | 75 | 59 | 39 | 12 | 25 | 1.26 | 33.37 | 25.11 | 1600 |
UK212+H2312 | 290511 | 55 | 60 | 110 | 80 | 62 | 41 | 13 | 27 | 1.59 | 36.74 | 27.97 | 1500 |
Application of pillow blcok bearing:
Pillow Block Bearing are widely used in automobile, electrical. (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines) .Pillow Block Bearing used in equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries
