Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 3304
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Thickness: |
22.2mm |
Number Of Row: |
Single Row |
Seals Type: |
Open Bearing, 2RS Bearing, Zz |
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Hardness: |
58-63HRC |
Cage Material: |
Nylon Cage ,metal Cage |
Thickness: |
22.2mm |
Number Of Row: |
Single Row |
Seals Type: |
Open Bearing, 2RS Bearing, Zz |
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Hardness: |
58-63HRC |
Cage Material: |
Nylon Cage ,metal Cage |

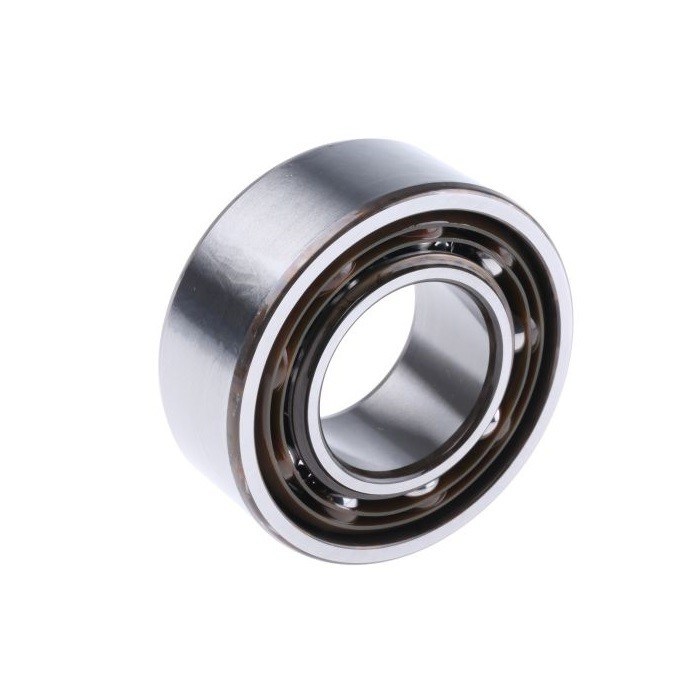

supply angular contact ball bearing 3304 3304 A/C3 size 20x52x22.2mm skateboard bearings
Bearing Description of Angular Contact Ball Bearing:
Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient, Retainers are made of brass, synthetic resins or others subject to indive dual bearing features and application conditions.
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Angular contact ball bearings are available as:
single row angular contact ball bearings
double row angular contact ball bearings
four-point contact ball bearings
Super-precision angular contact ball bearings
Double row cam rollers
Hub bearing units
Specifications:angular contact ball bearing | |
Inside diameter | 20mm |
Outside diameter | 52mm |
Overall width | 22.2mm |
Cage material | nylon cage bearing, metal cage bearing |
Bearing number of row | double row bearing |
Bearing precision | high precision bearing p4 p5 p6 p0 |
Closure type | Open bearing, sealed bearing 2RS |
Four point angular contact ball bearing catalogue:
BEARING P.N. | Dimensions | ||
d (mm) | D (mm) | B (mm) | |
QJ 318 N2MA * | 90 | 190 | 43 |
QJ 219 N2MA * | 95 | 170 | 32 |
QJ 319 N2MA * | 95 | 200 | 45 |
QJ 220 N2MA * | 100 | 180 | 34 |
QJ 320 N2MA * | 100 | 215 | 47 |
QJ 1021 N2MA | 105 | 160 | 26 |
QJ 1022 N2MA | 110 | 170 | 28 |
QJ 222 N2MA * | 110 | 200 | 38 |
QJ 322 N2MA * | 110 | 240 | 50 |
QJ 224 N2MA * | 120 | 215 | 40 |
QJ 324 N2MA * | 120 | 260 | 55 |
QJ 226 N2MA * | 130 | 230 | 40 |
QJ 326 N2MA * | 130 | 280 | 58 |
QJ 228 N2MA * | 140 | 250 | 42 |
QJ 328 N2MA * | 140 | 300 | 62 |
