Home > products > Angular Contact Ball Bearing > 34*85*19/30mm Angular Contact Bearing 7209A 7209AD83 For Automotive

34*85*19/30mm Angular Contact Bearing 7209A 7209AD83 For Automotive

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 7209A 7209AD

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

34*85*19/30mm Angular Contact Bearing

,

7209A Angular Contact Bearing

,

7209AD83 Angular Contact Bearing

Feature:
Low Noise
Number Of Row:
Single Row
Size:
34*85*19/30mm
Seals Type:
Open
Weight:
0.61kg
Cage:
Nylon Cage.Steel Cage.Brass Cage
Feature:
Low Noise
Number Of Row:
Single Row
Size:
34*85*19/30mm
Seals Type:
Open
Weight:
0.61kg
Cage:
Nylon Cage.Steel Cage.Brass Cage
34*85*19/30mm Angular Contact Bearing 7209A 7209AD83 For Automotive



Angular Contact Bearing 7209A 7209AD83



Bearing Description:

Angular Contact Ball Bearing, which is similar to other ball bearings, angular contact ball bearing are compose of inner and outer races, ball complement and bearing cage; however, different to other ball bearings like a deep groove ball bearing, an angular contact ball bearing is designed with axially asymmetric race.
As a result, angular contact ball bearings are more suitable for supporting "combined loads" (loading in both the radial and axial directions); pure axial-load supporting in one direction is also possible. Generally speaking, the supporting capability for an axial load; and at the same time, the smaller the supporting capability for a radial load.
According to angular contact ball bearing manufacturers, single-row, and double-row angular contact ball bearings are both popular ones in the market. A single row angular contact ball bearing is suitable for carrying axial-load acting in one direction only; as a result, they are usually used in pairs or multi-arrangement in many applications. A double row angular contact ball bearing, however, is suitable for both an axial-load and a radial-load in both directions.



Angular Contact Ball bearings are composed of Inner rings,Outer Rings,Balls and Cage.
1. Ring 's Material: Bearing Steel ZGCr15/GCr15
2. Balls' Material: Carbon chromium steel/Si3N4
3. Cage Material: Phenolic,Nylon,Plastic,Brass etc.
4. Angle: C -15°contact angle, AC-25°contact angle, B-40°contact angle
5. Tolerance Class: ABEC7,ABEC9 (P4,P2)
6. Preload: A-Light Preload , B-Medium Preload, C-Heavy Preload

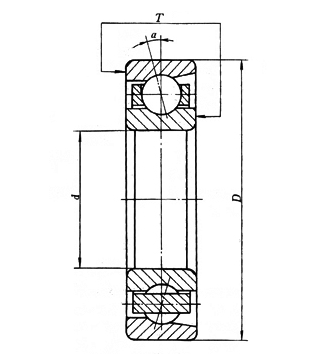

Drawing:
34*85*19/30mm Factory Supply Angular Contact Bearing 7209A 7209AD83 Angular Contact Ball Bearing 7209A















































Modle number Specification(mm)
dxDxB
Weight
7001C 12*28*8 0.024
7002C 15*32*9 0.035
7003C 17*35*10 0.045
7004C 20*42*12 0.079
7005C 25*47*12 0.091

Single row angular contact ball bearings, machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, filling machine, low noise type cooling tower, electrical equipment, coating equipment, machine tool trough plate, arc welding machine

Double row angular contact ball bearing, oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric, square box, gravity type spray gun, wire stripping machine, axle shaft equipment, chemical machinery, testing analysis.



More Model Number We can Supply

New Model Old Model ID(mm) OD(mm) Width(mm) Weight(KG)
5200 3200 10 30 14.3 0.049
5201 3201 12 32 15.9 0.057
5202 3202 15 35 15.9 0.064
5203 3203 17 40 17.5 0.096
5204 3204 20 47 20.6 0.153
5205 3205 25 52 20.6 0.175
5206 3206 30 60 23.8 0.286
5207 3207 35 72 27 0.436
5208 3208 40 80 30.2 0.59
5209 3209 45 85 30.2 0.64
5210 3210 50 90 30.2 0.689
5211 3211 55 100 33.3 0.986
5212 3212 60 110 38.1 1.27
5213 3213 65 120 39.7 1.57
5214 3214 70 125 41.3 1.8
5215 3215 75 130 44.4 1.9
