Product Details
Place of Origin: China
Brand Name: SFT
Model Number: MI700
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Max. Indexing (cycle/min): |
300 |
Material: |
Chrome Steel |
Vibration: |
ZV1, ZV2, ZV3, Or As Requested |
Torque Capacity(Nm): |
17600 |
Weight (kg): |
46.5 |
Surface Hardness: |
HRC60-62 |
Max. Indexing (cycle/min): |
300 |
Material: |
Chrome Steel |
Vibration: |
ZV1, ZV2, ZV3, Or As Requested |
Torque Capacity(Nm): |
17600 |
Weight (kg): |
46.5 |
Surface Hardness: |
HRC60-62 |

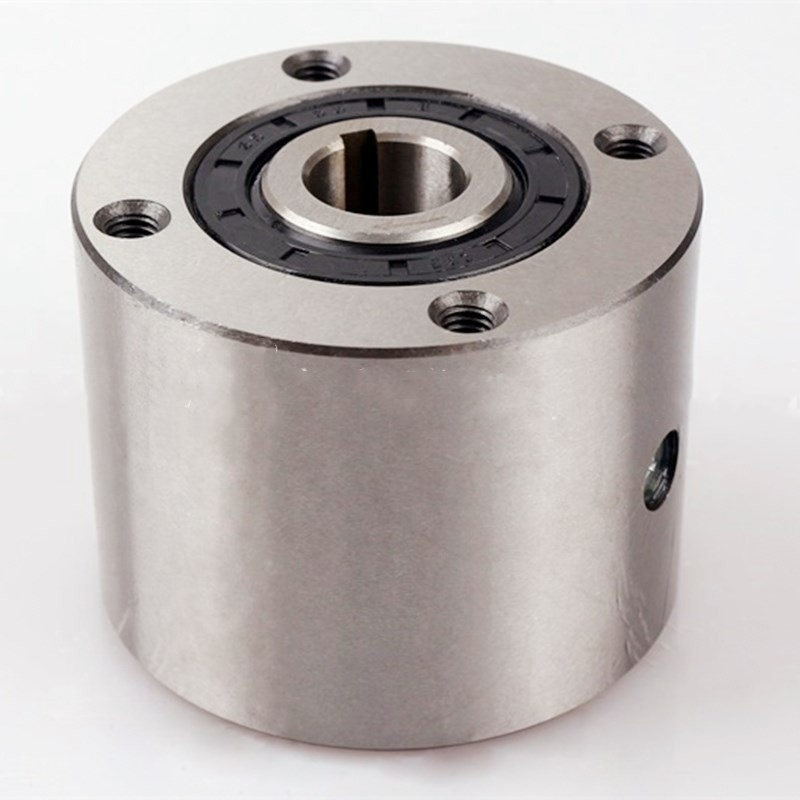

MG800 MI700 Bearing One Way Cam Clutch ( Indexing Clutch ) Sprag One Way Bearing Backstop Clutch
Features of One way cam clutch
Mainly used for indexing applications
Delivers high precision intermittent feed
Perfect for medium- and low-speed indexing applications where the feed length is short
Also excellent for applications subject to load changes in continuous engagement operations (overrunning)
| SPECIFICATIONS | |
| Item | MI800 one way cam clutch |
| Precision | P6 |
| Type | cam |
| Bore size (mm) | 110 |
| Outer race (mm) | 250 |
| Torque (KN) | 17600Nm |
| Max. Indexing (cycle/min) | 300 |
| Drag Torque(Nm) | 8.33 |
| Weight (kg) | 46.5kg |
| Package | wooden box or customizable |
| Delivery time | 30days |
| L/C, T/T,Western Union | |
PARAMETER LIST of one -way cam clutches
| Model | Torque | Drag | Max. Overrunning |
Max. | Bore Size | PCD | H-M No.of |
Weight | ||||||||
| Capacity | Torque | (r/min) | Indexing | A | B | C | E | F | S |
Tapped Holes ×Size×Pitch |
(kg) | |||||
| (Nm) | (Nm) |
Inner Race |
Outer Race |
(cycle/ min) |
Dia. (H7) |
Keyway | (h7) | D | ||||||||
| MG 300 | 314 | 0.23 | 2800 | 900 | _ | 19 | 5x2 | 63 | 77 | 60 | 66 | 10.4 | 28.5 | 13 | 4xM6xP1.0 | 1.8 |
| MI 300 | 0.31 | 50 | _ | 300 | ||||||||||||
| MG 400 | 539 | 0.29 | 2600 | 800 | _ | 22 | 5x2 | 70 | 88 | 67 | 73 | 10.7 | 31.7 | 16 | 4XM8xP1.25 | 2.7 |
| MI 400 | 0.38 | 50 | _ | 300 | ||||||||||||
| MG 500 | 1620 | 0.51 | 2400 | 800 | _ | 31.5 | 7x3 | 89 | 108 | 86 | 92 | 12.3 | 44.4 | 16 | 4XM8xP1.25 | 5 |
| MI 500 | 0.68 | 50 | _ | 300 | ||||||||||||
| MG 600 | 3140 | 0.85 | 2100 | 700 | _ | 50 | 12x3.5 | 95 | 136 | 92 | 120 | 12.8 | 69.8 | 16 | 6xM8xP1.25 | 8.6 |
| MI 600 | 1.54 | 30 | _ | 300 | ||||||||||||
| MG 700 | 5880 | 1.7 | 1500 | 500 | _ | 70 | 18x6 | 127 | 180 | 124 | 160 | 19.8 | 101.5 | 20 | 6xM10xP1.5 | 19.5 |
| MI 700 | 2.63 | 30 | _ | 300 | ||||||||||||
| MG 750 | 9500 | 3.43 | 1800 | 600 | _ | 85 | 24x6 | 153 | 200 | 150 | 175 | 75 | 110 | 25 | 8xM14xP2.0 | 37 |
| MI 750 | 4.12 | 30 | _ | 300 | ||||||||||||
| MG 800 | 17600 | 5.39 | 1300 | 475 | _ | 110 | 28x7 | 158 | 250 | 155 | 220 | 77.5 | 140 | 25 | 8xM16xP2.0 | 46.5 |
| MI 800 | 8.33 | 20 | _ | 300 | ||||||||||||
| MG 900 | 24500 | 6.77 | 1200 | 400 | _ | 135 | 35x9 | 165 | 300 | 160 | 265 | 80 | 170 | 32 | 10xM16xP2.0 | 70.5 |
| MI 900 | 9.41 | 20 | _ | 300 | ||||||||||||
| MG 1000 | 33800 | 8.14 | 1200 | 325 | _ | 160 | 38x10 | 188 | 370 | 180 | 325 | 90 | 200 | 32 | 12xM16xP2.0 | 108.5 |
| MI 1000 | 12.74 | 20 | _ | 300 | ||||||||||||
| MG 1100 | 78400 | 15 | 350 | _ | _ | 185 | 45x14 | 260 | 470 | 250 | 415 | 125 | 260 | 40 | 12xM20xP2.5 | 250 |
| MI 1100 | 22.15 | 20 | _ | 150 | ||||||||||||
| MG 1200 | 95100 | 17.64 | 300 | _ | _ | 200 | 45x14 | 260 | 500 | 250 | 440 | 125 | 280 | 45 | 12xM24xP3.0 | 280 |
| MI 1200 | 27.54 | 20 | _ | 150 | ||||||||||||
| MG 1300 | 176000 | 18.72 | 250 | _ | _ | 250 | 56x17.5 | 280 | 600 | 260 | 530 | 130 | 340 | 50 | 12xM30xP3.5 | |
| MI 1300 | 28.13 | 20 | _ | 150 | ||||||||||||
