Product Details
Place of Origin: China
Brand Name: SFT
Model Number: KP000
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Vibration: |
Z1V1 Z2V2 Z3V3 |
Material: |
Chrome Steel GCR15 |
Precision Rating: |
P5, ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
Application: |
Machinery |
Housing Material: |
Iron Cast |
Hardness: |
60-65HRC |
Vibration: |
Z1V1 Z2V2 Z3V3 |
Material: |
Chrome Steel GCR15 |
Precision Rating: |
P5, ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
Application: |
Machinery |
Housing Material: |
Iron Cast |
Hardness: |
60-65HRC |

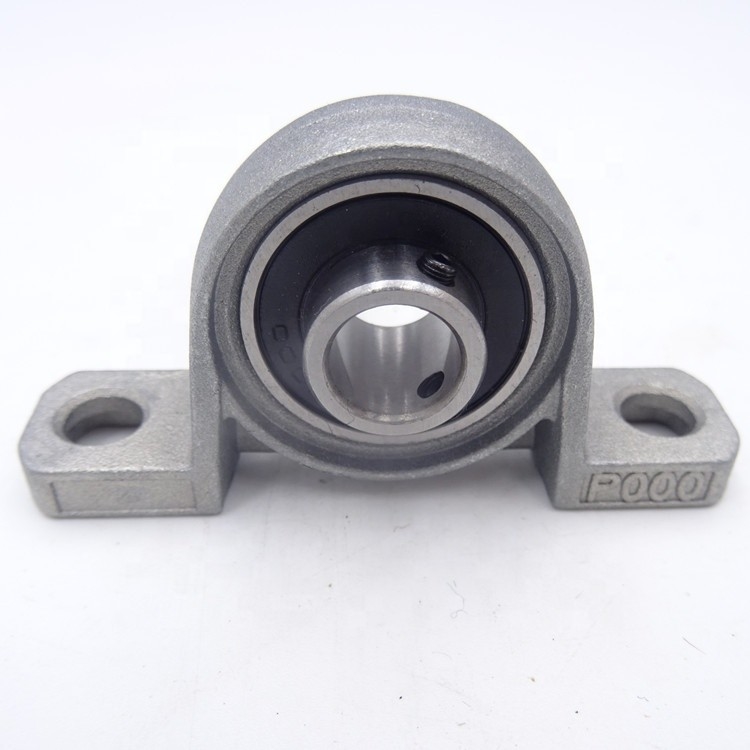

KP000 Zinc Alloy Mounted Pillow Block Bearing for General Machinery
Zinc pillow block bearing is a new type of bearing, to join other elements for zinc based alloy bearing.Often add alloy elements are aluminum, copper, magnesium, cadmium, lead, titanium, etc.
Zinc base alloy low melting point, good liquidity, easy fusion welding, brazing and plastic processing, in the atmosphere corrosion, deformed material easy to recycle and remelting;But low creep strength, prone to natural aging changes size.The melting method, die casting and pressure processing timber.According to the manufacturing process can be divided into cast zinc-base alloy and deformation of zinc base alloy.
Feature:
1.Shaft fastening: 2 grub screws, inner ring extended on both sides
2.Material: ultra clean AISI 52100 chrome steel
3.It is suitable for high loads and speeds, also in case of alternating direction of rotation
4.Grease: Chevron SRI-2 or food industry FM 222
5.Working Temperature range: -20°C to +120°C Celsius
Application:
Widely used in Paper machines, conveyor equipment, rotary kilns, drums, tube mills, converters, large electrical machines, rail vehicles, the mining, metallurgical, chemical industry, agriculture, transportation and other machinery.
Unit No. | Shaft d | Dimensions (mm) | Bolt Size mm | Bearing No. | Housing No. | Weight | |||||||||
(mm) | H | J | A2 | A1 | A | N | L | s | Z | A3 | (kg) | ||||
KP000 | 10 | 18 | 67 | 53 | 16 | 6 | 35 | 7 | 4 | 14 | 28.3 | M6 | K000 | P000 | 0.03 |
KP001 | 12 | 19 | 71 | 56 | 16 | 6 | 38 | 7 | 4 | 14.5 | 30 | M6 | K001 | P001 | 0.04 |
KP002 | 15 | 22 | 80 | 63 | 16 | 7 | 43 | 7 | 4.5 | 16.5 | 33 | M6 | K002 | P002 | 0.05 |
KP003 | 17 | 24 | 85 | 67 | 18 | 7 | 47 | 7 | 5 | 17.5 | 36 | M6 | K003 | P003 | 0.07 |
KP004 | 20 | 28 | 100 | 80 | 20 | 9 | 55 | 10 | 6 | 21 | 40 | M8 | K004 | P004 | 0.11 |
KP005 | 25 | 32 | 112 | 90 | 20 | 10 | 62 | 10 | 6 | 22.5 | 41 | M8 | K005 | P005 | 0.15 |
KP006 | 30 | 36 | 132 | 106 | 26 | 11 | 70 | 13 | 6.5 | 24.5 | 43 | M10 | K006 | P006 | 0.21 |
.
