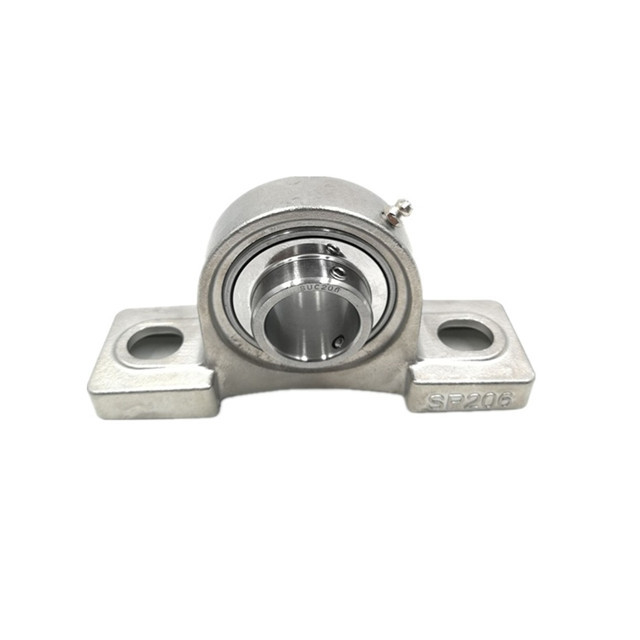

Waterproof Stainless Steel Pillow Block Housing SP208 SUC208

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: UC208

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Pillow Block Housing SP208

,

Pillow Block Housing SUC208

,

SUC208 pillow block flange bearing

Vibration:
Z1V1 Z2V2 Z3V3
Housing Type:
2 Bolt Flange
Locking Device:
Set Screw
Bearing Material:
Stainless Ball Bearing
Housing Material:
Iron Cast
Bore Size:
40mm
Vibration:
Z1V1 Z2V2 Z3V3
Housing Type:
2 Bolt Flange
Locking Device:
Set Screw
Bearing Material:
Stainless Ball Bearing
Housing Material:
Iron Cast
Bore Size:
40mm
Waterproof Stainless Steel Pillow Block Housing SP208 SUC208

waterproof stainless steel housing pillow block bearings SP208 SUC208



Product Description



Pillow block bearings are mounted type bearings available in flanged & upright styles in different inch & metric sizes. Pillow block bearings are designed to support shafts. Features include mounting surfaces parallel to shaft axes & elongated bolt holes in bases or feet of units for adjustment & mounting of pillow block bearing. Pillow block bearings are available in bore sizes ranging from 1/2 in. to 10 in.

Feature:

1) Compact and light weight: The feature permits high performance and space-saving machine and equipment

2) Easy and quick to mount: Eccentric locking collar and setscrew ensure fast and positive locking of bearings to the shaft

3) High sealing efficiency: Bearings are effectively sealed with end caps for added protection of dust and humid.

A pillow block (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.



A pillow block usually refers to a housing with an included anti-friction bearing. A pillow block refers to any mounted bearing wherein the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the center line of the mounting holes, as contrasted with various types of flange blocks or flange units. A pillow block may contain a bearing with one of several types of rolling elements, including ball, cylindrical roller, spherical roller, tapered roller, or metallic or synthetic bushing. The type of rolling element defines the type of pillow block. These differ from "plummer blocks" which are bearing housings supplied without any bearings and are usually meant for higher load ratings and a separately installed bearing.





Specifications: UCP208 pillow block bearing
Bearing type pillow block bearing
Housing type 2-bolt flange
Bore diameter 40 mm
Total length 184mm
Bearing housing P208
Insert ball bearing UC208
Locking device Set Screw locking
Seal type Contact Seal with Flinger
Bore type Round
Bearing housing material cast iron housing
Application agricultrual machine



UCF bearing pillow block bearing size:

Bearing No Bore size Dimension Bearing NO. Housing NO.
a e i g l s
UCF201 12 86 64 15 11 25.5 12 UC201 F201
UCF202 15 86 64 15 11 25.5 12 UC202 F202
UCF203 17 86 64 15 11 25.5 12 UC203 F203
UCF204 20 86 64 15 11 25.5 12 UC204 F204
UCF205 25 95 70 16 13 27 12 UC205 F205
UCF206 30 108 83 18 13 31 12 UC206 F206
UCF207 35 117 92 19 15 34 14 UC207 F207
UCF208 40 130 102 21 15 36 16 UC208 F208
UCF209 45 137 105 22 16 38 16 UC209 F209
UCF210 50 143 111 22 16 40 16 UC210 F210
UCF211 55 162 130 25 18 43 19 UC211 F211
UCF212 60 175 143 29 18 48 19 UC212 F212
UCF213 65 187 149 30 22 50 19 UC213 F213
UCF214 70 193 152 31 22 54 19 UC214 F214
UCF215 75 200 159 34 22 56 19 UC215 F215
UCF216 80 208 165 34 22 58 23 UC216 F216
UCF217 85 220 175 36 24 63 23 UC217 F217
UCF218 90 235 187 40 24 68 23 UC218 F218
