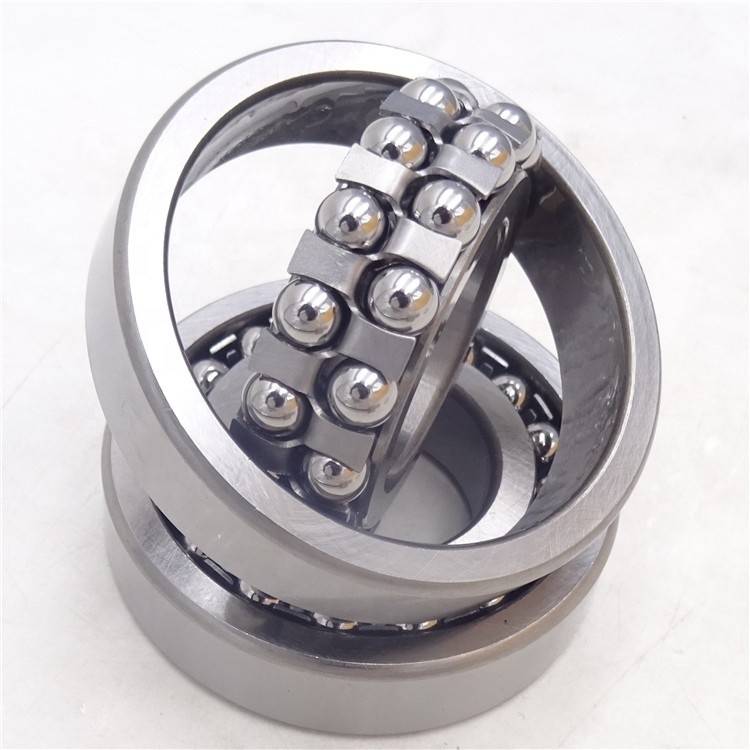

1207 C3 Self Aligning Ball Bearing Super Precision Steel Cage

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 1207 C3

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

1207 C3 Self Aligning Ball Bearing

,

Steel Cage Self Aligning Ball Bearing

,

1207 C3 self aligning bearing

Type:
BALL, Ceramic Self-Aligning Ball Bearing
Number Of Row:
Double Row
Ball Material:
ZrO2/Si3N4/SiC
Cage:
Steel Cage Nylon Cage Copper Cage
Seals Type:
OPEN ZZ 2RS RS, Open 2RS RS
Size:
10mmx30mmx9mm
Type:
BALL, Ceramic Self-Aligning Ball Bearing
Number Of Row:
Double Row
Ball Material:
ZrO2/Si3N4/SiC
Cage:
Steel Cage Nylon Cage Copper Cage
Seals Type:
OPEN ZZ 2RS RS, Open 2RS RS
Size:
10mmx30mmx9mm
1207 C3 Self Aligning Ball Bearing Super Precision Steel Cage

Self-aligning ball bearing 1207 C3 super precision bearing self aligning ball bearing​



Description of Self Aligning Ball Bearing :

Self-aligning ball bearing is a kind of double-row bearing with spherical outer ring raceway.It can be for the error,axial deformation and bearing and bearing seat deformation compensation,which allow axis around the center of the bearing deflection of 4 degree,the sealing self-aligning ball bearing can be compensation in 1.5 degree..The inner hole of the self-aligning ball bearing can be cylindrical,conical,bearing cannot be split.Basic types can be divided into 12,13,22 and 23 series.bearing inner hole taper of 1:12(suffix is K) can be installed directly to the conical shaft,can also be through a fixing sleeve is arranged on the cylinder axis.Also,there are both ends with sealing cover(suffix is 2RS)



M:Machined brass cage, ball centred; different designs and material grades are identified by a figure following the M, e.g. M2

TN9:Injection moulded snap-type cage of glass fibre reinforced polyamide 66, ball centred

C3 :Radial internal clearance greater than Normal

E :Optimized internal design

K :Tapered bore, taper 1:12

2RS1 :Sheet steel reinforced contact seal of acrylonitrile-butadiene rubber (NBR) on both sides of the bearing

TN :Injection moulded snap-type cage of polyamide 66, ball centred

VE294 :Annular groove and six lubrication holes in the inner ring



High performance self-aligning ball bearing data:

bearing code d D B C C0 Pu reference speed limiting speed mass
2203 E-2RS1TN9 17 40 16 8,84 2,2 0,12 - 12000 0,089
2203 ETN9 17 40 16 10,6 2,55 0,14 34000 24000 0,088
2204 E-2RS1TN9 20 47 18 12,7 3,4 0,18 - 10000 0,14
2204 ETN9 20 47 18 16,8 4,15 0,22 28000 20000 0,14
2210 E-2RS1KTN9 50 90 23 22,9 8,15 0,42 - 4800 0,57
2210 E-2RS1TN9 50 90 23 22,9 8,15 0,42 - 4800 0,57
2210 EKTN9 50 90 23 33,8 11,2 0,57 14000 9500 0,60
2210 ETN9 50 90 23 33,8 11,2 0,57 14000 9500 0,60
2215 EKTN9 75 130 31 58,5 22 1,12 9000 6300 1,50
2215 ETN9 75 130 31 58,5 22 1,12 9000 6300 1,60
2216 EKTN9 80 140 33 65 25,5 1,25 8500 6000 1,90
2216 ETN9 80 140 33 65 25,5 1,25 8500 6000 2,00



Self-aligning ball bearing application:

Motorcycles,Electrics,Electric Motors(Scooters),Electric Tools,Fans,Sports apparatus,Washing Machines,Dust

Collectors,Ventilators,Textile Machines,Running machines(Treadmills),Household Appliances,Water Pumps,Agricultural Machines,Precision Machineries,etc
