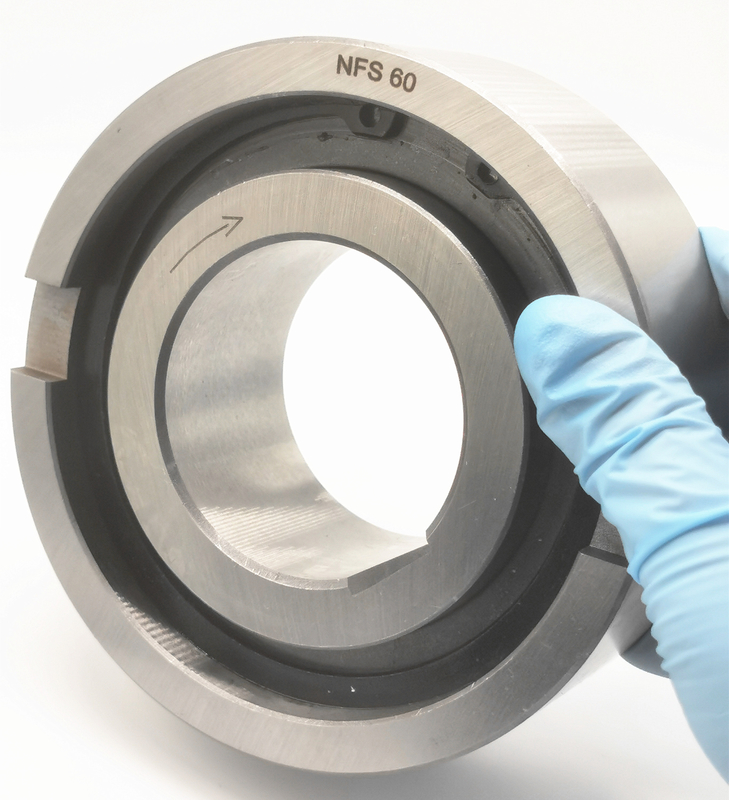

ASNU60 NFS60 Sprag Freewheel Cam Clutch One Way Bearing ASNU 60 NFS 60 60mmX130mmX46mm

Feature

Type AS is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be strong enough
To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

Dimensions and Capacities

NOTES:
AS6 without keyway. ØD = -0-0,009
AS8-12 keyway to DIN 6885.1.
Other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Mounting dimensions are identical to ball bearings series 62

-ASNU

Feature

Type ASNU is a roller type freewheel nonbearing supported. Bearings are required to support

axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal

outer diameter is the same as a series 63...Ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side

notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be

strong enough to not expand after assembly. This design can accept an axial misalignment of

inner and uter race of ± S/2.

Dimensions and Capacities

Notes:
ASNU8-12, ASNU200 keyway to DIN 6885. 1, other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
