Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 7207C
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Feature: |
Low Noise |
Number Of Row: |
Single Row, Single Row |
Seals Type: |
2RS, 2RS |
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Vibration: |
Z1V1 Z2V2 Z3V3 |
Cage: |
STEEL BRASS |
Feature: |
Low Noise |
Number Of Row: |
Single Row, Single Row |
Seals Type: |
2RS, 2RS |
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Vibration: |
Z1V1 Z2V2 Z3V3 |
Cage: |
STEEL BRASS |

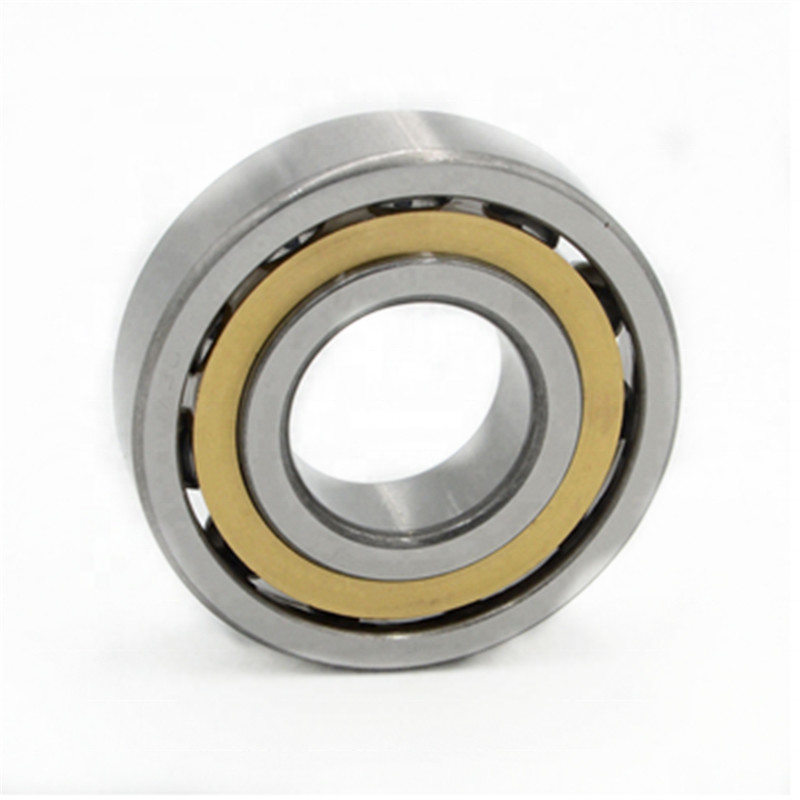

7207 bearing single row angular contact ball bearing 7207 bearing 7207C
Product Description
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Working principle:
It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
Typical applications:
They are mainly used for steel industry,mining&construction,papermaking machinery, wind turbines,semiconductors,machine tools,gearboxes,electric motors,pumps&compressors,injection moldingmachines.
Features:
1.Load capacities are higher than deep groove ball bearing of same dimensions.
2.Used for bearing radial-axial combined loads or pure thrust loads.
3.Low operating friction and high limiting speed.
| Bearing No. | Dimensions (mm) | Weight (kg) | |||
| d | D | B | |||
| 7212C | 7212AC | 60 | 110 | 22 | 0.80 |
| 7213C | 7213AC | 65 | 120 | 23 | 1.00 |
| 7214C | 7214AC | 70 | 125 | 24 | 1.10 |
| 7215C | 7215AC | 75 | 130 | 25 | 1.20 |
| 7216C | 7216AC | 80 | 140 | 26 | 1.45 |
| 7217C | 7217AC | 85 | 150 | 28 | 1.80 |
| 7218C | 7218AC | 90 | 160 | 30 | 2.25 |
| 7219C | 7219AC | 95 | 170 | 32 | 2.70 |
| 7220C | 7220AC | 100 | 180 | 34 | 3.25 |
| 7221C | 7221AC | 105 | 190 | 36 | 3.85 |
Ps: This is only a little part model number of our Trust Ball bearings, If you fail to find the one you need, please contact us directly. Thanks in advance.
Advantages:
1.Low friction, almost noiseless and high rolling speed
2.Easy to install
3.Simple structure ensures fast equipment
4.Optimised internal design
5.High load ratings
6.Increased limiting speed
7.High strength ball guided brass cage
8.High dimensional and running accuracy
9.Narrow axial clearances or preloads range
10.Universal facing in standard
