7020AC 7020ACDGA 7020 Ctp4 Single Row Angular Contact Ball Bearing 10015024mm

Name: 7020AC 7020ACDGA 7020 Ctp4 Single Row Angular Contact Ball Bearing 100*150*24mm
Brand: Shaanxi Fortune Industries Co.ltd
SKU: 7020AC
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 7020AC

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Ctp4 Single Row Angular Contact Ball Bearing, 7020AC Single Row Angular Contact Ball Bearing, 7020ACDGA Single Row Angular Contact Ball Bearing


Out Size:	150	Number Of Row:	Single Row, Single Row
Seal:	Sealed Or Open	Application:	Automotive.tractor.construction Machinery.rolling Mill
Vibration:	Z1V1 Z2V2 Z3V3	Cage:	STEEL BRASS

Out Size:	150
Number Of Row:	Single Row, Single Row
Seal:	Sealed Or Open
Application:	Automotive.tractor.construction Machinery.rolling Mill
Vibration:	Z1V1 Z2V2 Z3V3
Cage:	STEEL BRASS

7020AC 7020ACDGA 7020 Ctp4 Single Row Angular Contact Ball Bearing 100*150*24mm

Spindle bearing7020AC 7020ACDGA 7020 ctp4 single row angular contact ball bearing 100*150*24mm

Product Description

single row angular contact ball bearings can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable. They have features as below: (1)High load carrying capacity ;(2)Good running properties;(3)Easy mounting of universally matchable bearings

Spindle bearing7020AC 7020ACDGA 7020 ctp4 single row angular contact ball bearing 100*150*24mm

Bearing Number	d	D	B
7020AC	100	150	24
7021AC	105	160	26
7022AC	110	170	28
7024AC	120	180	28
7026AC	130	200	33
7028AC	140	210	33
7030AC	150	225	35
7032AC	160	240	38
7019AC	95	145	24
7018AC	90	140	24
7017AC	85	130	22
7016AC	80	125	22
7015AC	75	115	20

Working principle:

It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.

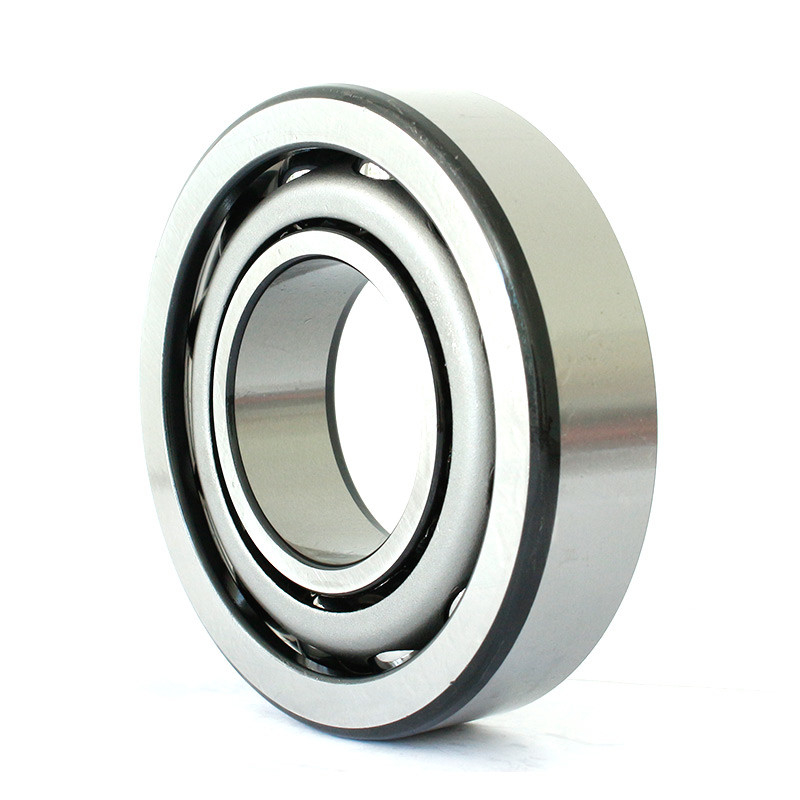

7020AC 7020ACDGA 7020 Ctp4 Single Row Angular Contact Ball Bearing 100*150*24mm 1
