Product Details
Place of Origin: China
Brand Name: SFT
Model Number: CKA3585
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Chrome Steel |
Bore Size: |
1 - 35 Mm |
Samples: |
Available |
Product Name: |
One Way Clutch |
Weight: |
0.70kg |
Surface Hardness: |
HRC60-62 |
Material: |
Chrome Steel |
Bore Size: |
1 - 35 Mm |
Samples: |
Available |
Product Name: |
One Way Clutch |
Weight: |
0.70kg |
Surface Hardness: |
HRC60-62 |
one way clutch bearing for textile equipment
One way clutch also named back stop,overrunning clutch,can overrun freely in one direction of rotation.Can be widely applicated in general industrial transmission machines,printer,textile machinery...etc.
CSK type-Bearing/freewheel.Dimensions identical to ball bearing series 62
As type-Roller type freewheel.Mounting dimensions similar to bearing series 62
ASNU type-Roller type freewheel.Outer race connection via press fit and/or face key
AA type-Roller type freewheel.Outer race connection via through screws
AE type-Oller type freewheel.Outer race connection via press fit and/or face key
DC type-Double cage sprag type freewheel.Delivered without inner and outer race
KI type-Mini freewheel delivered without outer race
GFKtype-Bearing/freewheel.Dimensions identical to ball bearing series 59

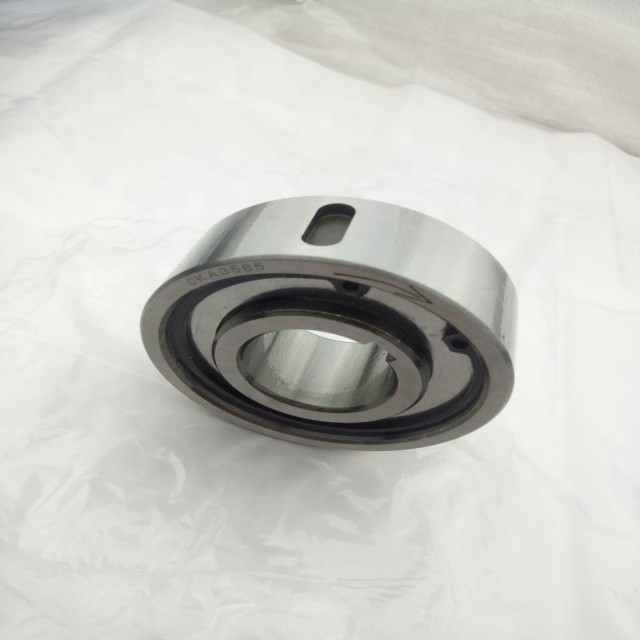

Specification of CKA3585 CK-A3585 one way clutch bearing for textile equipment
product name | CKA3585 CK-A3585 one way clutch bearing for textile equipment |
bearing number | CKA3585 |
size | 35*85*30mm |
weight | 0.70kg |
material | chrome steel |
package | color box or as customers' request |
OEM service | acceptable |
stock | 10000pcs |
warranty | 1 year |
application | textile equipment |
3]Related CKA3585 CK-A3585 one way clutch bearing for textile equipment
Model |
Nominal Torque |
Overrunning Limiting Speed (r/min) |
Dimension [mm] | Bearing | Weight | ||||||
Outer race | Inner race | ||||||||||
[N.m] |
Inner race |
Outer race |
D[h7] | B | bwxtw | d[h7] | C | bnxtn | [kg] | ||
CK-A1542 | 54 | 1750 | 500 | 42 | 23 | 3x1.8 | 15 | 24 | 3x1.4 | 6302 | 0.17 |
CK-A1747 | 75 | 1575 | 400 | 47 | 23 | 3x1.8 | 17 | 24 | 3x1.4 | 6304 | 0.21 |
CK-A2052 | 95 | 1400 | 400 | 52 | 23 | 3x1.8 | 20 | 24 | 3x1.4 | 6305 | 0.25 |
CK-A2562 | 145 | 1260 | 350 | 62 | 23 | 4x2.5 | 25 | 24 | 4x1.8 | 6306 | 0.35 |
CK-A3072 | 208 | 1050 | 300 | 72 | 23 | 5x3.0 | 30 | 24 | 5x2.3 | 6307 | 0.47 |
CK-A3580 | 340 | 815 | 200 | 80 | 28 | 8x4.0 | 35 | 30 | 6x2.8 | 6308 | 0.69 |
CK-A4090 | 462 | 700 | 200 | 90 | 28 | 8x4.0 | 40 | 30 | 6x2.8 | 6309 | 0.87 |
CK-A45100 | 783 | 560 | 200 | 100 | 28 | 8x4.0 | 45 | 30 | 6x2.8 | 6310 | 1.07 |
CK-A50110 | 850 | 525 | 180 | 110 | 28 | 10x5.0 | 50 | 30 | 8x3.3 | 6311 | 1.59 |
CK-A60130 | 1050 | 490 | 180 | 130 | 34 | 10x5.0 | 60 | 36 | 8x3.3 | 6312 | 2.16 |
CK-A65140 | 1224 | 490 | 180 | 140 | 34 | 10x5.0 | 65 | 36 | 10x3.3 | 6313 | 2.49 |
CK-A70150 | 1850 | 455 | 150 | 150 | 40 | 10x5.0 | 70 | 42 | 10x3.3 | 6314 | 3.36 |
CK-A75160 | 2140 | 455 | 150 | 160 | 40 | 12x5.0 | 75 | 42 | 12x3.3 | 6315 | 3.81 |
CK-A80170 | 2450 | 420 | 150 | 170 | 40 | 12x5.0 | 80 | 42 | 12x3.3 | 6316 | 4.29 |
CK-A1250 | 31.5 | 1750 | 400 | 50 | 22 | 3x1.8 | 12 | 24 | 3x1.4 | 0.24 | |
CK-A1855 | 50 | 1575 | 350 | 55 | 22 | 4x2.5 | 18 | 24 | 4x1.8 | 0.28 | |
CK-A2060 | 63 | 1600 | 350 | 60 | 22 | 6x3.5 | 20 | 24 | 6x2.8 | 0.33 | |
CK-A2563 | 100 | 1260 | 350 | 63 | 24 | 6x3.5 | 25 | 26 | 6x2.8 | 0.37 | |
CK-A2563T | 140 | 1260 | 350 | 63 | 30 | 6x3.5 | 25 | 32 | 8x3.3 | 0.68 | |
CK-A2870 | 180 | 1050 | 300 | 70 | 30 | 8x4.0 | 28 | 32 | 8x3.3 | 0.6 | |
CK-A3080T | 340 | 875 | 200 | 80 | 30 | 8x4.0 | 30 | 32 | 8x3.3 | 0.75 | |
CK-A3585 | 400 | 815 | 200 | 85 | 30 | 8x4.0 | 35 | 32 | 8x3.3 | 1 | |
CK-A35100 | 780 | 875 | 200 | 100 | 32 | 10x5.0 | 35 | 34 | 10x3.3 | 1.34 | |
CK-A35140 | 1000 | 490 | 180 | 140 | 35 | 8x4.0 | 35 | 35 | 10x3.5 | 3.28 | |
CK-A40100 | 780 | 560 | 200 | 100 | 34 | 10x5.0 | 40 | 34 | 10x3.3 | 1.2 | |
CK-A40110 | 850 | 700 | 180 | 110 | 32 | 10x5.0 | 40 | 34 | 10x3.3 | 1.19 | |
CK-A50125 | 1000 | 490 | 180 | 125 | 36 | 14x5.5 | 50 | 35 | 14x3.8 | 2.21 | |
CK-A50130 | 1050 | 560 | 180 | 130 | 36 | 14x5.5 | 50 | 38 | 14x3.8 | 3.02 | |
CK-A55160 | 2000 | 455 | 150 | 160 | 52 | 16x6.0 | 55 | 55 | 16x4.3 | 6.96 | |
CK-A58130 | 1050 | 490 | 180 | 130 | 36 | 14x5.5 | 58 | 38 | 14x3.8 | 2.6 | |
CK-A60180 | 2000 | 420 | 140 | 180 | 52 | 18x6.0 | 60 | 52 | 18x4.4 | 7.4 |
Applications of one way clutch bearing:
One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox
Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.
Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
