Product Details
Place of Origin: China
Brand Name: SFT
Model Number: FE423Z
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Chrome Steel |
Bore Size: |
2 - 80 Mm |
Samples: |
Available |
Product Name: |
One Way Clutch |
Size: |
15*23*12mm |
Surface Hardness: |
HRC60-62 |
Material: |
Chrome Steel |
Bore Size: |
2 - 80 Mm |
Samples: |
Available |
Product Name: |
One Way Clutch |
Size: |
15*23*12mm |
Surface Hardness: |
HRC60-62 |

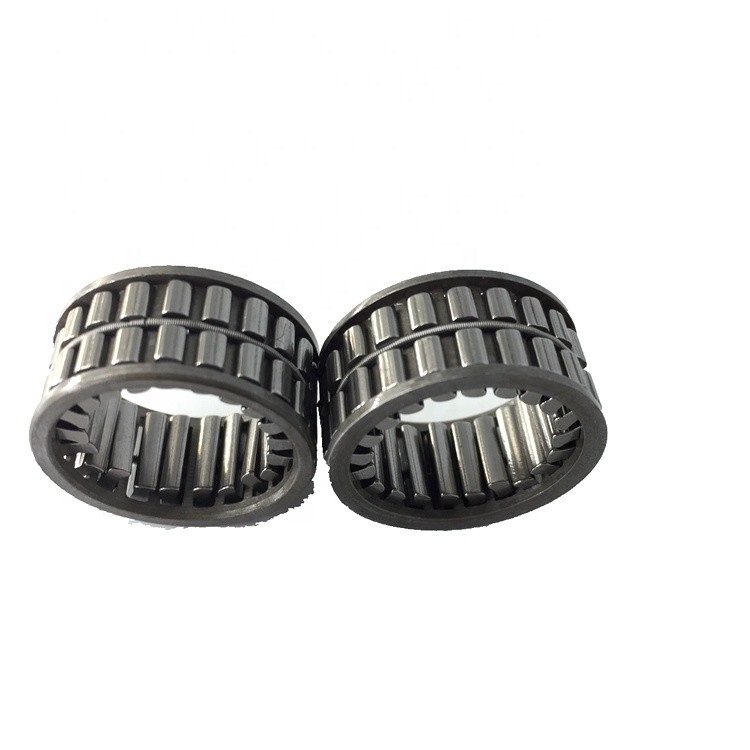

FE423Z 15x23x12mm Sprag Freewheels Type One Way Clutch Bearing
FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of
two speed operation (by independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper
selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.
| Dimensions | FE 400 | FE 400 Z | FE 400 Z2 | Idling speed Clutch | ||||
| [mm] | ||||||||
| dL | DL | Part Number | Torque | Part Number | Torque M | Part | Torque | nmax [RPM] |
| M | [N.m] | Number | M | |||||
| [N.m] | [N.m] | |||||||
| 2 | 10 | FE 410 Z2 | 0.3 | 10000 | ||||
| 4 | 12 | FE 412 Z | 3 | FE 412 Z2 | 1.8 | 10000 | ||
| 5 | 13 | FE 413 Z2 | 2.9 | 9000 | ||||
| 6 | 14 | FE 414 Z | 7 | FE 414 Z2 | 2.6 | 8500 | ||
| 8 | 16 | FE 416 Z | 12 | FE 416 Z2 | 7.6 | 7500 | ||
| 14 | 22 | FE 422 | 48 | FE 422 Z | 44 | FE 422 Z2 | 21 | 5300 |
| 15 | 23 | FE 423 | 55 | FE 423 Z | 48 | FE 423 Z2 | 24 | 5200 |
| 17 | 25 | FE 425 | 68 | FE 425 Z | 58 | FE 425 Z2 | 30 | 4700 |
| 19 | 27 | FE 427 | 80 | FE 427 Z | 66 | FE 427 Z2 | 36 | 4400 |
| 20 | 28 | FE 428 | 87 | FE 428 Z | 75 | FE 428 Z2 | 39 | 4200 |
| 22 | 30 | FE 430 | 101 | FE 430 Z | 87 | FE 430 Z2 | 46 | 4000 |
| 24 | 32 | FE 432 | 116 | FE 432 Z | 97 | FE 432 Z2 | 52 | 3700 |
| 25 | 33 | FE 433 | 124 | FE 433 Z | 107 | FE 433 Z2 | 56 | 3600 |
| 27 | 35 | FE 435 | 141 | FE 435 Z | 121 | FE 435 Z2 | 64 | 3400 |
| 29 | 37 | FE 437 | 158 | FE 437 Z | 137 | FE 437 Z2 | 71 | 3200 |
| 30 | 38 | FE 438 | 168 | FE 438 Z | 144 | FE 438 Z2 | 76 | 3100 |
| 34 | 42 | FE 442 | 207 | FE 442 Z | 178 | FE 442 Z2 | 93 | 2800 |
| 35 | 43 | FE 443 | 217 | FE 443 Z | 187 | FE 443 Z2 | 98 | 2700 |
| 40 | 48 | FE 448 | 272 | FE 448 Z | 235 | FE 448 Z2 | 122 | 2500 |
Applications of one way clutch bearing:
One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox
Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.
Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
