Product Details
Place of Origin: China
Brand Name: SFT
Model Number: BSEU40-20
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Torque Capacity: |
1440 Nm |
Seals Type: |
Sealed |
Samples: |
Available |
Product Name: |
One Way Clutch |
WEIGHT: |
3.781kg |
Surface Hardness: |
HRC60-62 |
Torque Capacity: |
1440 Nm |
Seals Type: |
Sealed |
Samples: |
Available |
Product Name: |
One Way Clutch |
WEIGHT: |
3.781kg |
Surface Hardness: |
HRC60-62 |

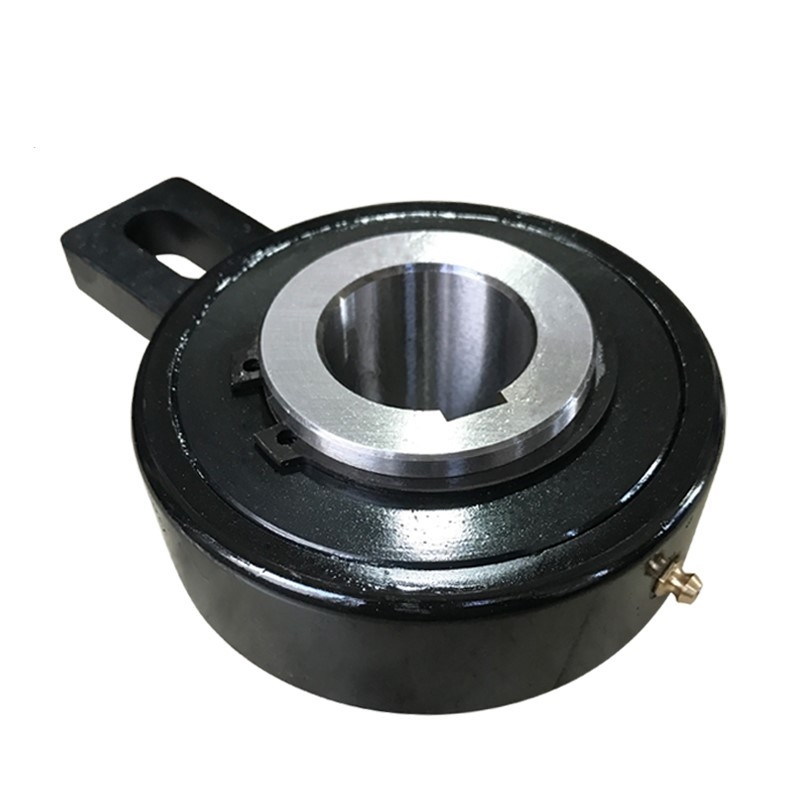

Clutch Bearing BSEU40-20 One-way Clutch
One way clutch also named back stop,overrunning clutch,can overrun freely in one direction of rotation.Can be widely applicated in general industrial transmission machines,printer,textile machinery...etc.
CSK type-Bearing/freewheel.Dimensions identical to ball bearing series 62
As type-Roller type freewheel.Mounting dimensions similar to bearing series 62
ASNU type-Roller type freewheel.Outer race connection via press fit and/or face key
AA type-Roller type freewheel.Outer race connection via through screws
AE type-Oller type freewheel.Outer race connection via press fit and/or face key
DC type-Double cage sprag type freewheel.Delivered without inner and outer race
KI type-Mini freewheel delivered without outer race
GFKtype-Bearing/freewheel.Dimensions identical to ball bearing series 59
Introduction
BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the rotation is required. You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation. The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.
Different Sizes For Your Reference
Model |
Bore Size | Torque Capacity (N·m) |
Max. Overrunning (r/min) Inner Race |
D |
D2 |
L1 |
L |
B |
F |
b |
N |
E |
J |
Min kg |
kg |
|
| Dia (H7) |
Keyway |
|||||||||||||||
| BSEU25 | 20 | 6×2.8 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | 0.999 |
0.948 |
| BSEU25 | 25 | 8×3.3 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
| BSEU40 | 20 | 6×2.8 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | 3.781 |
3.363 |
| BSEU40 | 25 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40 | 30 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40 | 35 | 10×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40 | 40 | 12×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU70 | 45 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | 7.607 |
6.541 |
| BSEU70 | 50 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | ||
| BSEU70 | 55 | 16×4.3 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70 | 60 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70 | 65 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70 | 70 | 20×4.9 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU90 | 75 | 20×4.9 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | 10.046 |
9.265 |
| BSEU90 | 80 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
| BSEU90 | 85 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
| BSEU90 | 90 | 25×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
Applications of one way clutch bearing:
One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox
Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.
Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
