Chrome Steel Sprag Cam One Way Clutch Bearings DC2776-N Freewheel

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: DC2776-N

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Sprag Cam One Way Clutch Bearings

,

Chrome Steel One Way Clutch Bearings

Material:
Chrome Steel
Color:
Black
Samples:
Available
Product Name:
One Way Clutch
Application:
Machinery
Surface Hardness:
HRC60-62
Material:
Chrome Steel
Color:
Black
Samples:
Available
Product Name:
One Way Clutch
Application:
Machinery
Surface Hardness:
HRC60-62
Chrome Steel Sprag Cam One Way Clutch Bearings DC2776-N Freewheel

Chrome Steel One Way Sprag Cam Clutch Bearing DC2776-N Freewheel



Brief Introduction of one way clutch bearing:

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design

providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N

accepts all types of lubricants currently used in the power transmission equipement.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain

width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages.

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.

Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between

races: 0,007 mm for 25 mm width.

Dimensions and Capacities of one way clutch bearing:

DC8729A-N Overrunning One Way Sprag Clutch Bearing for Sale DC 8729A-N


Product name



Size







  Overrunning speeds   Sprag space

NO.

of clips

No.

of sprags

Weight
TKN1) nimax2) namax3) Øa+0.008
-0.005
Øc± 0.013 emin Ødmin Øbmax
[Nm] [min-1] [min -1] [mm] [mm] [mm] [mm] [mm] [mm]     [kg]
One way clutch DC2222G-N 63 8600 4300 22.225 38.885 8.33±0.075 10 50 15 12 0.03
One way clutch DC2776-N 119 6900 3400 27.762 44.422 8.33±0.075 13.5 58 18 14 0.055
One way clutch DC3034-N 124 6300 3100 30.34 47 8.33±0.075 13.5 62 20 14 0.06
One way clutch DC3175(3C)-N 159 6000 3000 31.75 48.41 8.33±0.075 13.5 63 21 3 16 0.06
One way clutch DC3809A-N 275 5000 2500 38.092 54.752 8.33±0.075 16 71 25 18 0.085
One way clutch DC4127(3C)-N 224 4600 2300 41.275 57.935 8.33±0.075 13.5 75 27 3 18 0.09
One way clutch DC4445A-N 363 4300 2100 44.45 61.11 8.33±0.1 16 79 29 20 0.095
One way clutch DC4972(4C)-N 306 3800 1900 49.721 66.381 8.33±0.1 13.5 86 33 4 22 0.1
One way clutch DC5476A-N 525 3500 1700 54.765 71.425 8.33±0.1 16 92 36 24 0.11
One way clutch DC5476A(4C)-N 525 3500 1700 54.765 71.425 8.33±0.1 16 92 36 4 24 0.13
One way clutch DC5476B(4C)-N 769 3500 1700 54.765 71.425 8.33±0.1 21 92 36 4 24 0.18
One way clutch DC5476C(4C)-N 990 3500 1700 54.765 71.425 8.33±0.1 25.4 92 36 4 24 0.2
One way clutch DC5776A-N 604 3300 1600 57.76 74.42 8.33±0.1 16 98 38 26 0.11
One way clutch DC6334B-N 806 3000 1500 63.34 80 8.33±0.1 21 104 42 26 0.175
One way clutch DC7221(5C)-N 675 2600 1300 72.217 88.877 8.33±0.1 13.5 115 48 5 30 0.14
One way clutch DC7221B-N 1279 2600 1300 72.217 88.877 8.33±0.1 21 115 48 30 0.185
One way clutch DC7221B(5C)-N 1279 2600 1300 72.217 88.877 8.33±0.1 21 115 48 5 30 0.21
One way clutch DC7969C(5C)-N 2038 2400 1200 79.698 96.358 8.33±0.1 25.4 124 53 5 34 0.28
One way clutch DC8334C-N 2055 2300 1100 83.34 100.000 8.33±0.1 25.4 132 55 34 0.27
One way clutch DC8729A-N 1250 2200 1100 87.29 103.96 8.33±0.1 16 134 58 34 0.165
One way clutch DC10323A(5C)*-N 1612 1800 900 103.231** 119.891 8.33±0.1 16 155 68 5 40 0.205
One way clutch DC12334C*-N 4800 1500 750 123.340** 140.000 8.33±0.1 25.4 184 80 50 0.4
One way clutch DC12388C(11C) 4875 1500 750 123.881 142.88 9.50±0.1 25.4 186 80 11 44 0.4

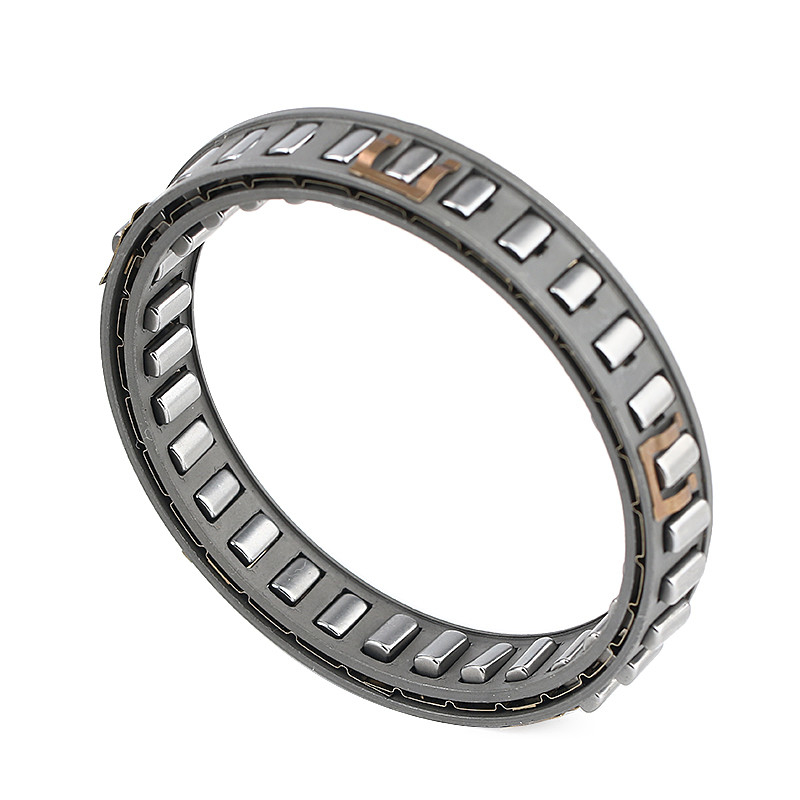

Chrome Steel Sprag Cam One Way Clutch Bearings DC2776-N Freewheel 1

Chrome Steel Sprag Cam One Way Clutch Bearings DC2776-N Freewheel 2

Chrome Steel Sprag Cam One Way Clutch Bearings DC2776-N Freewheel 3

Applications of one way clutch bearing DC2776-N:

One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox

Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.

Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
