Home > products > Angular Contact Ball Bearing > Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel

Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 7203B

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

7203B Angular Contact Ball Bearing

,

Electric Motors Angular Contact Ball Bearing

,

Chrome Steel Angular Contact Ball Bearing

Color:
Black
Structure:
Angular Contact
Type:
Ball
Bore Size:
40 Mm, 0 - 20 Mm, 5 - 30 Mm, 2 - 560 Mm, 10 - 110 Mm
Sample:
Avaliable, Offered, Free
Vibration:
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2
Color:
Black
Structure:
Angular Contact
Type:
Ball
Bore Size:
40 Mm, 0 - 20 Mm, 5 - 30 Mm, 2 - 560 Mm, 10 - 110 Mm
Sample:
Avaliable, Offered, Free
Vibration:
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2
Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel

Double Angular contact ball Bearing Chrome steel 7203B



Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis.This means that they are designed to accommodate combined loads,i.e.simultaneously acting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane,along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.


Feature of Angular contact ball bearing:

Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.

Expanded options include special lubricants, cage materials, preloads and coatings for additional corrosion resistance.


Applications of Angular contact ball bearing:
electric motors, automotive applications, home appliances, industrial equipment.

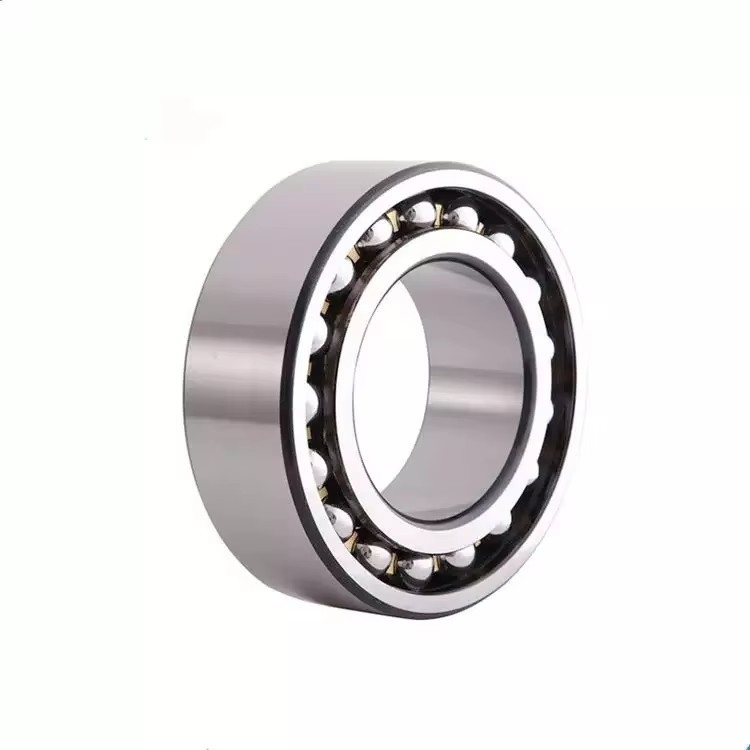

Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel 0

Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel 1

Electric Motors Double Angular Contact Ball Bearing 7203B Chrome Steel 2

Single Row Angular Contact Ball Bearings

d 10~20mm d 25~40mm d 45~55mm d 60~70mm
7900C 7905C 7909C 7912C
7000 7005 ACH009C ACH912C
7000B 7005B 7009 ACH012C
7000C 7005C 7009B 7012
7200 7205 7009C 7012B
7200B 7205B 7209 7012C
7200C 7205C 7209B 7212
7300 7305 7209C 7212B
7901C 7305B 7309 7212C
7001 7305C 7309B 7312
7001B 7405 7309C 7312B
7001C 7405B 7409 7312C
7201 7906C 7409B 7412
7201B ACH006C 7910C 7412B
7201C 7006 ACH910C 7913C
7301 7006B ACH010C ACH913C
7902C 7006C 7010 ACH013C
7002 7206 7010B 7013
7002B 7206B 7010C 7013B
7002C 7206C 7210 7013C
7202 7306 7210B 7213
7202B 7306B 7210C 7213B
7202C 7306C 7310 7213C
7302 7406 7310B 7313
7903C 7406B 7310C 7313B
7003 7907C 7410 7313C
7003B ACH007C 7410B 7413
7003C 7007 7911C 7413B
7203 7007B ACH911C 7914C
7203B 7007C ACH011C ACH914C
7203C 7207 7011 ACH014C
7303 7207B 7011B 7014
7303B 7207C 7011C 7014B
7303C 7307 7211 7014C
7904C 7307B 7211B 7214
7004 7307C 7211C 7214B
7004B 7407 7311 7214C
7004C 7407B 7311B 7314
7204 7908C 7311C 7314B
7204B ACH008C 7411 7314C
7204C 7008 7411B 7414
7304 7008B   7414B
7304B 7008C
7304C 7208
7404 7208B
7404B 7208C
  7308
  7308B
  7308C
  7408
  7408B







Types of Angular contact ball bearing:
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1. Single-row angular contact ball bearings
Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.
2. Double-row angular contact ball bearings
This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.
3. Four-point angular contact ball bearings
The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.
