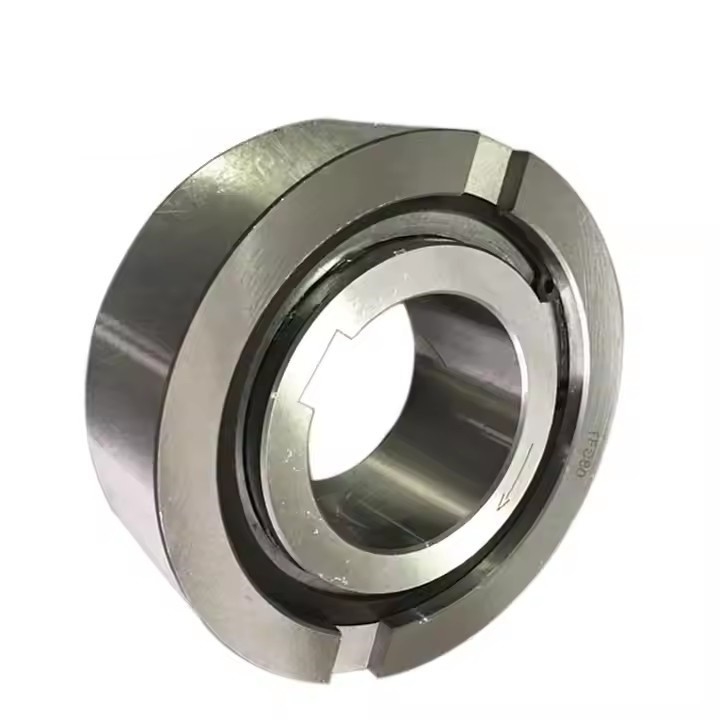

TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: TFS40

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

TFS40 One Way Bearings

,

Cam Clutch One Way Bearings

,

TFS40 Backstop Clutch

Bore Size:
40 - 40.001 Mm
Precision Rating:
P0
Outside Diameter:
35 - 80 Mm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
WEIGHT:
1.300 Kg
Type:
ROLLER TYPE / SPRAG TYPE
Bore Size:
40 - 40.001 Mm
Precision Rating:
P0
Outside Diameter:
35 - 80 Mm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
WEIGHT:
1.300 Kg
Type:
ROLLER TYPE / SPRAG TYPE
TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40



 TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40

Product Description

 Features of TFS one way bearings :

The outer race of the TFS Series Cam Clutch is designed for press fit installation to the housing. Correct interference dimensions of the outer race must be maintained to obtain maximum clutch performance.

Internal Housing Diameter Tolerance: H7

Shaft Tolerance: h7



SPECIFICATIONS



Product name

one way bearings

Model

TFS40

Material

Chrome steel GCr15

Inner diameter

40mm

Outer diameter

90mm

Torque capacity

607Nm

Weight

1050g

Thickness

33mm

Application

 Textile machine, fans, ventilators, printing machine

Package

Carton Box / Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union,Paypal

Delivery time

2-4 days for the sample, 7 days for big order



 Catalogue of tfs one way cam clutch for your choice

TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40



Model Torque Max.Overrunning Drag Bore Size Keyway A B C D E F G H Weight
Capacity Inner Race Outer Race    Torque
(N·m) (r/min) (r/min) (N·m) (H7)                 (g)
TFS12 18 4500 2300 0.04 12 4x1.8 13 35 30 18 0.6 0.3 4 1.4 68
TFS15 28 3500 1800 0.06 15 5x1.2 18 42 36 22 0.8 0.3 5 1.8 120
TFS17 50 3200 1600 0.11 17 5x1.2 19 47 38 22 1.2 0.8 5 2.3 150
TFS20 84 2500 1300 0.18 20 6x1.6 21 52 45 27 1.2 0.8 6 2.3 220
TFS25 128 2000 1000 0.19 25 8x2.0 24 62 52 35 1.2 0.8 8 2.8 360
TFS30 200 1600 800 0.21 30 8x2.0 27 72 62 40 1.8 1 10 2.5 530
TFS35 475 1400 700 0.42 35 10x2.4 31 80 70 48 1.8 1 12 3.5 790
TFS40 607 1300 650 0.46 40 12x2.2 33 90 78 54.5 1.8 1 12 4.1 1050
TFS45 756 1100 550 0.56 45 14x2.1 36 100 85.3 59 1.8 1 14 4.6 1370
TFS50 1124 1000 500 0.6 50 14x2.1 40 110 92 65 1.8 1 14 5.6 1900
TFS60 1975 840 420 0.87 60 18x2.3 46 130 110 84 2.6 1.5 18 5.5 3110
TFS70 2514 750 380 0.91 70 20x2.7 51 150 125 91 2.6 1.5 20 6.9 4390
TFS80 3924 670 340 1.22 80 22x3.1 58 170 140 100 2.6 1.5 20 7.5 6440
