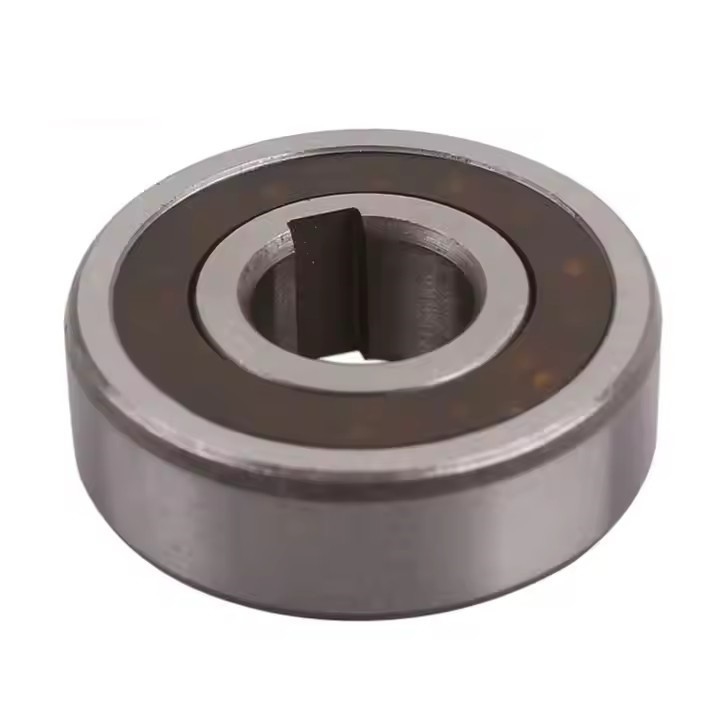

One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: UKC 15 ZZ

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

ZZ Washer One Way Clutch

,

CSK15P One Way Clutch

,

UKC 15 One Way Clutch

Torque (Nm):
16.9
Height (mm):
11
Outer Dia.:
71.42mm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
WEIGHT:
0.06
Seals Type:
Non-sealed
Torque (Nm):
16.9
Height (mm):
11
Outer Dia.:
71.42mm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
WEIGHT:
0.06
Seals Type:
Non-sealed
One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel

One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel

Product Description

Data Sheet

Item UKC 15 ZZ
Material GCr15
Inner dia. 15 mm
Outer dia. 35 mm
Width 11 mm
Weight 0.06 kg
Torque 16.9 Nm
Package Singer package or as your requirement
Port Shanghai:Ningbo
Delivery time 10-20 days





Introduction

The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with n6 keying tolerance.



Types UKC..ZZ and UKCC..ZZ are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

The use of additional “nylos” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.



In addition to the basic UK..ZZ model, type UKC..ZZ features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.



UKCC..ZZ features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.



Different Sizes For Your Reference

One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel

Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
UKC..ZZ d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 4 1.3 6.1 2.77 0.04 0.7
15 6202 16.9 8400 35 11 5 1.2 7.4 3.42 0.06 0.9
17 6203 30.6 7350 40 12 5 1.2 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 6 1.6 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 8 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 8 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 10 2.4 12.6 7.28 0.3 5.8
40 325 3000 80 22 12 3.3 15.54 12.25 0.5 7
