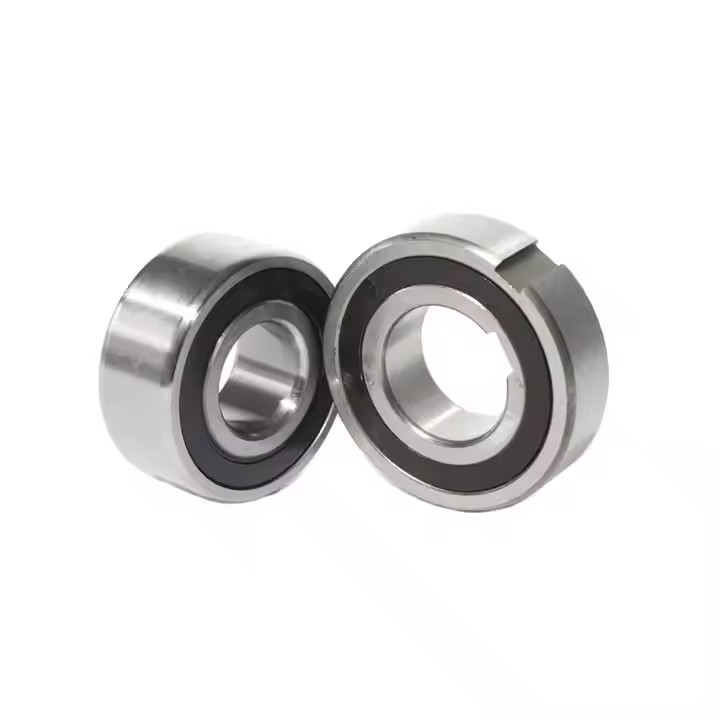

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch With Keyway

Name: Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch With Keyway
Brand: Shaanxi Fortune Industries Co.ltd
SKU: CSK17 P/PP/2RS
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: CSK17 P/PP/2RS

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                One Direction Freewheel Bearing Sprag, Freewheel Clutch Bearing Sprag, CSK 12/17/20 Freewheel Bearing Sprag


Inner Diameter:	56.12 Mm	Torque Range (Nm):	1050 Nm
Outer Diameter:	100 Mm	Applicable Industries:	CNC Machine, PCB Processing Machinery, Etc
WEIGHT:	0.5 Kg	Type:	Sprag

Inner Diameter:	56.12 Mm
Torque Range (Nm):	1050 Nm
Outer Diameter:	100 Mm
Applicable Industries:	CNC Machine, PCB Processing Machinery, Etc
WEIGHT:	0.5 Kg
Type:	Sprag

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch With Keyway

Product Description

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch with keyway

Technical Datas

Item	CSK P/PP/2RS
Material	GCr15
Bore dia.	12-40mm
Outer dia.	32-80mm
Weight	0.04-0.6kg
Package	Carton box, wooden box or as your requirements

Features of CSK CSK-2RS

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with “formchromed” sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

Dimensions and Capacities

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch with keyway

Dimensions and Capacities

Type	Size	Bearing series					Bearing loads		Weight	Drag torque
Type	Size	Bearing series					dynamic	static	Weight	Drag torque
CSK(KK)	d		TKN1)	N max	D	L	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	8*	–	2.5	15000	22	9	3.28	0.86	0.015	0.5
	12	6201	9.3	10000	32	10	6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	15.54	12.25	0.5	7
CSK..2RS	8**		2.5	15000	22	9	3.28	0.86	0.015	0.8
	12	–	9.3	10000	32	14	6.1	2.77	0.05	3
	15		17	8400	35	16	7.4	3.42	0.07	4
	17		30	7350	40	17	7.9	3.8	0.09	5.6
	20		50	6000	47	19	9.4	4.46	0.145	6
	25		85	5200	52	20	10.7	5.46	0.175	6
	30		138	4200	62	21	11.7	6.45	0.27	7.5
	35		175	3600	72	22	12.6	7.28	0.4	8.2
	40	–	325	3000	80	27	15.54	12.25	0.6	10

Note:

1) T max = 2 × T KN
*) One Z seal on the bearing side only. Looking from this side, the outer race runs free in the counterclockwise direction
**) Only one RS seal on the ball bearing side looking from this side, the outer race runs free in the counterclock-wise direction

Mounting

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch with keyway

Features of CSK CSK-2RS

Freewheel Bearing Sprag One Direction CSK 12/17/20 Freewheel Clutch with keyway

Dimension and Capacity

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
	Size								dynamic	static		Drag torque
	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
CSK..P	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10

Notes:

1) T max = 2 × T KN
2) Keyway to DIN 6885.3
Size 40 keyway to DIN 6885.1
