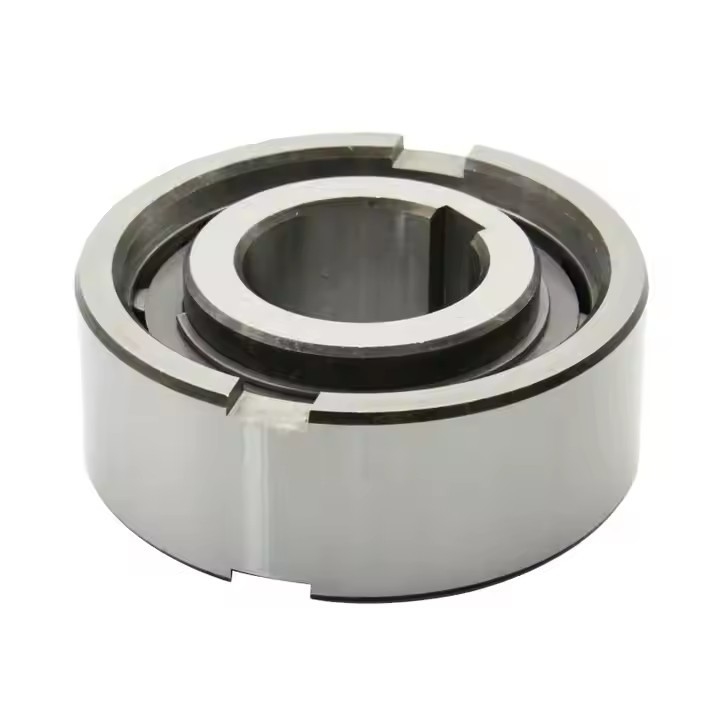

ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier

Name: ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier
Brand: Shaanxi Fortune Industries Co.ltd
SKU: ASNU60
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: ASNU60

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                ASNU60 Freewheel Overrunning Clutch, NFS60 Freewheel Overrunning Clutch


Size:	30*72mm	Precision Rating:	P0
Material:	GCr15	Weight:	0.54 Kg
Torque:	255Nm

Size:	30*72mm
Precision Rating:	P0
Material:	GCr15
Weight:	0.54 Kg
Torque:	255Nm

ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier

Product Description

NFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load. Lubrication and sealing must be also provided by installation.

Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fitin a H7 housing.

Model	ASNU30
Material	Chrome steel GCr15
Inner diameter	30mm
Outer diameter	72mm
Torque capacity	255Nm
Weight	0.54kg
Application	Textile machine, fans, ventilators, printing machine
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier

Dimensions and Capacities

Type	Size		Overrunning Speeds										Weight	Drag torque
ASNU (NFS)	dH7	TKN1)	nimax2)	namax3)	Dn6	D5	L	b	t	s	e	f		TR
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[Ncm]
	8	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.07	1.6
	12	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.06	1.6
	15	30	2400	3600	42	37	18	5	1.8	2.4	0.8	0.3	0.11	1.9
	17	49	2300	3400	47	40	19	5	2.3	2.4	1.2	0.8	0.15	1.9
	20	78	2100	3100	52	42	21	6	2.3	2.4	1.2	0.8	0.19	1.9
	25	125	1700	2600	62	51	24	8	2.8	2.4	1.2	0.8	0.38	5.6
	30	255	1400	2200	72	60	27	10	2.5	2.4	1.8	1	0.54	14
	35	383	1200	1900	80	70	31	12	3.5	2.4	1.8	1	0.74	16
	40	538	1100	1700	90	78	33	12	4.1	2.5	1.8	1	0.92	38
	45	780	1000	1600	100	85	36	14	4.6	2.5	1.8	1	1.31	43
	50	1013	850	1350	110	92	40	14	5.6	2.5	1.8	1	1.74	55
	60	1825	750	1050	130	110	46	18	5.5	3.6	2.6	1.5	2.77	110
	70	2300	600	950	150	125	51	20	6.9	3.6	2.6	1.5	4.16	140
	80	3275	550	850	170	140	58	20	7.5	3.6	2.6	1.5	6.09	180
	90	5325	500	750	190	160	64	20	8	3.6	2.6	2	8.2	230
	100	7250	450	680	215	175	73	24	8.5	3.6	2.6	2	12.6	380
	120	13500	370	550	260	215	86	28	10	3.6	2.6	2.5	22	650
	150	26625	300	460	320	260	108	32	12	3.6	3.6	2.5	42	1000
	200	44500	230	350	420	350	138	45	16	7.6	3.6	3	93	2000

ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier 1

ASNU 60 ASNU60 NFS60 Freewheel Overrunning Clutch One Way Clutch Bearing Supplier 2
