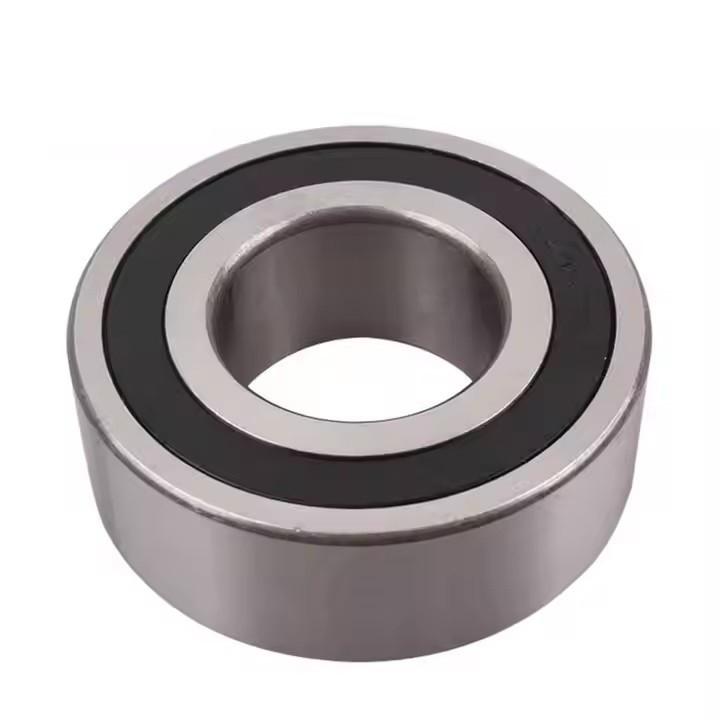

Name: UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25
Brand: Shaanxi Fortune Industries Co.ltd
SKU: UK 25 ZZ
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: UK 25 ZZ

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                25X52X15 CSK25 Freewheels, One Way Sprag Bearing Clutch Freewheels, UK 25 ZZ Freewheels


Surface Hardness:	HRC60-62	Torque:	85N
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other	Width:	15mm
WEIGHT:	0.14kgs	Seals Type:	ZZ 2RS OPEN

Surface Hardness:	HRC60-62
Torque:	85N
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other
Width:	15mm
WEIGHT:	0.14kgs
Seals Type:	ZZ 2RS OPEN

UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25

UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15

Product Description

Product Description	UK Series is sprag type freewheel integrated into 62 series ball bearing
Product Type	UK...ZZ : Basic type
	UK...2RS: with 2RS lip seals
	UKC..ZZ: With inner keyway
	UKCC...ZZ: with inner and outer keyway
	UKC...2RS: with 2RS lip seals and inner keyway
	UKCC...2RS: with 2RS lip seals, both inner and outer keyway.
Package	Each item is packed in small white box---packed in 19x14.5x7.5cm carton box --- then in 29x48x22cm box
Delivery time	1 day for sample, big quantity 5-7 days

SPECIFICATION FOR CSK40
Model	UK 25 ZZ
Material	GCr15
Inner diameter	25mm
Outer diameter	52mm
Thickness	15mm
Torque capacity	85Nm
Weight	0.14kg
Structure	Sprag type
Application	Textile machine, fans, ventilators, printing machine
Payment terms	TT. L/C, D/A,D/P,Western Union

Catalogue of sprag bearing clutch for your choice

Tips: All the UK...ZZversions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25 0

DATA SHEET FOR UK BEARING
Type	Size	Bearing series					Bearing loads		Weight	Drag torque
Type	Size	Bearing series					dynamic	static	Weight	Drag torque
UK...ZZ	d		TKN1)	N max	D	L	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	8*	–	2.5	15000	22	9	3.28	0.86	0.015	0.5
	12	6201	9.3	10000	32	10	6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	15.54	12.25	0.5	7
UK..2RS	8**		2.5	15000	22	9	3.28	0.86	0.015	0.8
	12	–	9.3	10000	32	14	6.1	2.77	0.05	3
	15		17	8400	35	16	7.4	3.42	0.07	4
	17		30	7350	40	17	7.9	3.8	0.09	5.6
	20		50	6000	47	19	9.4	4.46	0.145	6
	25		85	5200	52	20	10.7	5.46	0.175	6
	30		138	4200	62	21	11.7	6.45	0.27	7.5
	35		175	3600	72	22	12.6	7.28	0.4	8.2
	40	–	325	3000	80	27	15.54	12.25	0.6	10
