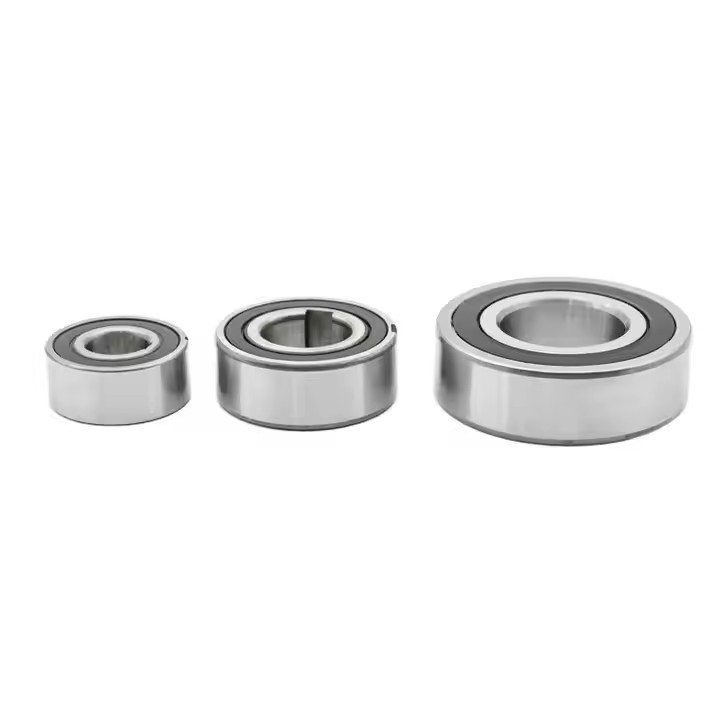

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

Name: UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings
Brand: Shaanxi Fortune Industries Co.ltd
SKU: UKCC 40 ZZ
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: UKCC 40 ZZ

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                GCr15 Backstop Bearings, One Way Sprag Clutch Backstop Bearings, UKCC Backstop Bearings


Overrunning Speed:	6000r/min	Torque:	85N
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other	OD:	80mm
WEIGHT:	0.5kgs	Seals Type:	Sealed
ID:	40mm

Overrunning Speed:	6000r/min
Torque:	85N
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other
OD:	80mm
WEIGHT:	0.5kgs
Seals Type:	Sealed
ID:	40mm

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

Product Description

The Uk..zz series is a freewheel incorporating a 62..series bearing.

the self-centring freewheels are already grease-lubricated and come with dust-proof protectio

The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with n6 keying tolerance.
The UKCC..ZZ model is equipped with a keyway on the inner and outer race, the tolerances are h6 for the shaft and h6 for the rigid seat.

Product name	backstop bearings
Model	UKCC 40 ZZ
Material	GCr15
Inner diameter	40mm
Outer diameter	80mm
Thickness	22mm
Torque capacity	325Nm
Weight	0.5kg
Structure	Sprag type
Application	Textile machine, fans, ventilators, printing machine
Package	Tube / Carton Box, Pallet
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Catalogue of backstop bearings for your choice

Tips: All the UK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
Type	Size	Bearing series							dynamic	static		Drag torque
UKC...ZZ	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
UKCC...ZZ	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
	45	_	218	1600	85	19	12	2.5	18.36	15.35	0.44	9.3
	50	_	230	1500	90	20	12	2.5	19.53	17.68	0.49
UKC...2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10
