Product Details
Place of Origin: China
Brand Name: SFT
Model Number: UB207
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Model Number: |
UCPX05-14 |
Bearing Material: |
100% Chrome Steel/GCr15 |
Feature: |
Set Screw Locking,heavy Duty |
Lubrication: |
Oil Or Grease |
Cage: |
Steel, Brass, Nylon |
Samples: |
Available |
Model Number: |
UCPX05-14 |
Bearing Material: |
100% Chrome Steel/GCr15 |
Feature: |
Set Screw Locking,heavy Duty |
Lubrication: |
Oil Or Grease |
Cage: |
Steel, Brass, Nylon |
Samples: |
Available |

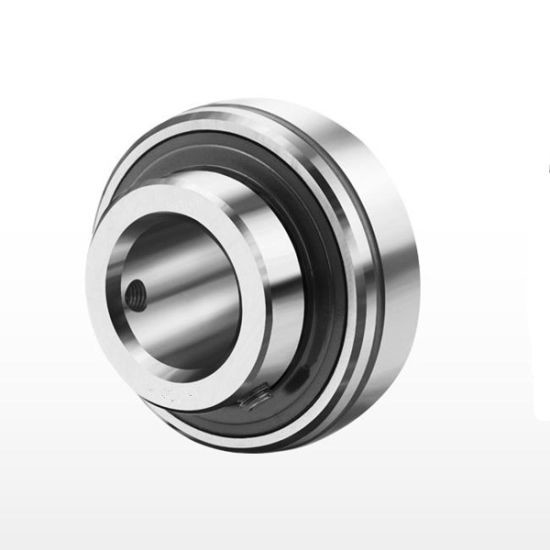

pillow block bearing UB207 bearing for Agricultural machinery
UCPX05-14 Pillow block, whose cap and base can be separated, mainly bear radial load. UCPX05-14 fits for self-aligning spherical roller bearings or self-aligning spherical ball bearing. UCPX05-14 are used in metallurgy, mining, conveyor systems, environment protecting and other industry. The main model No is SN series, SD series, SNU series, SNL series, 1500, 1600 series, Z2500Y, Z2600Y series, GZ2, GZ4 series and so on. The main difference is load and seal type (oil felt, TG, U-lock, TS ). They has good heat conduction, and also can simplify mounting and dismounting procedures, improve sealing efficiency etc.
Application:
Splitting machine, towline, soil tillage equipment, stainless steel reactor, etching machine, low temperature freezers, forklifts, construction materials, plastic welding machine, rubber cutting machines, weaving machines, rolling mills, radial drilling machine, feeding machine, pneumatic mixer, crushing equipment, leak-free pumps, red version of the machine, etc.
Plummer block housing units:Cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
| Specifications: | |
| Mounting | Two-Bolt Base |
| Bore diameter | 25-40 mm |
| Overall length | 52-80 mm |
| Housing material | Cast Iron |
| Locking device | Set Screw |
| Lubrication type | Lubrication Fitting |
| Seal type | Contact Seal with Flinger |
| Bore type | Round |
| Duty type | Light Duty |
UCP series pillow block housing bearing size
| Model NO. | Length(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| UCP201 | 127 | 38 | 60.7 | 0.76 |
| UCP202 | 127 | 38 | 60.7 | 0.74 |
| UCP203 | 127 | 38 | 60.7 | 0.72 |
| UCP204 | 127 | 38 | 64 | 0.7 |
| UCP205 | 140 | 38 | 69.5 | 0.76 |
| UCP206 | 160 | 44 | 82 | 1.25 |
| UCP207 | 167 | 48 | 92 | 1.55 |
| UCP208 | 180 | 52 | 98 | 1.9 |
| UCP209 | 189 | 54 | 106 | 2.2 |
| UCP210 | 204 | 57 | 112 | 2.75 |
| UCP211 | 217 | 60 | 125 | 3.3 |
| UCP212 | 238 | 66 | 137 | 4.7 |
| UCP213 | 262 | 70 | 149 | 5.6 |
| UCP214 | 266 | 72 | 155 | 6.6 |
