Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 2205K
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Brand: |
SFT |
Package: |
Polybag Carton Pallet |
Lubricated: |
Oil Grease |
Feature: |
Long Life |
Cage: |
Nylon Or Steel |
Vibration Value: |
Z1 Z2 Z3 |
Brand: |
SFT |
Package: |
Polybag Carton Pallet |
Lubricated: |
Oil Grease |
Feature: |
Long Life |
Cage: |
Nylon Or Steel |
Vibration Value: |
Z1 Z2 Z3 |

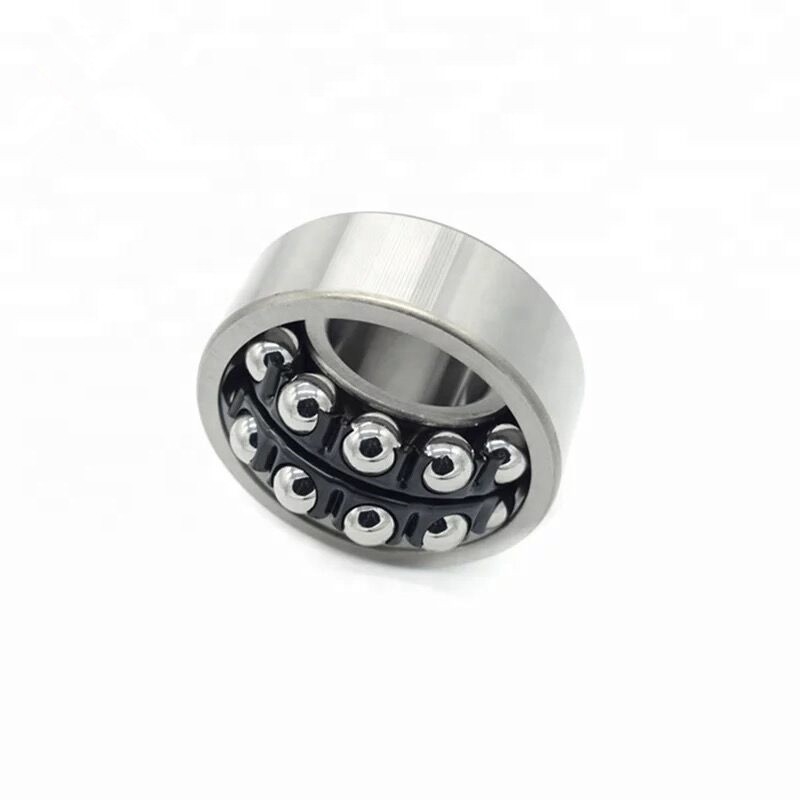

2205K 2205 Adjustable Machinery Self aligning Ball Bearing
Self-aligning ball bearing is a kind of double-row bearing with spherical outer ring raceway.It can be for the error,axial deformation and bearing and bearing seat deformation compensation,which allow axis around the center of the bearing deflection of 4 degree,the sealing self-aligning ball bearing can be compensation in 1.5 degree..The inner hole of the self-aligning ball bearing can be cylindrical,conical,bearing cannot be split.Basic types can be divided into 12,13,22 and 23 series.bearing inner hole taper of 1:12(suffix is K) can be installed directly to the conical shaft,can also be through a fixing sleeve is arranged on the cylinder axis.Also,there are both ends with sealing cover(suffix is 2RS)
1. Sealed form: open (no cover), rubber seal (2RS).
2. Cage: steel cage, nylon cage, brass cage.
3. Quality grade: ABEC-1,ABEC-3/Z1V1,Z2V2
4. Type: 1200,1300,2200,2300 series with cylindrical bore and tapered bore.
5. Packing: anti-rust oil paper or single color box +outer carton+wooden pallets.
The following is about self-aligning bearing 2205 dimension and structure related, I hope which can help you understand better.
|
Item |
Self-aligning Ball Bearing 2205 |
|
Brand: |
SFT |
|
ID: |
25mm |
|
OD: |
52mm |
|
Width |
18mm |
|
Packing |
Industry & Single Packing |
|
Delivery |
15-20 Days |
|
Payment |
L/C, T/T, Paypal |
|
MOQ |
50 Piece |
|
Advantage |
Competitive Prices with Excellent Quality |
|
Precison Grade |
ABEC-1 ,ABEC-3,ABEC-5 |
|
Noise Level |
Z1 Z2 Z3 |
|
Vibration Level |
V1 V2 V3 |
|
Seal Type |
Open 2RS |
|
Bearing Type
|
Domestic new model
|
Domestic old model
|
ID
mm |
OD
mm |
WIDTH
mm
|
Cr
KN |
COr
KN |
Grease speed
|
Oil lubrication speed
|
|
Self-aligning ball bearing
|
1204K+H204
|
11204
|
20
|
47
|
40
|
9.9
|
2.6
|
14000
|
17000
|
|
Self-aligning ball bearing
|
1205K+H205
|
11205
|
25
|
52
|
44
|
12.1
|
3.3
|
12000
|
14000
|
|
Self-aligning ball bearing
|
1206K+H206
|
11206
|
30
|
62
|
48
|
15.6
|
4.65
|
9900
|
12000
|
|
Self-aligning ball bearing
|
1207K+H207
|
11207
|
35
|
72
|
52
|
15.8
|
5.1
|
8500
|
10000
|
|
Self-aligning ball bearing
|
1208K+H208
|
11208
|
40
|
80
|
56
|
19.2
|
6.5
|
7500
|
9200
|
|
Self-aligning ball bearing
|
1209K+H209
|
11209
|
45
|
85
|
58
|
21.8
|
7.35
|
7000
|
8500
|
|
Self-aligning ball bearing
|
1210K+H210
|
11210
|
50
|
90
|
58
|
22.7
|
8.1
|
6500
|
7900
|
|
Self-aligning ball bearing
|
1211K+H211
|
11211
|
55
|
100
|
60
|
26.8
|
10
|
5800
|
7100
|
|
Self-aligning ball bearing
|
1212K+H212
|
11212
|
60
|
110
|
62
|
30.2
|
11.5
|
5200
|
6400
|
