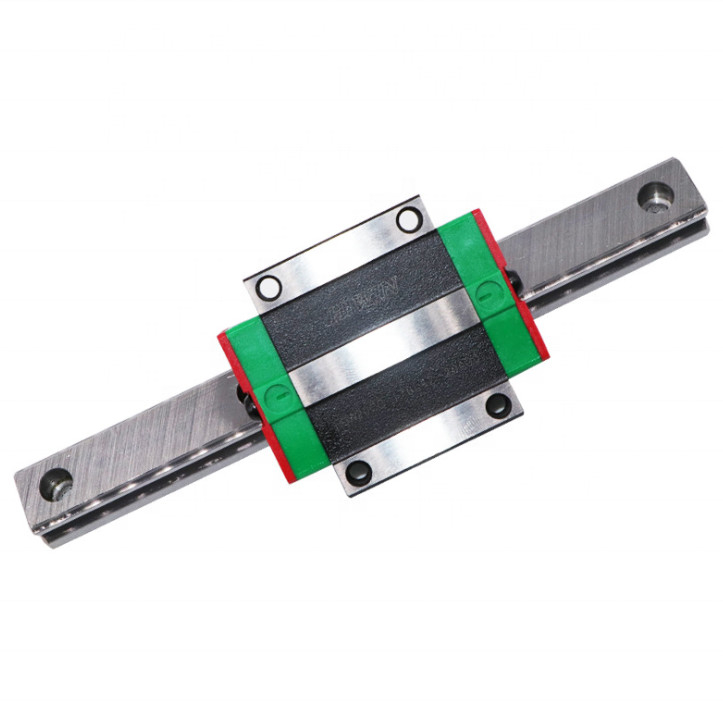

HGR15 linear roller guideway rail with carriage block HGW15CC
1. Grade: C,H,P
2. Size: 15mm,20mm,25mm,30mm,35mm,45mm
3. Standard Model :HGR15,HGR20,HGR25,HGR30,HGR35,HGR45
4. Certification: ISO9001
|
Product Name
|
HGR15 linear roller guideway rail cnc linear bearing guides with carriage block HGW15CC HGH15CA
|
|
Material
|
Chrome steel/Bearing steel/GCR15
|
|
Color
|
Green+Red/Black/Blue
|
|
Grade
|
C,H,P
|
|
Feature
|
The same as HIWIN,100% Interchangeable
|
|
Types of block
|
Flange/Square
|
|
Length of linear guide rail
|
100mm-4000mm,any length will be available
|
|
Usage
|
Textile machinery
|
Features of linear guideway:
(1) Self-aligning capability By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surfaceirregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity
